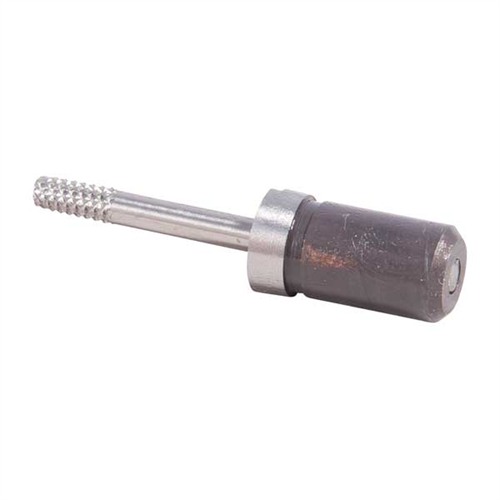

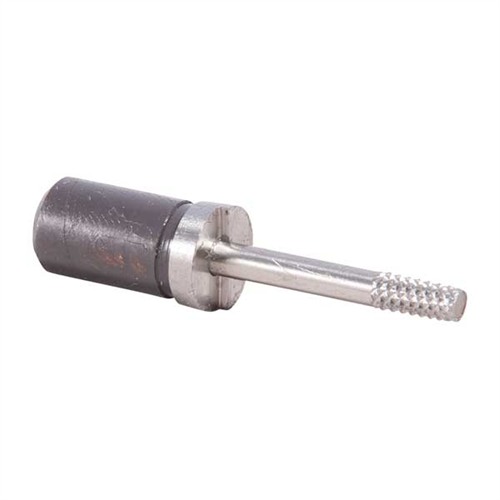

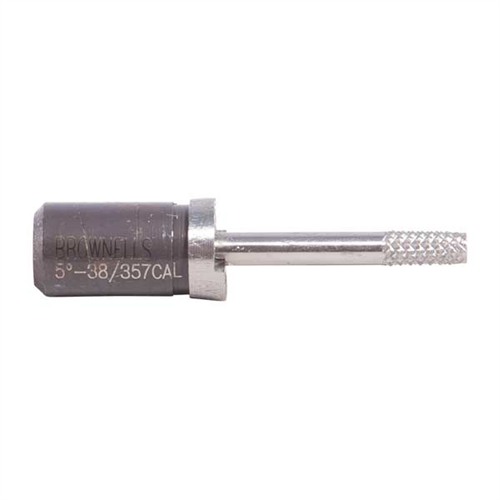

There is a very narrow, (.004") throat diameter range where maximum accuracy is obtained. Go smaller or larger and accuracy will suffer. By simply slipping the Plug Gauge into the barrel throat, it s possible to tell at a glance when you are approaching the correct diameter. Warns you before you go too far. Also valuable as a diagnostic tool for guns brought in with accuracy complaints, (designed for chamfers cut with our tools - may not give a correct reading on guns with other degrees of chamfer). Each gauge is self-piloted, precision-ground, hardened and stepped to show minimum and maximum optimum diameters. 11° and 18° Gauge measures both chamfer angles. Sizes .22RF; .32; .38/.357; .38-40/.40; .41; .44; .45. 5° Ruger-Style Gauge available in .38/.357, .44 and .45 caliber only.
SPECS: 1¼" (3.2cm) long. Steel. Instructions included. 11°-18° gauges measure forcing cones with either angle. 5°, .38/.357 gauge is designed for Ruger .38/.357 s which began using this angle about 1983. Complete Set includes the Rimfire Gauge, all ten Centerfire Gauges and Instructions in a Bench Kit Box.
¡Maximiza tu precisión con nuestros medidores de chamfering!
Los BARREL CHAMFERING PLUG GAUGES de BROWNELLS son herramientas esenciales para lograr la máxima precisión al usar herramientas de chamfering de pistolas. Hay un rango muy estrecho de diámetro de garganta de (.004") donde se obtiene la máxima precisión. Si te sales de este rango, la precisión se verá afectada.
Al simplemente insertar el Plug Gauge en la garganta del cañón, podrás saber de un vistazo cuándo te estás acercando al diámetro correcto. Te advierte antes de que te excedas. También es valioso como herramienta de diagnóstico para armas que presentan quejas de precisión, (diseñado para chamfers cortados con nuestras herramientas - puede no dar una lectura correcta en armas con otros grados de chamfer).
Especificaciones:
- Longitud: 1¼" (3.2cm)
- Material: Acero
- Instrucciones incluidas
- Los medidores de 11°-18° miden los conos de forzamiento con cualquiera de los ángulos
- El medidor de 5°, .38/.357 está diseñado para Ruger .38/.357 que comenzaron a usar este ángulo alrededor de 1983
El Complete Set incluye el Rimfire Gauge, los diez Centerfire Gauges y las instrucciones en una Bench Kit Box.
Tamaños disponibles: .22RF; .32; .38/.357; .38-40/.40; .41; .44; .45. El medidor de estilo Ruger de 5° está disponible solo en calibres .38/.357, .44 y .45.
