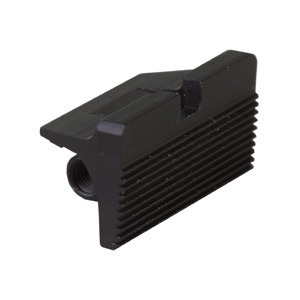

Flat blade gives a crisp, target-style sight picture that eliminates the distracting Òdouble-notchÓ found on factory sights. .160" high blade (same as factory) features an angled and serrated rear face that reduces glare. Extends over the rear of the sight body for a cleaner look and gives a slight increase in sight radius. Available in two notch widths, .110" for target and PPC use, plus .125" for IPSC, IDPA and pin shooting. Deeper notch gives easier eye alignment.
SPECS: 6061-T6 aluminum, matte black, anodized. Heat treated. .700" (17.8mm) blade width, .371" (9.4mm) height, .350" (8.9mm) long. .085" (2.2mm) deep notch. Kit includes windage screw assembly for installation. Fits Smith & Wesson K, L, and N frame revolvers. Will work on all with adjustable sights.
Más...
Proporciona un cuadro de vista aguda, fácil-a-Align
Hoja plana da un crujiente, cuadro de vista objetivo-estilo que elimina la distracción Òdouble-notchÓ encontrado en monumentos de fábrica. . lámina 160" alto (igual que la fábrica) cuenta con una cara posterior angulada y dentada que reduce los reflejos. Se extiende sobre la parte posterior del cuerpo vista para una mirada limpia y da un ligero aumento en radio visión. Disponible en dos anchuras de muesca,. 110" para el destino y uso PPC, además de. 125" para IPSC, IDPA y pin disparos. Muesca profunda da más fácil alineación ocular.
Especificaciones: aluminio 6061-T6, negro, mate anodizado. Tratamiento térmico. . 700"(17,8 mm) anchura de la hoja,. 371" (15.2 mm) altura,. 350"(8,9 mm) de largo. . 085"(3.5 mm) profunda hendidura. El kit incluye el conjunto de tornillo de ajuste para la instalación. Se adapta a Smith Wesson & K, L y N revólveres de armazón. Trabajarán sobre todo con miras ajustables.
Más...
Evaluaciones de clientes para BROWNELLS COMPETITION REAR SIGHT BLADE KIT .125"
Número de evaluaciones: 4
De brownells.com: 4
Evaluación media: 4,8
Great choice(08/03/2013)
This is being used on a S&W 625JM for competitive shooting. Searching the web, some people complained that the new blade had "play" and would wiggle around. Not the case for me, it's in there rock solid. In full disclosure I had a revolver gunsmith install it for minimal cost, so I can't say how difficult it was to put on. It's worth it though, the sight picture is incredible for a fraction of the cost compared to other options. The notch is a perfect .125" and appears to be slightly deeper, which is good. It also comes with the replacement parts for installation which is something other brands don't do, about a $10-15 value. It's a very functional piece that I expect will help my scores, especially on the long shots. It really should come with this from the factory. If used on a self-defense revolver there is a chance it could snag on clothing, as the edges are sharp, but for a competition gun that's a good thing.
extraordinary rear sight(05/08/2011)
Excellent product for smith & wesson k-frame 14 model target masterpiece.
Great upgrade(06/06/2012)
I didn't read the description completely and ordered a new windage screw. This kit comes with the screw/nut/detent/and spring to replace the hardware you have to break to put the new blade in.
This blade pairs great with a sdm fiber optic front. I have them on my 617-4 and my 686-5
Works great for the price. All you need(02/08/2017)
Sight is easy enough to install if you follow the directions.
It includes EVERYTHING you need, and some spares in case you lose bits. Nice touch.
Once installed, it's tighter in windage vs the stock sight. But there's a slight amount of rotational (fore aft) play, which because of the rear offset, results in slight up/down play.
Most likely it won't make a noticeable effect during target shooting, but we will test it pushing it both ways and see if it changes point of impact.
Sight picture Is VASTLY superior to stock. I found the .110 aperture perfect on an S&W 625 with 5" barrel.
For defensive use, the stock sight is stronger simply because it doesn't have a large piece hanging off the back. I suspect a strong hit will bend or break this aluminum unit. But for paper punching, even hunting, you can't beat the sight picture. It's really outstanding.
N.º de producto: 078000013 BROWNELLS COMPETITION REAR SIGHT BLADE KIT .125" Hoja plana da un crujiente, cuadro de vista objetivo-estilo que elimina la distracción Òdouble-notchÓ encontrado en monumentos de fábrica. . lámina 160" alto (igual que la fábrica) cuenta con una cara posterior angulada y dentada que reduce los reflejos. Se extiende sobre la parte posterior del cuerpo vista para una mirada limpia y da un ligero aumento en radio visión. Disponible en dos anchuras de muesca,. 110" para el destino y uso PPC, además de. 125" para IPSC, IDPA y pin disparos. Muesca profunda da más fácil alineación ocular.
46.9EUR046,90 €
*47,94 €
Pedido pendiente, tiempo de entrega aproximado 4-12 semanas desde el almacén de EE. UU.
Caracteristicas:Color del punto de mira: BlackEstilo: TargetHacer: Smith & WessonModelo: K Frame, L Frame, N Frame
Color del punto de mira:
Black
Estilo:
Target
Hacer:
Smith & Wesson
Modelo:
K Frame,L Frame,N Frame
Peso de entrega: 0,045kgAltura: 23mmAnchura: 81mmLongitud: 145mm
Detalles del artículo
Hecho en USA
Sale
N.º de producto: 078000012 BROWNELLS COMPETITION REAR SIGHT BLADE KIT .110" Hoja plana da un crujiente, cuadro de vista objetivo-estilo que elimina la distracción Òdouble-notchÓ encontrado en monumentos de fábrica. . lámina 160" alto (igual que la fábrica) cuenta con una cara posterior angulada y dentada que reduce los reflejos. Se extiende sobre la parte posterior del cuerpo vista para una mirada limpia y da un ligero aumento en radio visión. Disponible en dos anchuras de muesca,. 110" para el destino y uso PPC, además de. 125" para IPSC, IDPA y pin disparos. Muesca profunda da más fácil alineación ocular.
Color del punto de mira:
Black
Estilo:
Target
Hacer:
Smith & Wesson
Modelo:
K Frame,L Frame,N Frame
Peso de entrega: 0,045kgAltura: 30mmAnchura: 79mmLongitud: 135mm
Flat blade gives a crisp, target-style sight picture that eliminates the distracting Òdouble-notchÓ found on factory sights. .160" high blade (same as factory) features an angled and serrated rear face that reduces glare. Extends over the rear of the sight body for a cleaner look and gives a slight increase in sight radius. Available in two notch widths, .110" for target and PPC use, plus .125" for IPSC, IDPA and pin shooting. Deeper notch gives easier eye alignment.
SPECS: 6061-T6 aluminum, matte black, anodized. Heat treated. .700" (17.8mm) blade width, .371" (9.4mm) height, .350" (8.9mm) long. .085" (2.2mm) deep notch. Kit includes windage screw assembly for installation. Fits Smith & Wesson K, L, and N frame revolvers. Will work on all with adjustable sights.
Más...
Proporciona un cuadro de vista aguda, fácil-a-Align
Hoja plana da un crujiente, cuadro de vista objetivo-estilo que elimina la distracción Òdouble-notchÓ encontrado en monumentos de fábrica. . lámina 160" alto (igual que la fábrica) cuenta con una cara posterior angulada y dentada que reduce los reflejos. Se extiende sobre la parte posterior del cuerpo vista para una mirada limpia y da un ligero aumento en radio visión. Disponible en dos anchuras de muesca,. 110" para el destino y uso PPC, además de. 125" para IPSC, IDPA y pin disparos. Muesca profunda da más fácil alineación ocular.
Especificaciones: aluminio 6061-T6, negro, mate anodizado. Tratamiento térmico. . 700"(17,8 mm) anchura de la hoja,. 371" (15.2 mm) altura,. 350"(8,9 mm) de largo. . 085"(3.5 mm) profunda hendidura. El kit incluye el conjunto de tornillo de ajuste para la instalación. Se adapta a Smith Wesson & K, L y N revólveres de armazón. Trabajarán sobre todo con miras ajustables.
Más...
Evaluaciones de clientes para BROWNELLS COMPETITION REAR SIGHT BLADE KIT .125"
Número de evaluaciones: 4
De brownells.com: 4
Evaluación media: 4,8
Great choice(08/03/2013)
This is being used on a S&W 625JM for competitive shooting. Searching the web, some people complained that the new blade had "play" and would wiggle around. Not the case for me, it's in there rock solid. In full disclosure I had a revolver gunsmith install it for minimal cost, so I can't say how difficult it was to put on. It's worth it though, the sight picture is incredible for a fraction of the cost compared to other options. The notch is a perfect .125" and appears to be slightly deeper, which is good. It also comes with the replacement parts for installation which is something other brands don't do, about a $10-15 value. It's a very functional piece that I expect will help my scores, especially on the long shots. It really should come with this from the factory. If used on a self-defense revolver there is a chance it could snag on clothing, as the edges are sharp, but for a competition gun that's a good thing.
extraordinary rear sight(05/08/2011)
Excellent product for smith & wesson k-frame 14 model target masterpiece.
Great upgrade(06/06/2012)
I didn't read the description completely and ordered a new windage screw. This kit comes with the screw/nut/detent/and spring to replace the hardware you have to break to put the new blade in.
This blade pairs great with a sdm fiber optic front. I have them on my 617-4 and my 686-5
Works great for the price. All you need(02/08/2017)
Sight is easy enough to install if you follow the directions.
It includes EVERYTHING you need, and some spares in case you lose bits. Nice touch.
Once installed, it's tighter in windage vs the stock sight. But there's a slight amount of rotational (fore aft) play, which because of the rear offset, results in slight up/down play.
Most likely it won't make a noticeable effect during target shooting, but we will test it pushing it both ways and see if it changes point of impact.
Sight picture Is VASTLY superior to stock. I found the .110 aperture perfect on an S&W 625 with 5" barrel.
For defensive use, the stock sight is stronger simply because it doesn't have a large piece hanging off the back. I suspect a strong hit will bend or break this aluminum unit. But for paper punching, even hunting, you can't beat the sight picture. It's really outstanding.
Todos los productos de nuestra web estan en el almacen de Brownells USA, dependiendo del dia de la semana que haga el pedido este puede tardar en llegar entre 15 y 20 dias, nosotros nos encargamos de traer estos productos desde USA y de toda la documentación necesaria para la importacion (transportes, Dua, licencias de importacion y todo el papeleo necesario) los precios llevan incluido los gastos de transporte, aduanas y demas gastos que puedan generar los envios, solamente se les cobrara los gastos de envio desde nuestro almacen a su domicilio.
*
Los precios incluyen el IVA, y el transporte de EE.UU a España, no incluye el envío a su domicilio.
