60\ Shoulder x .245"

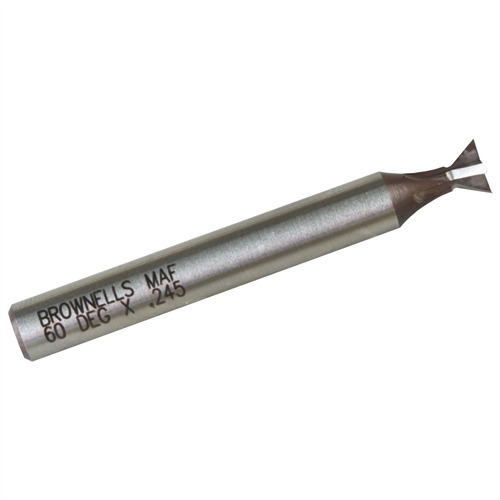

We've had many requests for a small dovetail cutter that would speed up the cutting of dovetails in front sight blades when installing colored inserts. The one we've had made cuts a ¼" wide dovetail, just right for sight inserts, and the finished product is very precise. Since the cutter is small, (it tapers to a diameter of .110"), you must make an initial cut with a 1/8" end mill. By using the end mill to remove some metal first, you'll avoid overloading the cutter and breaking it. CAUTION: For use in milling machine only. High speed steel. 21⁄32" (5.1cm) long. 1⁄4" (6.3cm) diameter shank. Maximum cut depth is .100" (2.5mm) 60° shoulder. DO NOT EXCEED 700 rpm, HIGHER SPEED WILL BREAK TEETH.
38.9 38.9 1 EUR
N.º de producto: 080621245
BROWNELLS 60 HSS FRONT SIGHT INSERT CUTTER .245" Hemos recibido muchas solicitudes para un pequeño cortador de cola de milano que agilizara el corte de las colas de milano en las hojas de las miras delanteras al instalar inserciones de colores. El que hemos hecho corta una cola de milano de ¼" de ancho, ideal para las inserciones de mira, y el producto terminado es muy preciso. Dado que el cortador es pequeño (se afila hasta un diámetro de .110"), debes hacer un corte inicial con una fresa de extremo de 1/8". Al usar la fresa para quitar algo de metal primero, evitarás sobrecargar el cortador y romperlo. PRECAUCIÓN: Solo para uso en fresadora. Acero de alta velocidad. 21⁄32" (5.1cm) de largo. Vástago de 1⁄4" (6.3cm) de diámetro. La profundidad máxima de corte es de .100" (2.5mm) con un hombro de 60°. NO EXCEDER 700 rpm, VELOCIDADES SUPERIORES ROMPERÁN LOS DIENTES.
38.9 EUR 2 38,90 € *
Plazo de entrega de aproximadamente 14-21 días.
2 pcs. en el almacén de EE.UU.
Caracteristicas: Grados: 60

Atributos

Grados: 60 Peso de entrega: 0,018kg Altura de envío: 10mm Ancho de envío: 79mm Longitud de envío: 145mm

Detalles del artículo

Hecho en USA




60\ Shoulder x .245"
We've had many requests for a small dovetail cutter that would speed up the cutting of dovetails in front sight blades when installing colored inserts. The one we've had made cuts a ¼" wide dovetail, just right for sight inserts, and the finished product is very precise. Since the cutter is small, (it tapers to a diameter of .110"), you must make an initial cut with a 1/8" end mill. By using the end mill to remove some metal first, you'll avoid overloading the cutter and breaking it. CAUTION: For use in milling machine only. High speed steel. 21⁄32" (5.1cm) long. 1⁄4" (6.3cm) diameter shank. Maximum cut depth is .100" (2.5mm) 60° shoulder. DO NOT EXCEED 700 rpm, HIGHER SPEED WILL BREAK TEETH.
