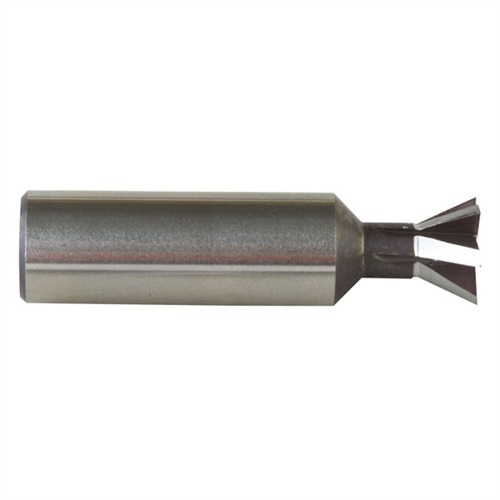

1911 AUTO HSS LO-MOUNT SIGHT BASE CUTTER

080621495
65\ Shoulder x .495"
These cutters are specially designed by us and made to our specifications for cutting the sight base slot required to mount the Wichita and Novak Lo-Mount 1911 Auto sights. Use ¼" carbide end mill to remove the bulk of the material (see drawing above) then make final dovetail cut. Final cut to lower rear of slide is done with an end mill and is not a part of the sight base cut. Made slightly undersized to compensate for variations in sight bases and milling tolerances on installation. With the popularity of custom 1911 Auto Pistols, this cutter is one that you will use frequently in your custom work. CAUTION: For use in milling machine only. 2" (5cm). .495" diameter cut. ½" (12.7mm) diameter shank. 65° shoulder. DO NOT EXCEED 700 rpm, HIGHER SPEED WILL BREAK TEETH.
49.9 49.9 1 EUR
Sale
N.º de producto: 080621495
BROWNELLS 65 HSS LO-MOUNT SIGHT BASE CUTTER .490" Estos cortadores son especialmente diseñados por nosotros y hechos a nuestras especificaciones para cortar la ranura base vista requerida para montar los monumentos Wichita y Novak Lo montaje 1911 Auto. Uso ¼" carburo fresa para remover la mayor parte del material (ver dibujo superior) entonces hacer el corte final de cola de Milano. Corte final para bajar la parte posterior de la corredera se realiza con un molino de extremo y no es parte de la corte base vista. Hace poco tamaño insuficiente para compensar las variaciones en vista bases y tolerancias de fresado en la instalación. Con la popularidad de pistolas de Auto 1911 personalizado, este cortador es uno que se usan con frecuencia en sus trabajos por encargo. PRECAUCIÓN: para su uso en fresadora solamente. 2"(5cm). . corte 495" de diámetro. ½"(12,7 mm) caña de diámetro. hombro 65°. No exceda de 700 rpm, mayor velocidad a romper los dientes.
49.9 EUR 2 49,90 € * 66,41 €
Plazo de entrega de aproximadamente 14-21 días.
2 pcs. en el almacén de EE.UU.
Caracteristicas: Grados: 65

Atributos

Grados: 65 Peso de entrega: 0,045kg Altura: 5mm Anchura: 76mm Longitud: 140mm

Detalles del artículo

Hecho en USA




65\ Shoulder x .495"
These cutters are specially designed by us and made to our specifications for cutting the sight base slot required to mount the Wichita and Novak Lo-Mount 1911 Auto sights. Use ¼" carbide end mill to remove the bulk of the material (see drawing above) then make final dovetail cut. Final cut to lower rear of slide is done with an end mill and is not a part of the sight base cut. Made slightly undersized to compensate for variations in sight bases and milling tolerances on installation. With the popularity of custom 1911 Auto Pistols, this cutter is one that you will use frequently in your custom work. CAUTION: For use in milling machine only. 2" (5cm). .495" diameter cut. ½" (12.7mm) diameter shank. 65° shoulder. DO NOT EXCEED 700 rpm, HIGHER SPEED WILL BREAK TEETH.
