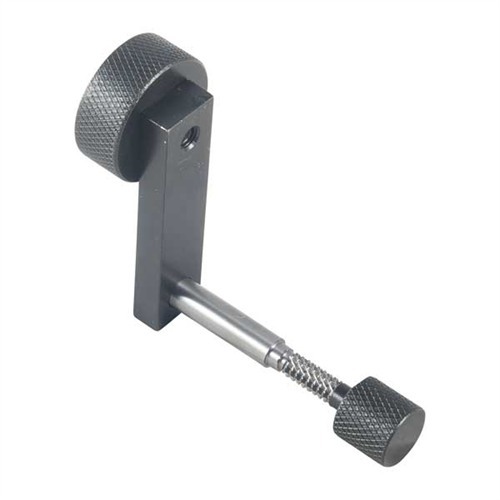

Recuts Lug For A Tight Fitting Barrel That Improves Accuracy
Hand operated, carbide cutter easily trims excess material from the bottom barrel lug when fitting custom or factory barrels to 1911 Autos. Cuts barrel lugs parallel, and with the correct height and radius, to help produce the best possible lockup. Use .186" cutter first, then progress to the .195" cutter if more material needs to be removed. Follow with careful hand fitting to achieve a firm, non-binding barrel-to-slide fit. Start small and check your work often. It is possible, with some slide/barrel combinations, that the .195" cutter could remove more material than necessary. Fits all 1911 Auto, Commander and Officers ACP, single- and double-stack frames.
SPECS: 1" (2.5cm) diameter knob; 2.07" (5.25cm) long shank. .186" (4.72mm) or .195" (4.95mm) diameter cutters. Complete instructions included.
Más...
Recorta el estirón para un barril ajustada que mejora la precisión
Operado manualmente, fresa de carburo fácilmente recorta exceso de material de la fábrica barriles o estirón de barril inferior montaje personalizado para Autos de 1911. Cortes del barril estirones en paralelo y con la altura correcta y radio, para ayudar a producir el mejor posible bloqueo. Uso. 186" cortador primero, luego progresar a la. 195" cortador si más material debe ser eliminado. Sigue con montaje para lograr un ajuste firme, no vinculante de barril-a-slide cuidadoso de las manos. Empezar con poco y comprobar su trabajo a menudo. Es posible, con algunas combinaciones de diapositiva/barril, que el. cortador de 195" podría eliminar más material que sea necesario. Se adapta a todo Auto 1911, comandante y oficiales de la ACP, single and double stack Marcos.
Especificaciones: perilla de 1"(2,5 cm) de diámetro; 2,07" (5,25 cm) larga caña. 186"(4,72 m) o. 195" (4,95 mm) diámetro cortadores. Complete las instrucciones incluidas.
Más...
Evaluaciones de clientes para BROWNELLS 1911 LUG CUTTER HANDLE W/0.195" CUTTER
Número de evaluaciones: 4
De brownells.com: 4
Evaluación media: 2,8
Do not buy!!(14/11/2013)
The new cutters are brittle and will break one first time use.
A must tool for gunsmiths(20/12/2011)
This lug cutter is easy to use and does a professional job.
Change In Design (09/10/2014)
The design of the .186 cutter was changed to a helix design. I cut 3 lower lugs on barrels and the teeth sheared off in one area on the third barrel. The old "burr" style cutter must have fit 30-40 barrels before it broke. Please bring back the old style. Helix is fine for the .195 cutter as it delivers a smoother cut.
Works well(25/01/2015)
I've had this lug cutter for a few years and it has worked well for me. It should be used with the handle on the left side of the frame as viewed from the rear other wise the cutter will grab the barrel lug pulling it forward and braking the cutter. Clean and oil it often and it will cut cleanly. It would be nice if the support bushing was attached to the cutter, I also had to turn a shoulder on the bushing in order for it to clear the slide and have full engagement in the frame, although it did work the way it was.
N.º de producto: 080000068 BROWNELLS 1911 LUG CUTTER HANDLE W/0.195" CUTTER Operado manualmente, fresa de carburo fácilmente recorta exceso de material de la fábrica barriles o estirón de barril inferior montaje personalizado para Autos de 1911. Cortes del barril estirones en paralelo y con la altura correcta y radio, para ayudar a producir el mejor posible bloqueo. Uso. 186" cortador primero, luego progresar a la. 195" cortador si más material debe ser eliminado. Sigue con montaje para lograr un ajuste firme, no vinculante de barril-a-slide cuidadoso de las manos. Empezar con poco y comprobar su trabajo a menudo. Es posible, con algunas combinaciones de diapositiva/barril, que el. cortador de 195" podría eliminar más material que sea necesario. Se adapta a todo Auto 1911, comandante y oficiales de la ACP, single and double stack Marcos.
N.º de producto: 080000062 BROWNELLS 0.186" 1911 LUG CUTTER Operado manualmente, fresa de carburo fácilmente recorta exceso de material de la fábrica barriles o estirón de barril inferior montaje personalizado para Autos de 1911. Cortes del barril estirones en paralelo y con la altura correcta y radio, para ayudar a producir el mejor posible bloqueo. Uso. 186" cortador primero, luego progresar a la. 195" cortador si más material debe ser eliminado. Sigue con montaje para lograr un ajuste firme, no vinculante de barril-a-slide cuidadoso de las manos. Empezar con poco y comprobar su trabajo a menudo. Es posible, con algunas combinaciones de diapositiva/barril, que el. cortador de 195" podría eliminar más material que sea necesario. Se adapta a todo Auto 1911, comandante y oficiales de la ACP, single and double stack Marcos.
Hacer:
1911
Peso de entrega: 0,023kgAltura: 13mmAnchura: 79mmLongitud: 140mm
Detalles del artículo
Hecho en USA
Sale
N.º de producto: 080000063 BROWNELLS 0.195" 1911 LUG CUTTER Operado manualmente, fresa de carburo fácilmente recorta exceso de material de la fábrica barriles o estirón de barril inferior montaje personalizado para Autos de 1911. Cortes del barril estirones en paralelo y con la altura correcta y radio, para ayudar a producir el mejor posible bloqueo. Uso. 186" cortador primero, luego progresar a la. 195" cortador si más material debe ser eliminado. Sigue con montaje para lograr un ajuste firme, no vinculante de barril-a-slide cuidadoso de las manos. Empezar con poco y comprobar su trabajo a menudo. Es posible, con algunas combinaciones de diapositiva/barril, que el. cortador de 195" podría eliminar más material que sea necesario. Se adapta a todo Auto 1911, comandante y oficiales de la ACP, single and double stack Marcos.
Hacer:
1911
Peso de entrega: 0,018kgAltura: 8mmAnchura: 91mmLongitud: 163mm
Detalles del artículo
Hecho en USA
N.º de producto: 080000067 BROWNELLS 1911 LUG CUTTER HANDLE W/0.186" CUTTER Operado manualmente, fresa de carburo fácilmente recorta exceso de material de la fábrica barriles o estirón de barril inferior montaje personalizado para Autos de 1911. Cortes del barril estirones en paralelo y con la altura correcta y radio, para ayudar a producir el mejor posible bloqueo. Uso. 186" cortador primero, luego progresar a la. 195" cortador si más material debe ser eliminado. Sigue con montaje para lograr un ajuste firme, no vinculante de barril-a-slide cuidadoso de las manos. Empezar con poco y comprobar su trabajo a menudo. Es posible, con algunas combinaciones de diapositiva/barril, que el. cortador de 195" podría eliminar más material que sea necesario. Se adapta a todo Auto 1911, comandante y oficiales de la ACP, single and double stack Marcos.
Recuts Lug For A Tight Fitting Barrel That Improves Accuracy
Hand operated, carbide cutter easily trims excess material from the bottom barrel lug when fitting custom or factory barrels to 1911 Autos. Cuts barrel lugs parallel, and with the correct height and radius, to help produce the best possible lockup. Use .186" cutter first, then progress to the .195" cutter if more material needs to be removed. Follow with careful hand fitting to achieve a firm, non-binding barrel-to-slide fit. Start small and check your work often. It is possible, with some slide/barrel combinations, that the .195" cutter could remove more material than necessary. Fits all 1911 Auto, Commander and Officers ACP, single- and double-stack frames.
SPECS: 1" (2.5cm) diameter knob; 2.07" (5.25cm) long shank. .186" (4.72mm) or .195" (4.95mm) diameter cutters. Complete instructions included.
Más...
Recorta el estirón para un barril ajustada que mejora la precisión
Operado manualmente, fresa de carburo fácilmente recorta exceso de material de la fábrica barriles o estirón de barril inferior montaje personalizado para Autos de 1911. Cortes del barril estirones en paralelo y con la altura correcta y radio, para ayudar a producir el mejor posible bloqueo. Uso. 186" cortador primero, luego progresar a la. 195" cortador si más material debe ser eliminado. Sigue con montaje para lograr un ajuste firme, no vinculante de barril-a-slide cuidadoso de las manos. Empezar con poco y comprobar su trabajo a menudo. Es posible, con algunas combinaciones de diapositiva/barril, que el. cortador de 195" podría eliminar más material que sea necesario. Se adapta a todo Auto 1911, comandante y oficiales de la ACP, single and double stack Marcos.
Especificaciones: perilla de 1"(2,5 cm) de diámetro; 2,07" (5,25 cm) larga caña. 186"(4,72 m) o. 195" (4,95 mm) diámetro cortadores. Complete las instrucciones incluidas.
Más...
Evaluaciones de clientes para BROWNELLS 1911 LUG CUTTER HANDLE W/0.195" CUTTER
Número de evaluaciones: 4
De brownells.com: 4
Evaluación media: 2,8
Do not buy!!(14/11/2013)
The new cutters are brittle and will break one first time use.
A must tool for gunsmiths(20/12/2011)
This lug cutter is easy to use and does a professional job.
Change In Design (09/10/2014)
The design of the .186 cutter was changed to a helix design. I cut 3 lower lugs on barrels and the teeth sheared off in one area on the third barrel. The old "burr" style cutter must have fit 30-40 barrels before it broke. Please bring back the old style. Helix is fine for the .195 cutter as it delivers a smoother cut.
Works well(25/01/2015)
I've had this lug cutter for a few years and it has worked well for me. It should be used with the handle on the left side of the frame as viewed from the rear other wise the cutter will grab the barrel lug pulling it forward and braking the cutter. Clean and oil it often and it will cut cleanly. It would be nice if the support bushing was attached to the cutter, I also had to turn a shoulder on the bushing in order for it to clear the slide and have full engagement in the frame, although it did work the way it was.
