FISHER MACHINE SHOP

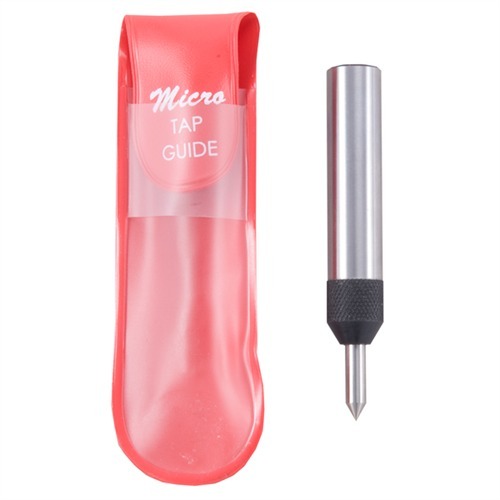

MICRO TAP GUIDE

100004428
Top-Quality Machinist Tool For Precision Work
Applies just enough pressure on the tap for precise centering and perfectly square threads. Just install in your lathe tailstock, drill press, or mill spindle, and align the point of the tap guide with the small hole at the end of the tap wrench. Adjust the tailstock or travel to remove all free-play between guide, tap wrench with installed tap, and pre-drilled hole. As you cut the threads by hand, the tap guide’s internal spring keeps steady pressure on the tap to prevent misalignment or jumping the threads. Fully adjustable spring tension allows fine-tuning the amount of pressure on the tap. Knurled bottleneck provides a non-slip grasp. Reversible guide tip fits male or female tap wrench hole.

SPECS: Steel, hardened, knurled bottleneck. 31⁄8" (7.9cm) OAL, ½" (13mm) diameter shank, 3⁄16" (4.8mm) diameter tip, retracts ½" into body. Adjustable spring tension.

0 0 1 EUR
N.º de producto: 100004428
FISHER MACHINE SHOP MICRO TAP GUIDE
Ref Fabricante: 20MTG Aplica justo la presión necesaria sobre el macho de roscar para un centrado preciso y roscas perfectamente cuadradas. Simplemente instálalo en el contrapunto de tu torno, prensa de taladro o husillo de la fresadora, y alinea la punta de la guía del macho con el pequeño orificio al final de la llave del macho. Ajusta el contrapunto o el desplazamiento para eliminar cualquier juego entre la guía, la llave del macho con el macho instalado y el orificio pre-taladrado. A medida que cortas las roscas manualmente, el resorte interno de la guía del macho mantiene una presión constante sobre el macho para evitar desalineaciones o saltos en las roscas. La tensión del resorte completamente ajustable permite afinar la cantidad de presión sobre el macho. El cuello de botella moleteado proporciona un agarre antideslizante. La punta de la guía reversible se adapta al orificio de la llave del macho macho o hembra.
Notificar sobre disponibilidad
No disponible.

Atributos

Peso de entrega: 0,045kg Altura de envío: 1mm Ancho de envío: 33mm Longitud de envío: 97mm

Detalles del artículo

Hecho en USA



Top-Quality Machinist Tool For Precision Work
Applies just enough pressure on the tap for precise centering and perfectly square threads. Just install in your lathe tailstock, drill press, or mill spindle, and align the point of the tap guide with the small hole at the end of the tap wrench. Adjust the tailstock or travel to remove all free-play between guide, tap wrench with installed tap, and pre-drilled hole. As you cut the threads by hand, the tap guide’s internal spring keeps steady pressure on the tap to prevent misalignment or jumping the threads. Fully adjustable spring tension allows fine-tuning the amount of pressure on the tap. Knurled bottleneck provides a non-slip grasp. Reversible guide tip fits male or female tap wrench hole.

SPECS: Steel, hardened, knurled bottleneck. 31⁄8" (7.9cm) OAL, ½" (13mm) diameter shank, 3⁄16" (4.8mm) diameter tip, retracts ½" into body. Adjustable spring tension.
