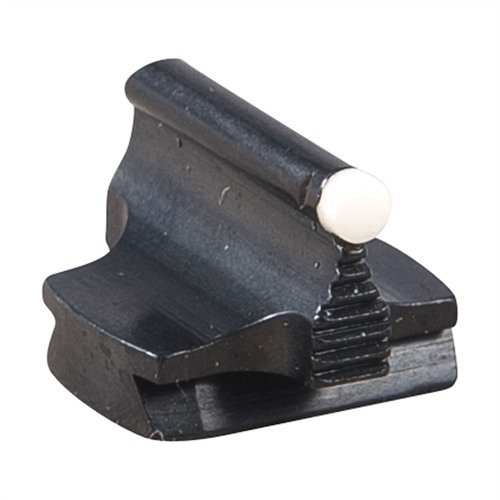

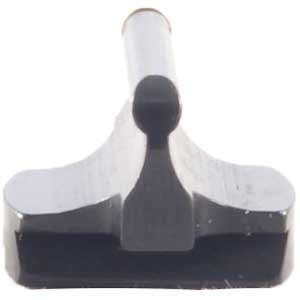

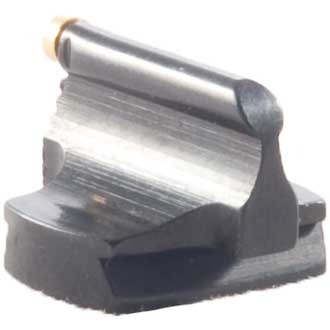

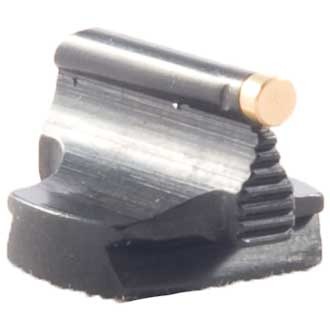

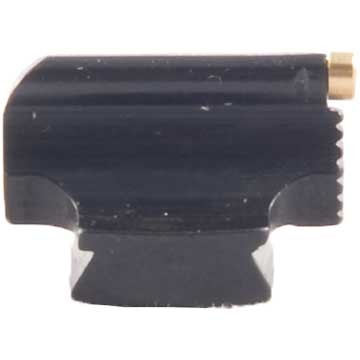

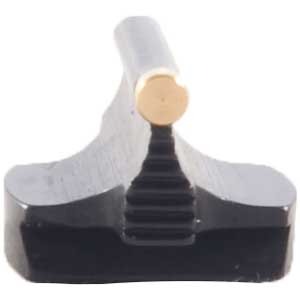

Precision-made sights for rifles, both with and without ramp bases. The blade is gracefully contoured, sloping toward the front. Made of steel and nicely blued to look good on any gun. The BARREL MOUNTED FRONT SIGHT has rounded base sides for guns with the front sight dovetail cut directly into the barrel. “W” sights have a 17/32" (13.5mm) wide base. Barrel front sights are available with three beads, Pope’s Island Gold, flat faced gold available in 3/32" (2.4mm) diameter. Ivory, flat faced white polymer in 3/32" (2.4mm) diameter.
SPECS: Steel, blue, polished finish. .620" (15mm) long. ORDERING: Select the sight height required using the Marbles and/or Williams charts and determine which Sight Style, Bead Type and Width is needed from the info above. Using the chart beside this copy, find the correct Marbles Sight and note the 9 digit Ordering No. For example: If you need a Contoured Ramp Front Sight, “MR” width, .290" (7.4mm) high, with a 1/16" (1.6mm) gold bead, follow the Height listing to the .290" figure, read across on the “MR” line to the 1/16" gold bead and note the number: 579-502-911. 1" = (2.54cm)
Sight de alta precisión para rifles
Presentamos el RIFLE BARREL MOUNTED 3/32" 41-W FRONT SIGHT, un accesorio imprescindible para tus rifles. Este sight está diseñado tanto para rifles con bases de rampa como sin ellas.
Descripción del producto
El BARREL MOUNTED FRONT SIGHT cuenta con un diseño elegante, con un borde que se inclina hacia el frente. Fabricado en acero y con un acabado azul que le da un aspecto atractivo en cualquier arma. Los sights de tipo “W” tienen una base de 17/32" (13.5mm) de ancho.
- Disponibles con tres tipos de perlas: Pope’s Island Gold, y perlas de oro de cara plana en diámetro de 3/32" (2.4mm).
- Perlas de polímero blanco de cara plana en diámetro de 3/32" (2.4mm).
Especificaciones
Material: Acero, acabado azul pulido. Longitud: .620" (15mm).
Cómo ordenar
Selecciona la altura del sight que necesites utilizando las tablas de Marbles y/o Williams y determina qué estilo de sight, tipo de perla y ancho son necesarios según la información anterior. Usando la tabla al lado de este texto, encuentra el sight correcto de Marbles y anota el número de pedido de 9 dígitos. Por ejemplo: si necesitas un Contoured Ramp Front Sight, ancho “MR”, altura de .290" (7.4mm), con una perla de oro de 1/16" (1.6mm), sigue la lista de alturas hasta la cifra de .290", lee a lo largo en la línea “MR” hasta la perla de 1/16" de oro y anota el número: 579-502-911.
1" = (2.54cm)
