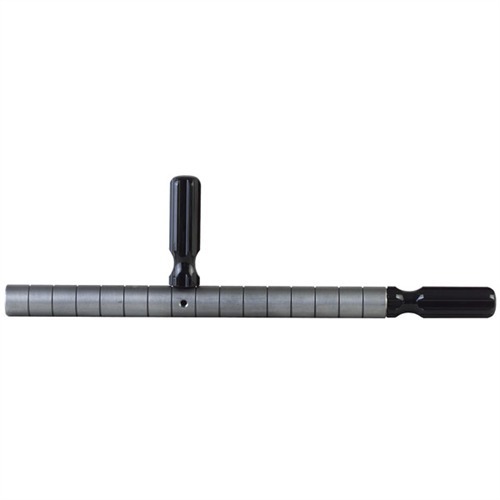

Helps prevent dinged and damaged scope tubes by removing high spots to quickly true misaligned or out-of-round scope rings so they're perfectly in line. Also works to turn-in and rough align rotary dovetail rings. Dual-handles with multiple, transverse, lapping compound grooves give complete control and fast results. Includes lapping compound.
SPECS: Mild steel, in-the-white. 12" (30cm) long, 1" (2.5cm) or 30mm (1.187") dia. Includes (2) plastic handles and instructions.
Más...
Alinea y Endereza Anillos de Montura; Previene Daños
Ayuda a prevenir abolladuras y daños en los tubos de los visores eliminando los puntos altos para alinear rápidamente anillos de montura desalineados o deformados, asegurando que estén perfectamente en línea. También funciona para instalar y alinear preliminarmente anillos de montura de cola de milano rotativa. Doble mango con múltiples ranuras transversales para la pasta de pulir, ofreciendo control total y resultados rápidos. Incluye pasta de pulir.
ESPECIFICACIONES: Acero suave, sin acabado. 12" (30cm) de largo, 1" (2.5cm) o 30mm (1.187") de diámetro. Incluye (2) mangos de plástico e instrucciones.
Más...
Evaluaciones de clientes para BROWNELLS 30MM SCOPE RING ALIGNMENT LAP
Número de evaluaciones: 4
De brownells.com: 4
Evaluación media: 3,8
30MM lapping bar(04/04/2010)
I used this 30 MM lapping bar for the rings on a new NF 8X32. It worked great. at start I had .020 gap on both sides of the rings with hard points on rear of both sets. After lapping, I had over 80% contact with tube and just onder .010 gap at ring split lines. I now have a 1" lapping bar to go with this one.
Everyone should have one of these!(30/12/2011)
I don't think you can get any better quality in a lapping tool. This thing is solid steel and very heavy duty. The multiple handle attachment points are very nice as well. This item comes with the 800 grit lapping compound which worked very well but took awhile to get full 80% contact on the rings. I would recommend purchasing the 600 grit compound separately to speed the process up a little bit or buy an extra six pack of beer. Overall I am very satisfied with my purchase and will be purchasing a 1" model to go with this one.... and some extra 600 grit compound.
disappointed...(24/03/2015)
it's just a piece of 1 3/16 raw cold rolled bar. The lapping surface is not machined. Mine spec'd out at 30.06>30.12 I didnt even bother to check the run out. I measured all my 30mm scopes and they were all 29.95 and mounted in Mark4 steel rings that this bar will never touch
A better product than cheaper versions(24/11/2010)
Unlike cheaper versions from other suppliers, this lap has grooves for carrying lapping compound. It also has multiple handle attachment points, which is important when working rings that are very close together (or very far apart), or when the structure of the firearm only allows access from certain positions.
A few quick passes will let you know whether you're close ... and to keep going ... or you're not, in which case you may need a reamer (such as the one from Clymer) or perhaps a new set of rings.
N.º de producto: 080903130 BROWNELLS 30MM SCOPE RING ALIGNMENT LAP050806026834 Ayuda a prevenir abolladuras y daños en los tubos de los visores eliminando los puntos altos para alinear rápidamente anillos de montura desalineados o deformados, asegurando que estén perfectamente en línea. También funciona para instalar y alinear preliminarmente anillos de montura de cola de milano rotativa. Doble mango con múltiples ranuras transversales para la pasta de pulir, ofreciendo control total y resultados rápidos. Incluye pasta de pulir.
94.9EUR094,90 €
*
Pedido pendiente, tiempo de entrega aproximado 4-12 semanas desde el almacén de EE. UU.
Previene abolladuras y daños en los tubos de los visores al eliminar puntos altos, alineando rápidamente anillos de montura desalineados o deformados.
Incluye doble mango con múltiples ranuras transversales para la pasta de pulir, proporcionando control total y resultados rápidos.
Fabricado en acero suave sin acabado, mide 12" de largo y 30mm de diámetro, e incluye mangos de plástico e instrucciones.
Atributos
Peso de entrega: 1,905kgAltura de envío: 74mmAncho de envío: 91mmLongitud de envío: 411mm
UPC
: 050806026834
Detalles del artículo
Hecho en USA
N.º de producto: 080903100 BROWNELLS 1" SCOPE RING ALIGNMENT LAP050806026827 Ayuda a prevenir abolladuras y daños en los tubos de los visores eliminando los puntos altos para alinear rápidamente anillos de montura desalineados o deformados, asegurando que estén perfectamente en línea. También funciona para instalar y alinear preliminarmente anillos de montura de cola de milano rotativa. Doble mango con múltiples ranuras transversales para la pasta de pulir, ofreciendo control total y resultados rápidos. Incluye pasta de pulir.
Helps prevent dinged and damaged scope tubes by removing high spots to quickly true misaligned or out-of-round scope rings so they're perfectly in line. Also works to turn-in and rough align rotary dovetail rings. Dual-handles with multiple, transverse, lapping compound grooves give complete control and fast results. Includes lapping compound.
SPECS: Mild steel, in-the-white. 12" (30cm) long, 1" (2.5cm) or 30mm (1.187") dia. Includes (2) plastic handles and instructions.
Más...
Alinea y Endereza Anillos de Montura; Previene Daños
Ayuda a prevenir abolladuras y daños en los tubos de los visores eliminando los puntos altos para alinear rápidamente anillos de montura desalineados o deformados, asegurando que estén perfectamente en línea. También funciona para instalar y alinear preliminarmente anillos de montura de cola de milano rotativa. Doble mango con múltiples ranuras transversales para la pasta de pulir, ofreciendo control total y resultados rápidos. Incluye pasta de pulir.
ESPECIFICACIONES: Acero suave, sin acabado. 12" (30cm) de largo, 1" (2.5cm) o 30mm (1.187") de diámetro. Incluye (2) mangos de plástico e instrucciones.
Más...
Evaluaciones de clientes para BROWNELLS 30MM SCOPE RING ALIGNMENT LAP
Número de evaluaciones: 4
De brownells.com: 4
Evaluación media: 3,8
30MM lapping bar(04/04/2010)
I used this 30 MM lapping bar for the rings on a new NF 8X32. It worked great. at start I had .020 gap on both sides of the rings with hard points on rear of both sets. After lapping, I had over 80% contact with tube and just onder .010 gap at ring split lines. I now have a 1" lapping bar to go with this one.
Everyone should have one of these!(30/12/2011)
I don't think you can get any better quality in a lapping tool. This thing is solid steel and very heavy duty. The multiple handle attachment points are very nice as well. This item comes with the 800 grit lapping compound which worked very well but took awhile to get full 80% contact on the rings. I would recommend purchasing the 600 grit compound separately to speed the process up a little bit or buy an extra six pack of beer. Overall I am very satisfied with my purchase and will be purchasing a 1" model to go with this one.... and some extra 600 grit compound.
disappointed...(24/03/2015)
it's just a piece of 1 3/16 raw cold rolled bar. The lapping surface is not machined. Mine spec'd out at 30.06>30.12 I didnt even bother to check the run out. I measured all my 30mm scopes and they were all 29.95 and mounted in Mark4 steel rings that this bar will never touch
A better product than cheaper versions(24/11/2010)
Unlike cheaper versions from other suppliers, this lap has grooves for carrying lapping compound. It also has multiple handle attachment points, which is important when working rings that are very close together (or very far apart), or when the structure of the firearm only allows access from certain positions.
A few quick passes will let you know whether you're close ... and to keep going ... or you're not, in which case you may need a reamer (such as the one from Clymer) or perhaps a new set of rings.
