Atributos
- Cartucho: -
- Peso de entrega: 0,34kg
- Altura de envío: 83mm
- Ancho de envío: 83mm
- Longitud de envío: 146mm
- UPC: 857600005207
N.º de producto: 100017700
N.º fabr.: TIB2

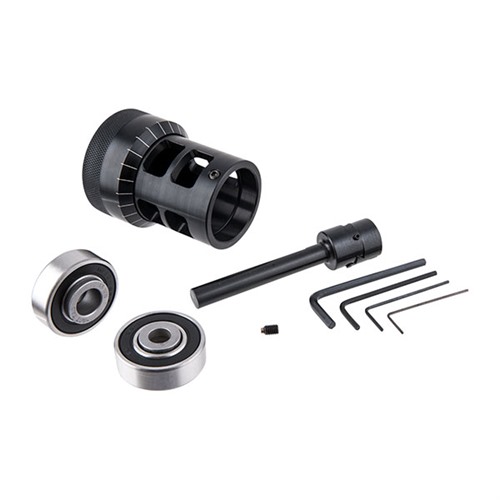

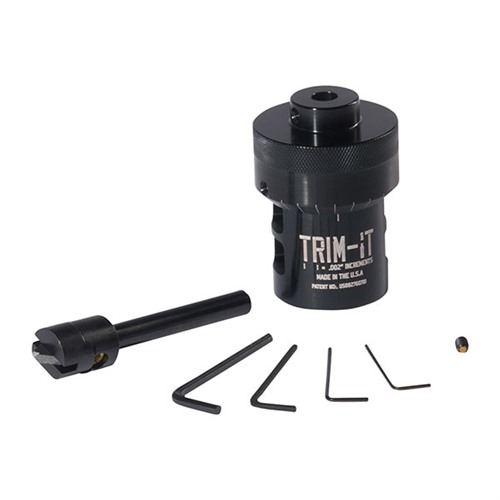

857600005207 El TRIM-IT II se monta en cualquier taladro o prensa de taladro estándar, haciendo que el recorte de tus casquillos sea más rápido y mucho más fácil. El cortador ajustable de 3 vías cuenta con una cuchilla de carburo de 3 lados que te permite recortar, chaflanar y eliminar rebabas de prácticamente cualquier calibre de cartuchos de rifle o pistola. Incluye un micrómetro incorporado que permite un control de longitud de corte extremadamente preciso y un ajuste rápido. El TRIM-IT II no es específico de calibre, los dies intercambiables están disponibles pero se venden por separado.Eliminado del programa
El TRIM-IT II se monta en cualquier taladro o prensa de taladro estándar, facilitando el recorte de tus casquillos de manera rápida y sencilla. Este trimmer cuenta con un cortador ajustable en 3 vías que presenta una cuchilla de carburo de 3 lados, permitiéndote recortar, biselar y eliminar rebabas de prácticamente cualquier calibre de cartuchos de rifle o pistola.
Además, el TRIM-IT II incluye un micrómetro incorporado que permite un control de longitud de corte extremadamente preciso y ajustes rápidos. No es específico para un calibre, ya que se pueden adquirir matrices intercambiables, pero se venden por separado.
Read the directions well and it works 19/05/2016
For the Trimmer that I received in the mail, my only complaint was the highly torqued small allen head screws by the factory.
If you study the instructions well on how to adjust the cutting blade and watch how the micrometer changes the cutting depth when you adjust it significantly, it works great.
It is a precision instrument and not a toaster, so it takes some paying attention to get it set up right.
First, make sure your cases are re-sized the required tolerances for headspacing using a case gauge.
Getting the die adjusted "ball park" close to the recommended OAL for the trimmed cartridge, but not quite that short.
Second, getting the cutting blade adjusted so it makes a small but visible chamfer in the inside of the trimmed brass. It's a trial and error process to get it right.
Do a final adjustment to the micrometer to get your trim depth correct.
Once all the allen screws are confirmed torqued down properly (not too much), spool up the drill first, insert firmly, do a half twist, and pull out when the cutter stops cutting.
Good concept, poor tolerances. 13/04/2016
Very sloppy thread on micrometer body leading to miss-alignment of body to cutter. A fixed body and micrometer adjuster on the cutter may have been a better solution.
