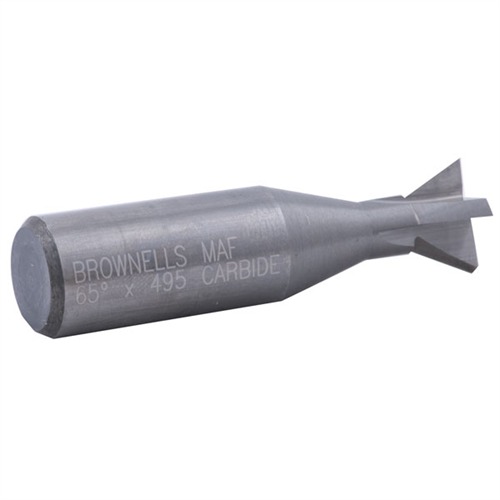

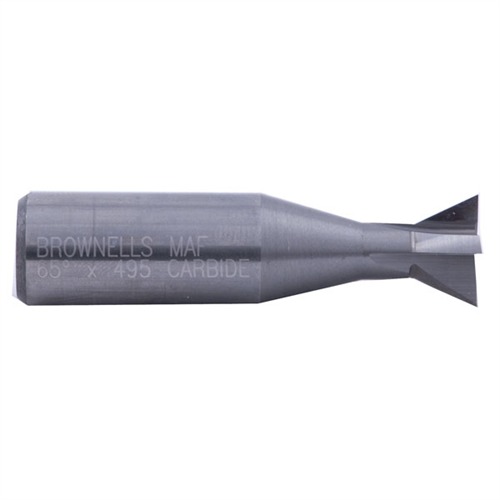

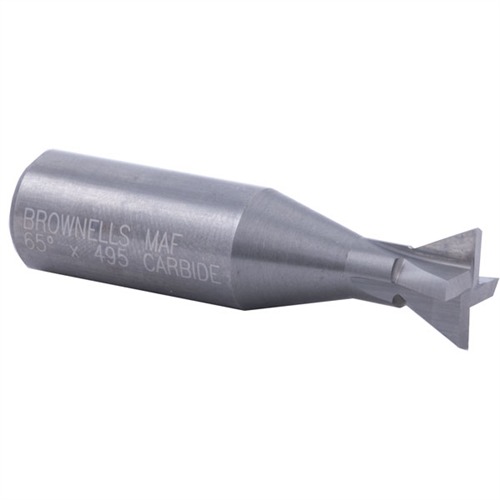

1911 CARBIDE DOVETAIL SIGHT BASE CUTTER

080621965
65\ Shoulder x .495"
These cutters are specially designed by us and made to our specifications for cutting the sight base slot required to mount the Wichita and Novak Lo-Mount 1911 Auto sights. Use ¼" carbide end mill to remove the bulk of the material (see drawing above) then make final dovetail cut. Final cut to lower rear of slide is done with an end mill and is not a part of the sight base cut. Made slightly undersized to compensate for variations in sight bases and milling tolerances on installation. With the popularity of custom 1911 Auto Pistols, this cutter is one that you will use frequently in your custom work. CAUTION: For use in milling machine only. Much harder and longer-lasting than HSS cutter. Use on hardened Colt factory slides. Solid carbide, 2" (5cm) long. .495" diameter cut. ½" (12.7mm) diameter shank. 65° shoulder.
129.9 129.9 1 EUR
N.º de producto: 080621965
BROWNELLS CARBIDE LO-MOUNT SIGHT BASE CUTTER Estos cortadores están especialmente diseñados por nosotros y hechos según nuestras especificaciones para cortar la ranura de la base de la mira necesaria para montar las miras Wichita y Novak Lo-Mount para pistolas 1911 Auto. Usa una fresa de carburo de ¼" para eliminar la mayor parte del material (ver dibujo arriba) y luego realiza el corte final del dovetail. El corte final para bajar la parte trasera de la corredera se hace con una fresa y no es parte del corte de la base de la mira. Hecho ligeramente más pequeño para compensar las variaciones en las bases de las miras y las tolerancias de fresado en la instalación. Con la popularidad de las pistolas 1911 Auto personalizadas, este cortador es uno que usarás frecuentemente en tu trabajo a medida. PRECAUCIÓN: Solo para uso en fresadora. Mucho más duro y duradero que el cortador HSS. Usar en correderas Colt de fábrica endurecidas. Carburo sólido, 2" (5cm) de largo. Diámetro de corte de .495". Diámetro de la caña de ½" (12.7mm). Hombro de 65°.
129.9 EUR 0 129,90 € *
Pedido pendiente, tiempo de entrega aproximado 4-12 semanas desde el almacén de EE. UU.
Caracteristicas: Grados: 65

Atributos

Grados: 65 Peso de entrega: 0,045kg Altura de envío: 15mm Ancho de envío: 74mm Longitud de envío: 224mm

Detalles del artículo

Hecho en USA



65\ Shoulder x .495"
These cutters are specially designed by us and made to our specifications for cutting the sight base slot required to mount the Wichita and Novak Lo-Mount 1911 Auto sights. Use ¼" carbide end mill to remove the bulk of the material (see drawing above) then make final dovetail cut. Final cut to lower rear of slide is done with an end mill and is not a part of the sight base cut. Made slightly undersized to compensate for variations in sight bases and milling tolerances on installation. With the popularity of custom 1911 Auto Pistols, this cutter is one that you will use frequently in your custom work. CAUTION: For use in milling machine only. Much harder and longer-lasting than HSS cutter. Use on hardened Colt factory slides. Solid carbide, 2" (5cm) long. .495" diameter cut. ½" (12.7mm) diameter shank. 65° shoulder.
