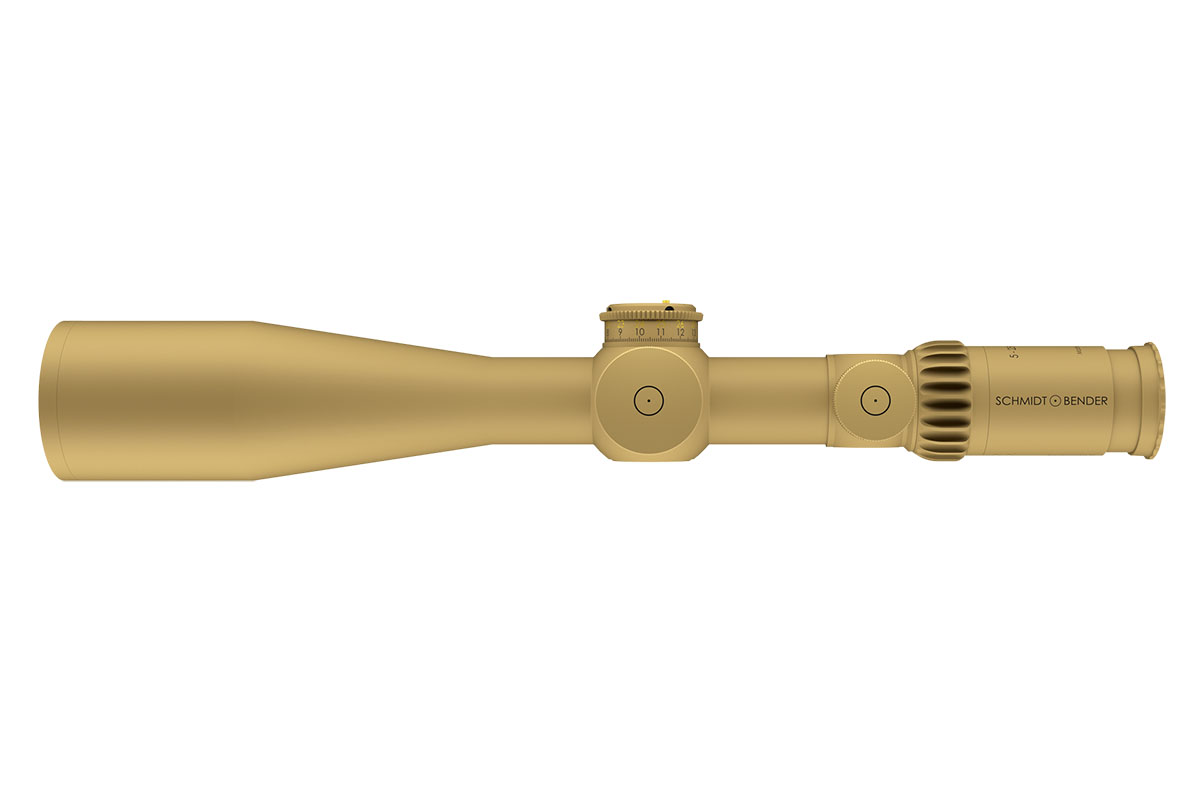

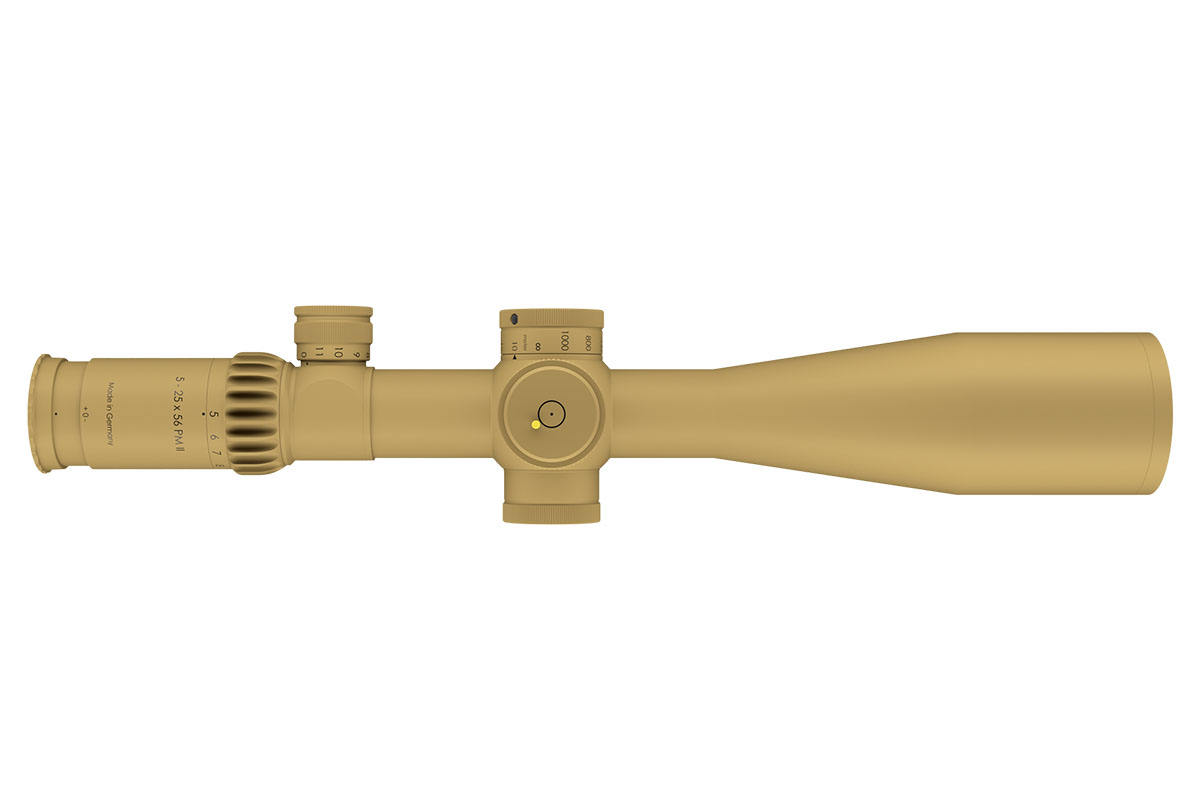

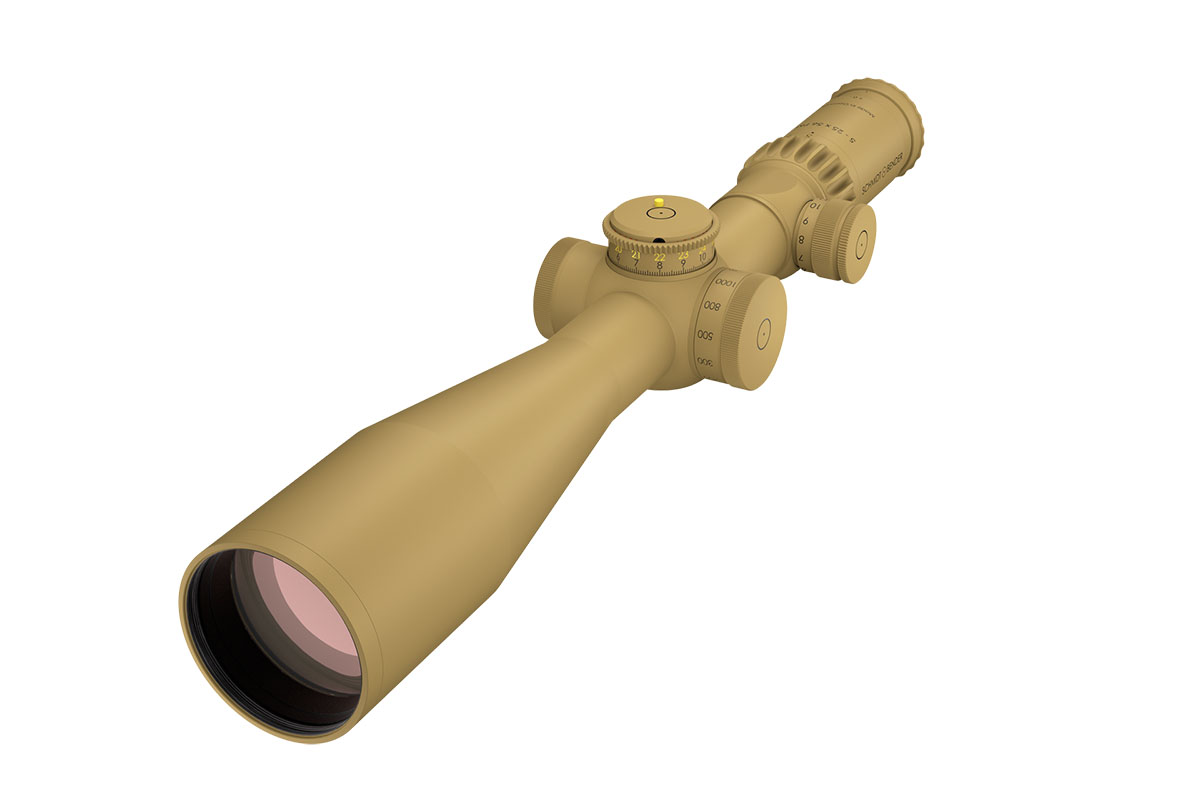

The 5‑25×56 PM II from Schmidt and Bender stands at the pinnacle of variable‑magnification tactical optics, engineered for long‑range precision, outstanding clarity and professional‑level reliability. With a wide 5–25× zoom range and a substantial 56 mm objective lens, it delivers exceptional light‑gathering capability, enabling crisp, bright imagery even at extended distances.
Built upon a rugged 34 mm main tube, the scope accommodates large internal adjustment ranges and is designed for demanding use. It features a reticle in the first focal plane (FFP) so that scale and hold‑offs remain accurate at any magnification. The field of view spans approximately 5.3–1.5 m at 100 m, while the exit pupil ranges around 11.0–2.3 mm, and the eye relief remains generous at around 90 mm. The parallax adjustment typically extends from 10 m to infinity, enabling accurate focus from very close ranges through to extreme distances.
The turret system is engineered for precision: click values as fine as 0.1 mrad (≈1 cm at 100 m) are available, and a double‑turn elevation turret combined with single‑turn windage allows vast usable correction ranges for wind and elevation. Optical transmission exceeds 90 %, and the construction is nitrogen‑filled, fog‑ and waterproof, ensuring full reliability in all climatic conditions.
Key Specifications:
Magnification: 5–25×
Objective Lens Diameter: 56 mm
Main Tube Diameter: 34 mm
Field of View: approx. 5.3–1.5 m @100 m
Exit Pupil: approx. 11.0–2.3 mm
Eye Relief: approx. 90 mm
Parallax Adjustment: from ~10 m to infinity
Click Value: approx. 0.1 mrad (≈1 cm at 100 m)
Optical Transmission: > 90 %
Crafted in Germany to the highest standards, the 5‑25×56 PM II is the go‑to choice for military, law‑enforcement and competition shooters who demand absolute clarity, mechanical integrity and extreme flexibility in one optic.
La óptica táctica definitiva para precisión a larga distancia
El 5–25×56 PM II de SCHMIDT U. BENDER se posiciona en la cúspide de las ópticas tácticas de aumento variable, diseñado para la precisión a larga distancia, claridad excepcional y fiabilidad a nivel profesional. Con un amplio rango de zoom de 5–25× y un objetivo de 56 mm, ofrece una capacidad de recolección de luz sobresaliente, permitiendo imágenes nítidas y brillantes incluso a distancias extendidas.
Características destacadas
- Tubo principal robusto: 34 mm, que permite amplios rangos de ajuste interno y está diseñado para un uso exigente.
- Retículo en el primer plano focal (FFP): garantiza que la escala y las compensaciones se mantengan precisas en cualquier aumento.
- Campo de visión: aproximadamente 5.3–1.5 m a 100 m.
- Pupila de salida: aproximadamente 11.0–2.3 mm.
- Alivio ocular: aproximadamente 90 mm, asegurando comodidad durante el uso prolongado.
- Ajuste de paralaje: desde ~10 m hasta el infinito, permitiendo un enfoque preciso desde distancias muy cercanas hasta extremos.
- Valores de clic: tan finos como 0.1 mrad (≈1 cm a 100 m).
- Transmisión óptica: superior al 90%.
- Construcción: llena de nitrógeno, a prueba de niebla y agua, asegurando fiabilidad total en todas las condiciones climáticas.
Fabricado en Alemania bajo los más altos estándares, el 5–25×56 PM II es la elección preferida para militares, fuerzas del orden y tiradores de competición que exigen claridad absoluta, integridad mecánica y flexibilidad extrema en una sola óptica.
