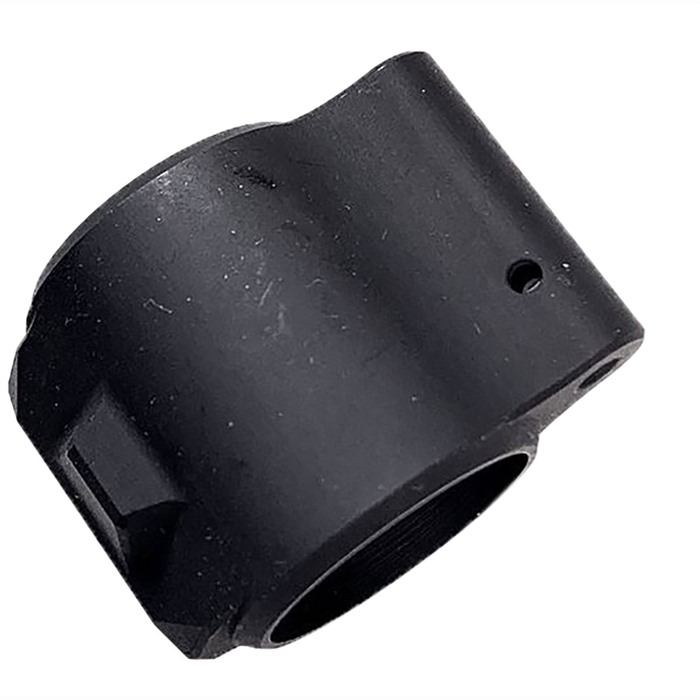

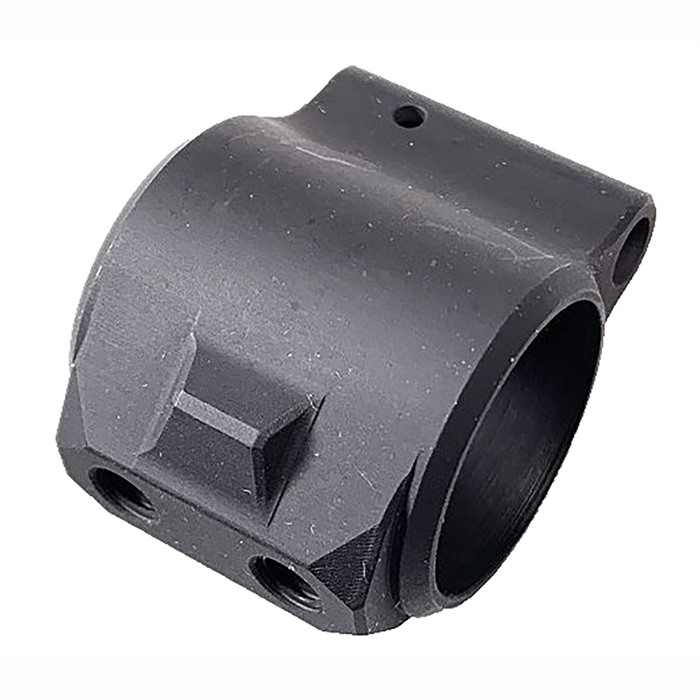

GBF (Gas Block Forward Controls) is a 0.750 gas journal gas block done FCD way: meticulously designed and machined, with thoughtful features throughout. Machined from heat treated 4140 bar stock, GBF is manganese phosphate coated, GBF holds rather tight tolerances to squeeze every bit of tight seal we can from the design. GBF's gas tube hole can be described as semi blind hole, in that it has an access port just big enough to allow a 3/32 punch to go through. This feature was suggested by the late Semper Paratus Arms owner and operator, Will Larson, its purpose is to minimize the gas tube hole as much as possible, while providing a means for users to use a punch to dislodge an recalcitrant gas tube that's been fixed in place by carbon. Other useful feature is the bosses on both sides of the GBF to give gunsmiths an easy reference point to pin the GBF to the barrel. Both 5/32x5/8, and 1/8x5/8 pins can be used to pin the GBF to the barrel. Its set screws are 0.450 apart, which is compatible with one of the set screw spacing options on the popular SLR Rifleworks's 750 dimpling jig. GBF isn't meant to be a lightweight gas block, they prefer strength and dependability over any ever-changing fad. GBF's sleek appearance is the result of removing material that adds weight but doesn't contribute to the strength and reliability. A gas tube pin, two knurled set screws are included. 5/32x5/8, and 1/8x5/8 coiled pins are a no cost option. Proudly designed and made in the USA." "Billet machined Heat treated Parkerized 0.750 AR15/M16 low profile gas block 3/32 punch access port in front Knurled set screws and gas tube pin included
Descubre el Gas Block AR-15 .750" de FORWARD CONTROLS DESIGN
El GBF (Gas Block Forward Controls) es un gas block de 0.750 diseñado y mecanizado de manera meticulosa, con características pensadas para ofrecer un rendimiento óptimo.
Descripción del Producto
- Mecanizado a partir de barra de acero 4140 tratado térmicamente.
- Acabado en fosfato de manganeso para mayor durabilidad.
- Tolerancias ajustadas para asegurar un sellado óptimo.
- El orificio para el tubo de gas es un agujero semi ciego, con un puerto de acceso lo suficientemente grande para permitir el paso de un punzón de 3/32.
- Esta característica fue sugerida por el difunto Will Larson, propietario y operador de Semper Paratus Arms, con el fin de minimizar el tamaño del orificio del tubo de gas y facilitar el desalojo de tubos atascados por carbono.
- Dispone de soportes en ambos lados para facilitar a los armeros la fijación del GBF al cañón.
- Compatible con pasadores de 5/32x5/8 y 1/8x5/8 para la fijación.
- Los tornillos de ajuste están separados 0.450, lo que es compatible con una de las opciones de espaciado de tornillos del popular jig de dimple SLR Rifleworks.
- No se trata de un gas block ligero; se prioriza la resistencia y la fiabilidad sobre las modas pasajeras.
- Su apariencia elegante es el resultado de eliminar material que añade peso sin contribuir a la resistencia.

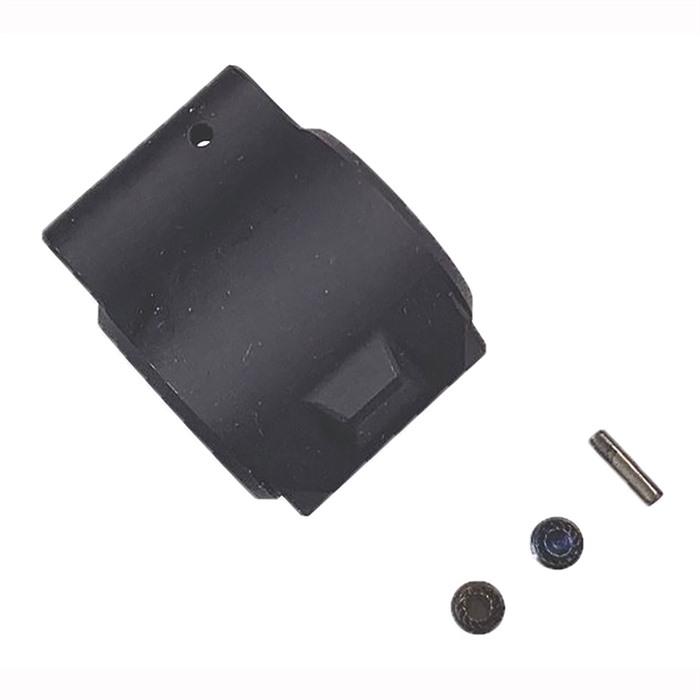

Incluye un pasador para el tubo de gas y dos tornillos de ajuste estriados. Los pasadores de 5/32x5/8 y 1/8x5/8 son una opción sin costo adicional.
Diseñado y fabricado orgullosamente en los EE. UU.
