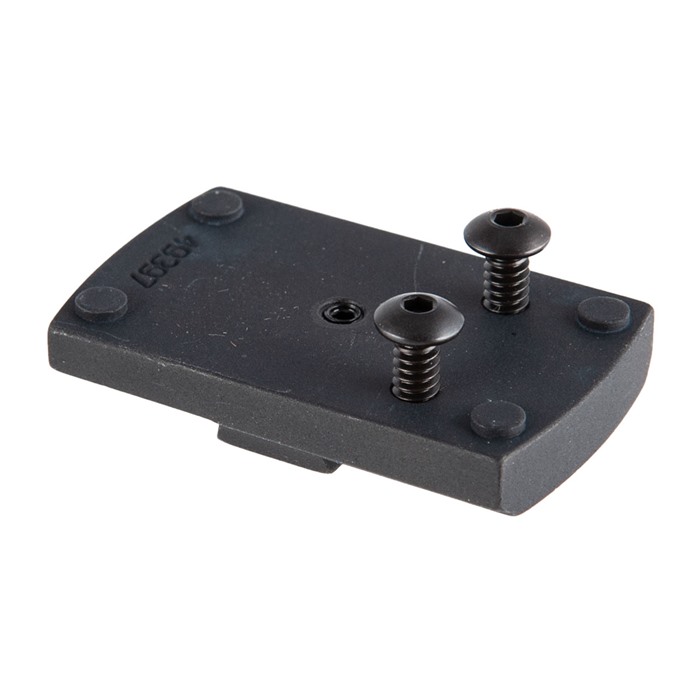

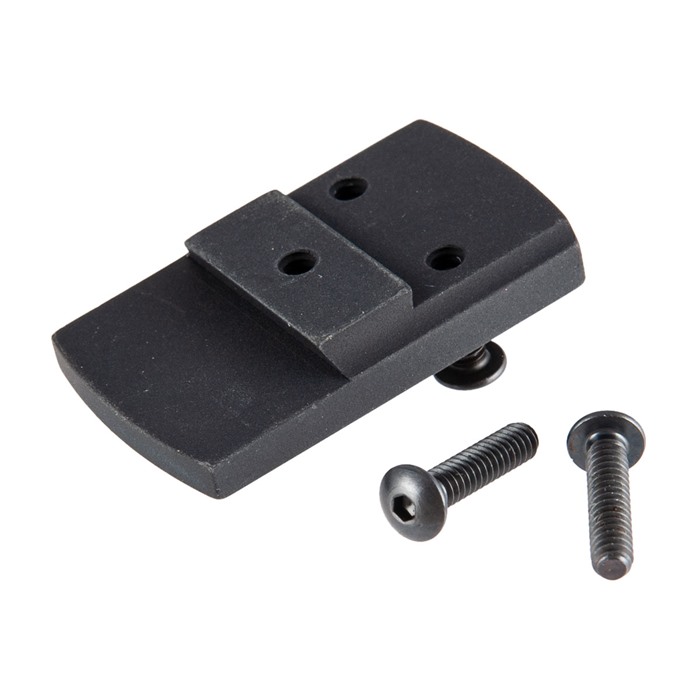

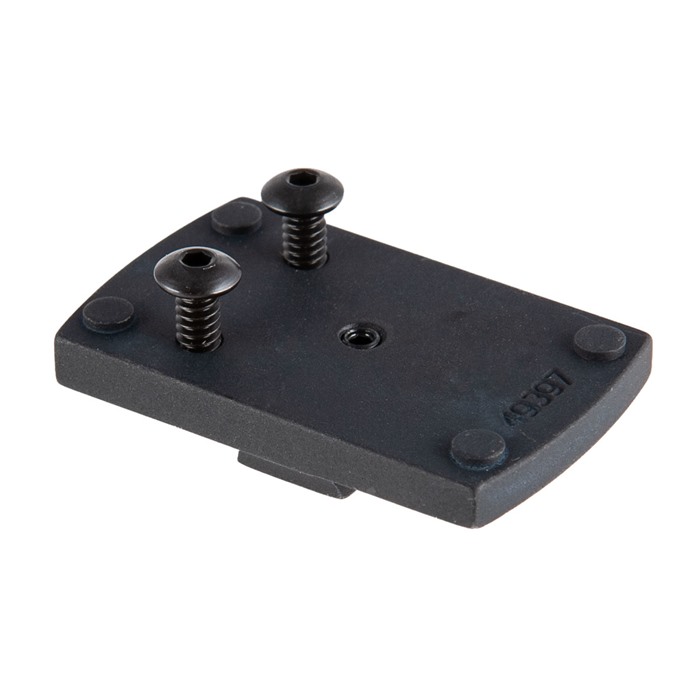

Material: 7075 Aluminum Coating: Matte Black Hardcoat Overall Length: 1.604" Overall Width: .99" Mounting Hardware: (2) 6-32 Button Head Screws, (2) 6-32 Flat Head Screws, (1) 6-32 Set Screw Red Dot Fitment: Vortex Viper/Venom, Burris FastFire, Crimson Trace CTS-1200, CTS-1300, Docter EGW's red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install. Simply remove the rear sight on your gun and replace it with our mount in order to mount yourVortex Viper/Venom, Burris FastFire, or Docter red-dot sight. No alterations are required. You can take our mount off and replace your rear sight at any time. Mounting hardware included. Installation Instructions Remove the rear sight* Install the EGW Sight Mount in the dovetail Tighten set screw (if applicable) Place the red dot sight on the EGW Sight Mount (placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.) Apply blue Loctite to the provided mounting screws Torque mounting screws to 15in/lbs 2 Button Head Cap Screws - Provided for Vortex Viper and Venom Sights 2 Flat Head Cap Screws - Provided for Burris FastFire and Docter Sights The screws that are included with this mount require a 5/64'' allen wrench for installation.
Mejora tu precisión con el montaje de punto rojo EGW para CZ Shadow 2.
El CZ SHADOW 2 LEUPOLD DELTAPOINT PRO SIGHT MOUNT y el CZ SHADOW 2 VORTEX LEUPOLD DELTAPOINT PRO SIGHT MOUNT son accesorios imprescindibles para los entusiastas de las armas que buscan mejorar su puntería.
Descripción del producto
- Material: Aluminio 7075
- Revestimiento: Acabado negro mate duro
- Longitud total: 1.604"
- Anchura total: .99"
- Hardware de montaje:
- (2) Tornillos de cabeza de botón 6-32
- (2) Tornillos de cabeza plana 6-32
- (1) Tornillo de ajuste 6-32
- Ajuste de punto rojo: Vortex Viper/Venom, Burris FastFire, Crimson Trace CTS-1200, CTS-1300, Docter
Los puntos rojos de EGW están diseñados para ser instalados de izquierda a derecha (con el cañón hacia adelante). La cola de milano tiene un ángulo progresivo para facilitar la instalación. Simplemente quita la mira trasera de tu arma y reemplázala con nuestro montaje para instalar tu punto rojo Vortex Viper/Venom, Burris FastFire o Docter. No se requieren alteraciones. Puedes quitar nuestro montaje y volver a colocar tu mira trasera en cualquier momento. Hardware de montaje incluido.
Instrucciones de instalación
- Retira la mira trasera*
- Instala el montaje de mira EGW en la cola de milano
- Ajusta el tornillo de ajuste (si aplica)
- Coloca el punto rojo en el montaje de mira EGW (colocar un pequeño trozo de papel entre el punto rojo y el montaje facilitará la extracción y evitará que el Loctite se adhiera al punto rojo).
- Aplica Loctite azul a los tornillos de montaje proporcionados
- Ajusta los tornillos de montaje a 15 in/lbs
Nota: Este montaje incluye:
- 2 Tornillos de cabeza de botón - Proporcionados para las miras Vortex Viper y Venom
- 2 Tornillos de cabeza plana - Proporcionados para las miras Burris FastFire y Docter
Los tornillos incluidos con este montaje requieren una llave allen de 5/64'' para la instalación.
