EGW's red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install. Simply remove the rear sight on your gun and replace it with mount in order to mount your Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. You can take the mount off and replace your rear sight at any time. Mounting hardware included. Installation Instructions Remove the rear sight* Install the EGW Sight Mount in the dovetail Tighten set screw (if applicable) Place the red dot sight on the EGW Sight Mount (placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.) Apply blue Loctite to the provided mounting screws Torque mounting screws to 15in/lbs 2 Button Head Cap Screws - Provided for Vortex Viper and Venom Sights 2 Flat Head Cap Screws - Provided for Burris FastFire and Docter Sights The screws that are included with this mount require a 5/64'' allen wrench for installation. Modification of your firearm may nullify the manufacturer's warranty. This product should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product. This mount fits: Smith & Wesson Model 52 This mount does not fit: Smith & Wesson Model 41
Mejora tu puntería con el montaje de mira S&W 52 VORTEX VIPER/VENOM

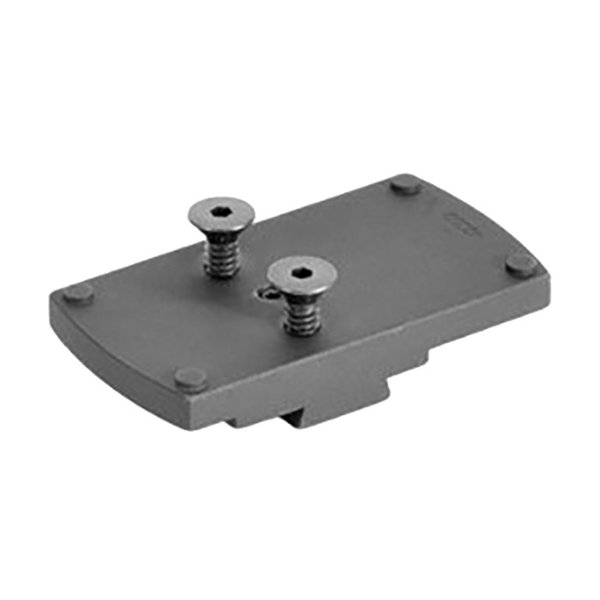

El montaje de mira S&W 52 VORTEX VIPER/VENOM de EGW es la solución perfecta para instalar tu mira de punto rojo de manera sencilla y efectiva.
Descripción del producto
Las miras de punto rojo de EGW están diseñadas para ser instaladas de izquierda a derecha (con el cañón apuntando hacia adelante). La base tiene un ángulo progresivo que facilita la instalación. Simplemente retira la mira trasera de tu arma y reemplázala con el montaje para poder instalar tu Vortex Viper/Venom, Burris FastFire o Docter red-dot sight. Puedes quitar el montaje y volver a colocar tu mira trasera en cualquier momento. Se incluye el hardware de montaje.
Instrucciones de instalación
- Retira la mira trasera*
- Instala el EGW Sight Mount en la base
- Ajusta el tornillo de fijación (si corresponde)
- Coloca la mira de punto rojo en el EGW Sight Mount (colocar un pequeño trozo de papel entre la mira de punto rojo y el montaje facilitará su remoción y evitará que el Loctite se adhiera a la mira de punto rojo).
- Aplica Loctite azul a los tornillos de montaje proporcionados
- Ajusta los tornillos de montaje a 15in/lbs
Incluye:
- 2 tornillos de cabeza de botón - Proporcionados para las miras Vortex Viper y Venom
- 2 tornillos de cabeza plana - Proporcionados para las miras Burris FastFire y Docter
Los tornillos incluidos con este montaje requieren una llave Allen de 5/64'' para la instalación.
La modificación de tu arma de fuego puede anular la garantía del fabricante.
Este producto debe ser instalado y revisado por un armero calificado.
No se expresa ni se implica ninguna responsabilidad por daños o lesiones que puedan resultar de una instalación o uso inadecuado de este producto.
Este montaje es compatible con:
Este montaje no es compatible con:
