EGW red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install. Simply remove the rear sight on your gun and replace it with EGW mount in order to mount your Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. You can take the mount off and replace your rear sight at any time. Mounting hardware included. Installation Instructions Remove the rear sight* Install the EGW Sight Mount in the dovetail Tighten set screw (if applicable) Place the red dot sight on the EGW Sight Mount (placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.) Apply blue Loctite to the provided mounting screws Torque mounting screws to 15in/lbs 2 Button Head Cap Screws - Provided for Vortex Viper and Venom Sights 2 Flat Head Cap Screws - Provided for Burris FastFire and Docter Sights The screws that are included with this mount require a 5/64'' allen wrench for installation. Modification of your firearm may nullify the manufacturer's warranty. This product should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product. This Mount does not fit: Smith & Wesson M&P C.O.R.E Series (Already optics ready) Smith & Wesson M&P Shield EZ .380 Smith & Wesson M&P .22 Compact Smith & Wesson SW9VE Smith & Wesson SW40VE
Montura para miras S&W M&P Vortex Viper/Venom: ¡Instalación fácil y rápida!

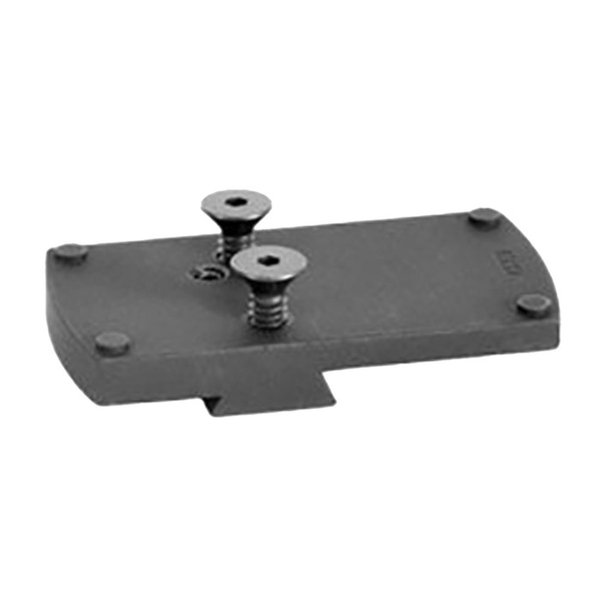

La montura EGW para miras rojas está diseñada para ser instalada de izquierda a derecha (con el cañón apuntando hacia adelante). Su diseño con un dovetail de inclinación progresiva facilita la instalación. Simplemente retira la mira trasera de tu arma y reemplázala con la montura EGW para poder montar tu Vortex Viper/Venom, Burris FastFire, o Docter.
La montura se puede quitar y reemplazar con la mira trasera en cualquier momento. Incluye hardware de montaje.
Instrucciones de Instalación
- Retira la mira trasera*
- Instala la montura EGW en el dovetail
- Ajusta el tornillo de fijación (si aplica)
- Coloca la mira roja en la montura EGW (colocar un pequeño trozo de papel entre la mira roja y la montura facilitará su remoción y evitará que el Loctite se adhiera a la mira).
- Aplica Loctite azul a los tornillos de montaje proporcionados
- Ajusta los tornillos de montaje a 15 in/lbs
Incluye:
- 2 Tornillos de Cabeza de Botón - Proporcionados para miras Vortex Viper y Venom
- 2 Tornillos de Cabeza Plana - Proporcionados para miras Burris FastFire y Docter
Los tornillos incluidos requieren una llave allen de 5/64'' para la instalación. La modificación de tu arma puede anular la garantía del fabricante. Este producto debe ser instalado y verificado por un armero calificado. No se expresa ni se implica ninguna responsabilidad por daños o lesiones que puedan resultar de una instalación o uso inadecuado de este producto.
Esta montura no es compatible con:
- Smith & Wesson M&P C.O.R.E Series (Ya preparada para ópticas)
- Smith & Wesson M&P Shield EZ .380
- Smith & Wesson M&P .22 Compact
- Smith & Wesson SW9VE
- Smith & Wesson SW40VE
