EGW red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install. Simply remove the rear sight on your gun and replace it with EGW mount in order to mount yourVortex Viper/Venom, Burris FastFire, or Docter red-dot sight. No alterations are required. You can take the mount off and replace your rear sight at any time. Mounting hardware included. Installation Instructions Remove the rear sight* Install the EGW Sight Mount in the dovetail Tighten set screw (if applicable) Place the red dot sight on the EGW Sight Mount (placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.) Apply blue Loctite to the provided mounting screws Torque mounting screws to 15in/lbs 2 Button Head Cap Screws - Provided for Vortex Viper and Venom Sights 2 Flat Head Cap Screws - Provided for Burris FastFire and Docter Sights The screws that are included with this mount require a 5/64'' allen wrench for installation. Modification of your firearm may nullify the manufacturer's warranty. This product should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.
¡Mejora tu puntería con el soporte de mira WALTHER 22 VORTEX VIPER/VENOM!

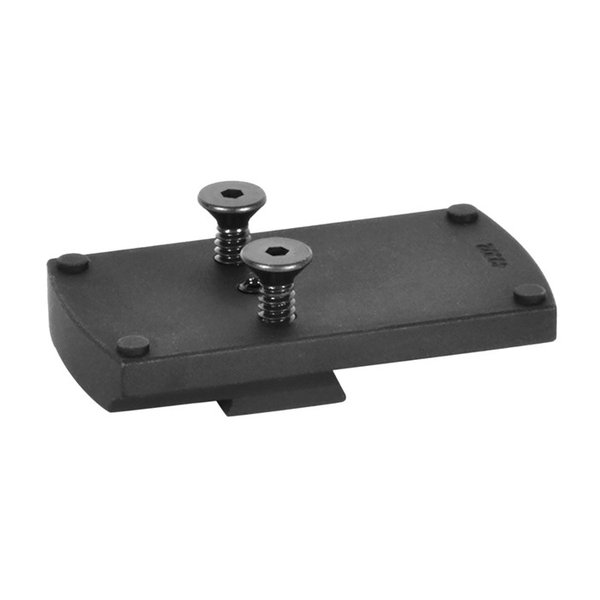

El soporte de mira EGW para Vortex Viper/Venom está diseñado para ser instalado de izquierda a derecha (con el cañón apuntando hacia adelante). Este soporte tiene un diseño de cola de milano con un ángulo progresivo que facilita su instalación.
Descripción del Producto
Simplemente retira la mira trasera de tu arma y reemplázala con el soporte EGW para montar tu Vortex Viper/Venom, Burris FastFire o Docter. No se requieren modificaciones en tu arma. Puedes quitar el soporte y volver a colocar tu mira trasera en cualquier momento. El hardware de montaje está incluido.
Instrucciones de Instalación
- Retira la mira trasera*
- Instala el soporte de mira EGW en la cola de milano
- Ajusta el tornillo de fijación (si es aplicable)
- Coloca la mira de punto rojo en el soporte EGW (poner un pequeño trozo de papel entre la mira de punto rojo y el soporte facilitará su remoción y evitará que el Loctite se adhiera a la mira de punto rojo).
- Aplica Loctite azul a los tornillos de montaje proporcionados
- Ajusta los tornillos de montaje a 15 in/lbs
2 Tornillos de Cabeza de Botón - Proporcionados para las miras Vortex Viper y Venom
2 Tornillos de Cabeza Plana - Proporcionados para las miras Burris FastFire y Docter
Los tornillos incluidos con este soporte requieren una llave allen de 5/64'' para su instalación. La modificación de tu arma puede anular la garantía del fabricante.
Este producto debe ser instalado y revisado por un armero calificado. No se expresa ni se implica ninguna responsabilidad por daños o lesiones que puedan resultar de una instalación o uso incorrecto de este producto.
