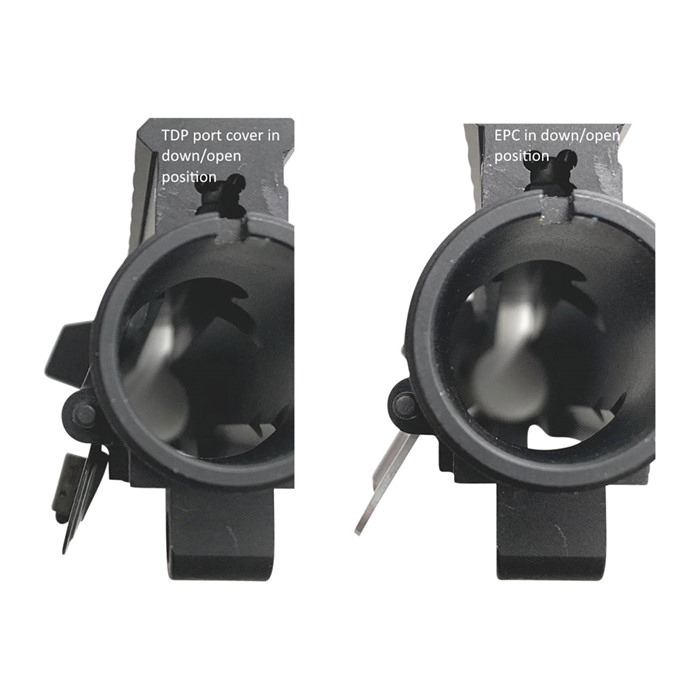

EPC (Ejection Port Cover) is based on TDP dimensions, with thoughtful Forward Control touches. Billet machined from 7075 aluminum, and hard coat Type III anodized, it incorporates features Forward Controls Design think many will find useful. EPC has two "tabs" flanking the cutout for the port cover spring. These tabs allow the EPC to rest on the upper at a greater angle when it's in the down/open position, which provides more space between the port cover and lower receiver. Their job is to better allow the user's finger to get underneath the port cover when he wishes to swing it up/close. Another feature is a shallow circular depression on the side of the EPC to provide texture tactile feedback to the user's finger when he's closing the EPC. A flat surface provides nothing to the user to differentiate one surface from another, it also provides no traction. A shallow circular depression on the left side of the EPC does both. Forward Controls Design incorporate flat surfaces with care as they have their uses . In this case, EPC's exterior surface is treated as a control surface, where a flat surface rarely makes sense. EPC is compatible with TDP spec upper receivers. Weight: 0.30oz. Material: 7075 Construction and coating: billet, type III anodized. Proudly designed and made in the USA. NOTE: Initial closing and opening of EPC may be stiff, this is normal, and will become easier with 2 or 3 closing/opening cycles. Proudly designed and made in the USA.
Cubierta de puerto de eyección con un solo dimple, diseño de calidad superior
La EPC (Ejection Port Cover) está basada en las dimensiones TDP, con toques pensados de Forward Control. Fabricada en aluminio 7075 mediante mecanizado de billet y anodizado duro tipo III, incorpora características que Forward Controls Design cree que muchos encontrarán útiles.
Características destacadas:
- Diseño funcional: La EPC tiene dos "pestañas" a los lados del corte para el resorte de la cubierta del puerto. Estas pestañas permiten que la EPC repose sobre el receptor superior en un ángulo mayor cuando está en la posición baja/abierta, proporcionando más espacio entre la cubierta del puerto y el receptor inferior.
- Facilidad de uso: Su función es facilitar que el dedo del usuario se coloque debajo de la cubierta del puerto cuando desea levantarla/cerrarla.

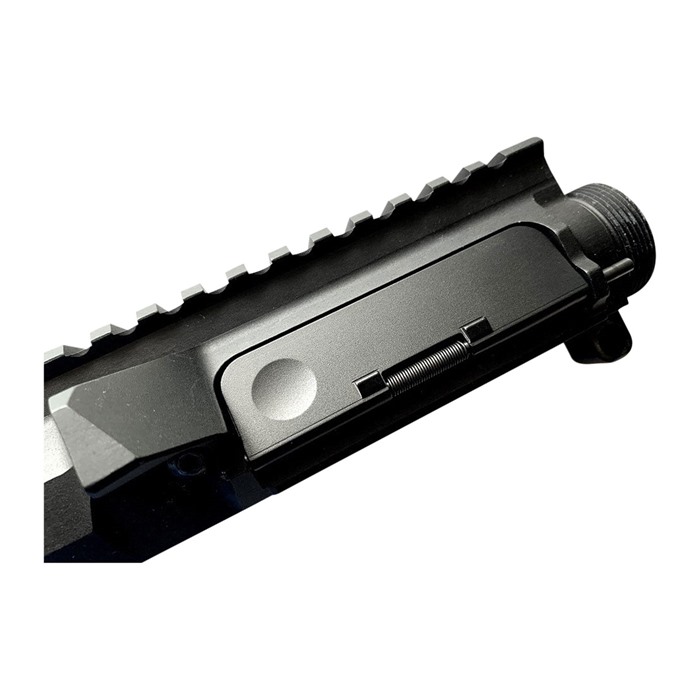

- Textura táctil: Incluye una depresión circular poco profunda en el lado de la EPC que proporciona retroalimentación táctil al dedo del usuario al cerrar la EPC. Una superficie plana no ofrece nada al usuario para diferenciar una superficie de otra y tampoco proporciona tracción. Esta depresión circular en el lado izquierdo de la EPC cumple ambas funciones.
- Compatibilidad: La EPC es compatible con receptores superiores según las especificaciones TDP.
Peso: 0.30 oz
Material: 7075
Construcción y recubrimiento: billet, anodizado tipo III
Fabricado orgullosamente en EE. UU.
Nota: El cierre y apertura inicial de la EPC puede ser rígido, esto es normal y se volverá más fácil después de 2 o 3 ciclos de cierre/apertura.
