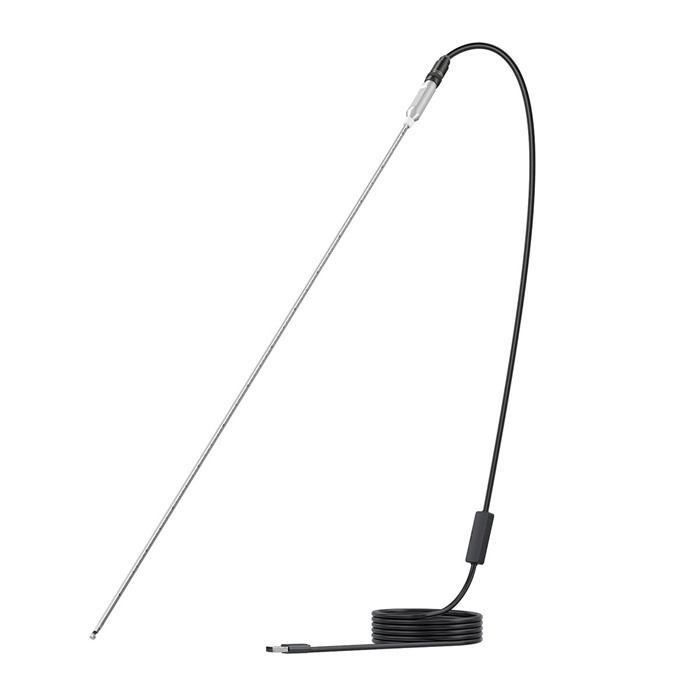

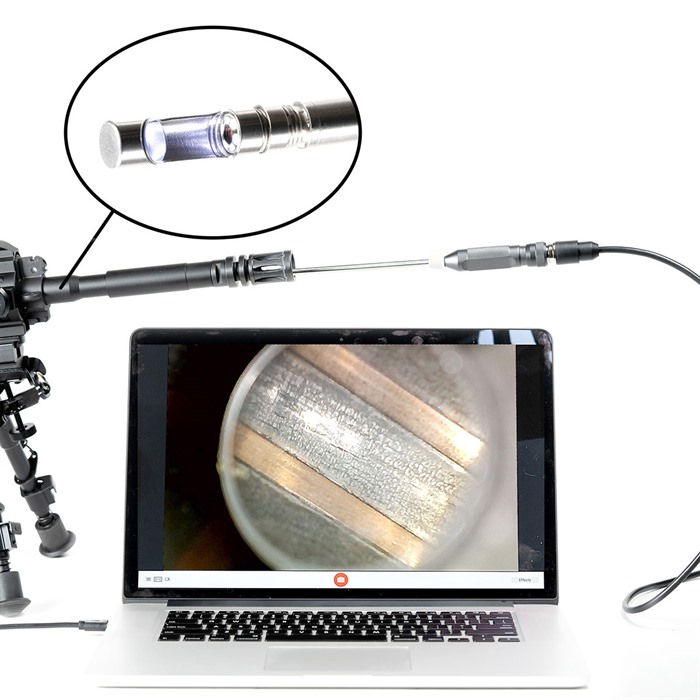

The TESLONG NTG100H 26-inch long rigid rifle borescope is an ideal gunsmith tool that helps verify how well your rifle barrel has been cleaned. Carbon deposits build up as you shoot and can degrade your accuracy. This borescope helps you see the deposits in the lands and grooves of the rifling and is a great aid when cleaning your barrel. INNOVATIVE CLOSE-FOCUSING CAMERA SIDE-VIEW MIRROR With an adjustable, detachable, 90° side-view mirror, you can check the barrel wall, or remove it to check the firing pin. 6-LED RING LIGHTS Adjustable for brightness and give the camera a perfect view of the darkest inspection areas. 26-INCH RIGID PROBE The 26-inch-long alloy inspection rod includes a measuring scale to determine the camera location in the barrel. FITS 0.22 CALIBER AND LARGER The 0.2-inch flexible diameter probe allows easy entry into rifle barrels as small as .22 caliber. Technical Specs Model Number: NTG100H Probe Type: Rigid stainless steel rod probe Diameter: 0.197 in (5 mm) Probe Length: 26 in (66 cm) Data cable Length: 60 in (150 cm) Megapixel: 1.0 Megapixel Resolution: 1280x720 pixel Viewing Angle: 70° Depth of Field of the camera WITHOUT side-view mirror: 1.18 in to 3.94 in (30 mm to 100 mm) Depth of Field of the camera WITH 0.2 in (5 mm) side-view mirror: With lock ring on: 0 in to 0.28 in (0 mm to 7 mm) Without lock ring: 0 in to 0.39 in (0 mm to 10 mm) Depth of Field of the camera WITH 0.28 in (7 mm) side-view mirror: With lock ring on: 0 in to 0.08 in (0 mm to 2 mm) Without lock ring: 0 in to 0.16 in (0 mm to 4 mm) Depth of Field of the camera WITH 0.33 in (8.3 mm) side-view mirror: With lock ring on: 0 in to 0.08 in (0 mm to 2 mm) Without lock ring: 0 in to 0.14 (0 mm to 3.5 mm) Depth of Field of the camera WITH 0.47 in (12 mm) side-view mirror: With lock ring on: 0 in to 0.06 in (0 mm to 1.5 mm) Without lock ring: 0 in to 0.12 in (0 mm to 3 mm) Caliber (depends on the size of the side-view mirror you use): 0.22 in (5 mm) Caliber and larger 0.28 in (7 mm) Caliber and larger 0.33 in (8.3 mm) Caliber and larger 0.47 in (12 mm) Caliber and larger LED Light: 6 Adjustable High-intensity LEDs Splash, Water and Dust Resistant: Rated IP67 (maximum depth of 1-meter up to 30 minutes) under IEC standard 60529 What is in the Package? Borescope 3x 0.2 in (5 mm) Side-view Mirrors Aviation to USB-A Connector USB-C Adaptor
¡Descubre el borescope rígido NTG100H de 26 pulgadas de TESLONG!
El TESLONG NTG100H, un borescope rígido de 26 pulgadas, es la herramienta perfecta para armeros que desean verificar la limpieza de la cañón de su rifle. Con el tiempo, los depósitos de carbono se acumulan y pueden afectar tu precisión. Este borescope te permite visualizar estos depósitos en las estrías y surcos del estriado, siendo un gran aliado durante la limpieza de tu cañón.
Características destacadas:

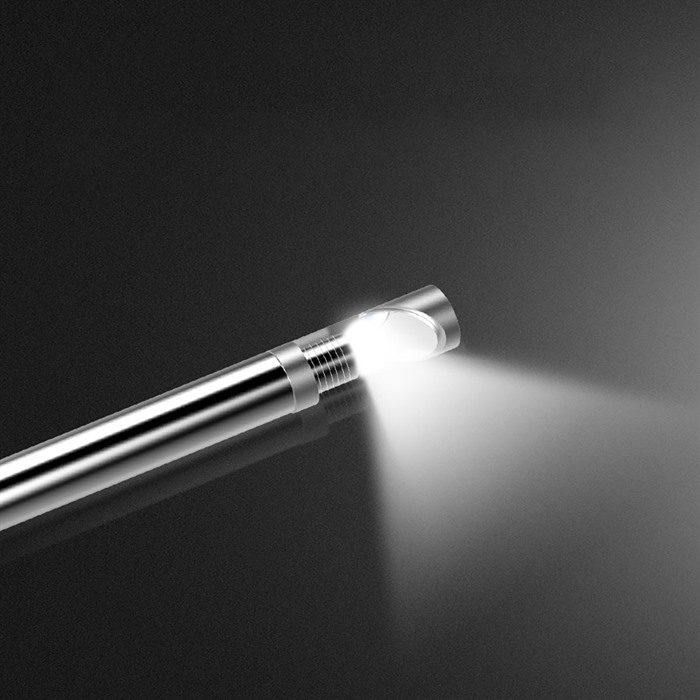

- Cámara innovadora con espejo lateral de enfoque cercano: Con un espejo lateral ajustable y desmontable de 90°, puedes inspeccionar la pared del cañón o retirarlo para revisar el percutor.
- 6 luces LED ajustables: Proporcionan la iluminación perfecta para las áreas de inspección más oscuras.

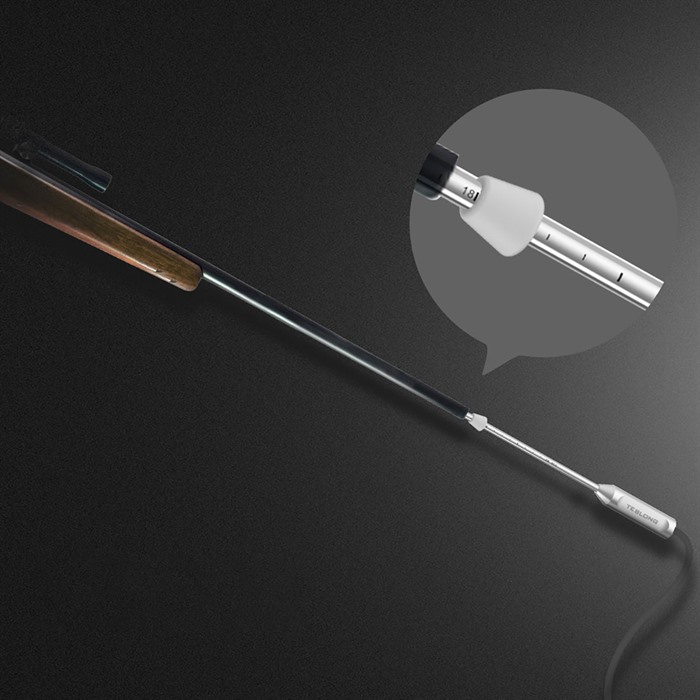

- Sonda rígida de 26 pulgadas: La varilla de inspección de aleación de 26 pulgadas incluye una escala de medición para determinar la ubicación de la cámara en el cañón.
- Compatible con calibres .22 y mayores: La sonda flexible de 0.2 pulgadas permite una fácil entrada en cañones de rifle tan pequeños como .22.
Especificaciones técnicas:
- Número de modelo: NTG100H
- Tipo de sonda: Sonda rígida de acero inoxidable
- Diámetro: 0.197 in (5 mm)
- Longitud de la sonda: 26 in (66 cm)
- Longitud del cable de datos: 60 in (150 cm)
- Megapíxeles: 1.0 Megapíxel
- Resolución: 1280x720 píxeles
- Ángulo de visión: 70°
Profundidad de campo de la cámara:
SIN espejo lateral: 1.18 in a 3.94 in (30 mm a 100 mm)
CON espejo lateral de 0.2 in (5 mm):
- Con anillo de bloqueo: 0 in a 0.28 in (0 mm a 7 mm)
- Sin anillo de bloqueo: 0 in a 0.39 in (0 mm a 10 mm)
CON espejo lateral de 0.28 in (7 mm):
- Con anillo de bloqueo: 0 in a 0.08 in (0 mm a 2 mm)
- Sin anillo de bloqueo: 0 in a 0.16 in (0 mm a 4 mm)
CON espejo lateral de 0.33 in (8.3 mm):
- Con anillo de bloqueo: 0 in a 0.08 in (0 mm a 2 mm)
- Sin anillo de bloqueo: 0 in a 0.14 in (0 mm a 3.5 mm)
CON espejo lateral de 0.47 in (12 mm):
- Con anillo de bloqueo: 0 in a 0.06 in (0 mm a 1.5 mm)
- Sin anillo de bloqueo: 0 in a 0.12 in (0 mm a 3 mm)
Calibres compatibles:
- 0.22 in (5 mm) y mayores
- 0.28 in (7 mm) y mayores
- 0.33 in (8.3 mm) y mayores
- 0.47 in (12 mm) y mayores
Características adicionales:
- Iluminación: 6 LEDs de alta intensidad ajustables
- Resistencia al agua y al polvo: Clasificación IP67 (profundidad máxima de 1 metro hasta 30 minutos) bajo la norma IEC 60529
¿Qué incluye el paquete?
- Borescope
- 3x Espejos laterales de 0.2 in (5 mm)

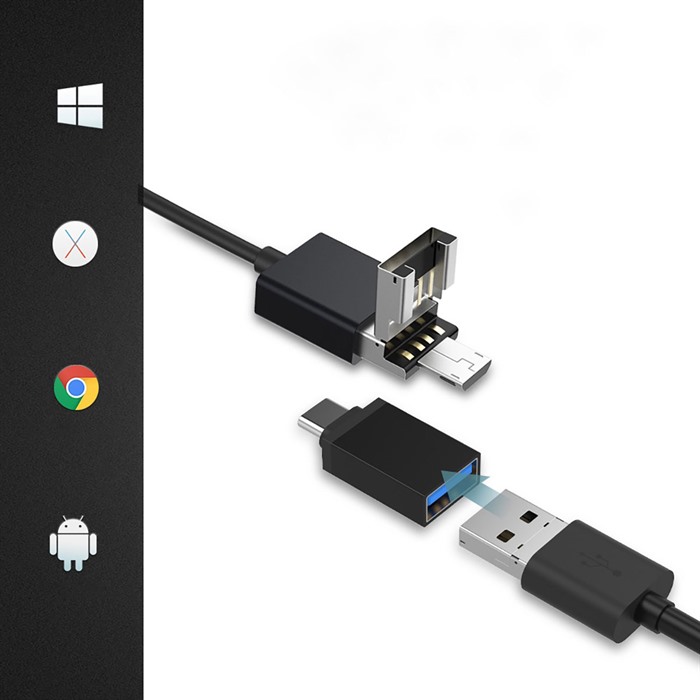

- Conector de aviación a USB-A
- Adaptador USB-C
