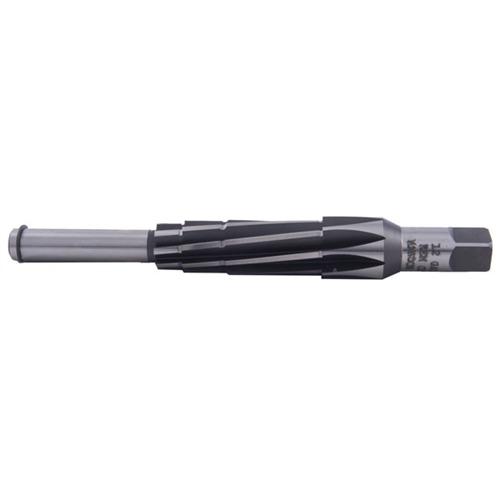

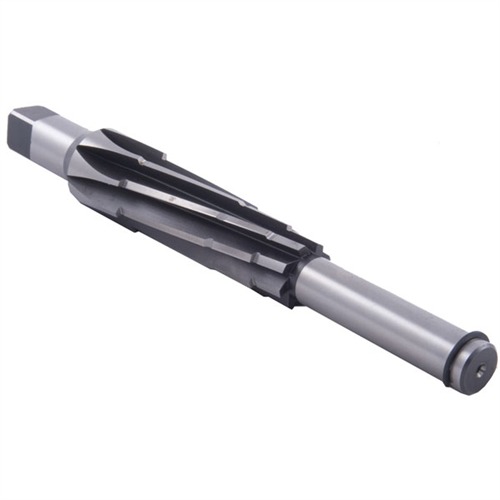

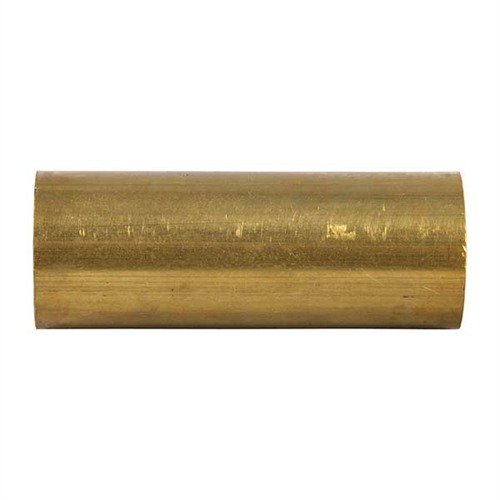

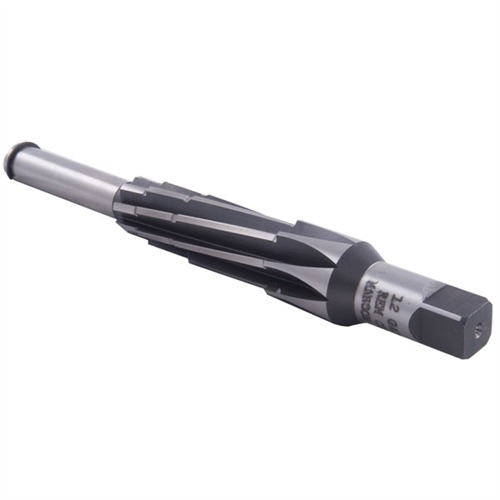

A quick and easy method to install choke tubes using a lathe (can be done by hand, however, a lathe gives superior results). Tap and reamer are precision ground from high speed steel and use the same interchangeable pilot bushings. Reamer has an enhanced end relief that provides a faster cut. Pilot bushings are available in diameter increments of .001", and are 2" long for accurate bore alignment. Factory instructions are included. Note: Read and understand the installation requirements on page 62 before proceeding. For best results, remove any existing choke with the Angle Blade Expanding Choke Reamer prior to using the Loon Lake Choke reamer. Click here for proper installation requirements.Uses the same tap and bushings as Win-Choke, requires a different reamer to position threads in a different location. Barrels threaded to this system accept Rem-Choke-style and Remington factory tubes.
SPECS: 12 gauge only. .814"-32 tpi.
Instalaciones rápidas y precisas de tubos de choke
El REM CHOKE-STYLE TOOLING, 12 GAUGE REM-CHOKE REAMER de MANSON PRECISION es un método rápido y fácil para instalar tubos de choke utilizando un torno (aunque se puede hacer a mano, un torno ofrece resultados superiores).
Descripción del producto
El tapón y el reamer están hechos de acero de alta velocidad y son de precisión, utilizando los mismos casquillos piloto intercambiables. El reamer cuenta con un alivio en el extremo mejorado que proporciona un corte más rápido. Los casquillos piloto están disponibles en incrementos de diámetro de .001" y tienen una longitud de 2" para una alineación precisa del cañón. Se incluyen instrucciones de fábrica.
Nota: Lee y comprende los requisitos de instalación en la página 62 antes de proceder. Para obtener los mejores resultados, quita cualquier choke existente con el Angle Blade Expanding Choke Reamer antes de usar el reamer de Loon Lake Choke. Haz clic aquí para los requisitos de instalación adecuados.
Utiliza el mismo tapón y casquillos que Win-Choke, pero requiere un reamer diferente para posicionar las roscas en una ubicación diferente. Los cañones roscados para este sistema aceptan tubos de estilo Rem-Choke y tubos de fábrica de Remington.
Especificaciones
- Solo para 12 gauge.
- .814"-32 tpi.
