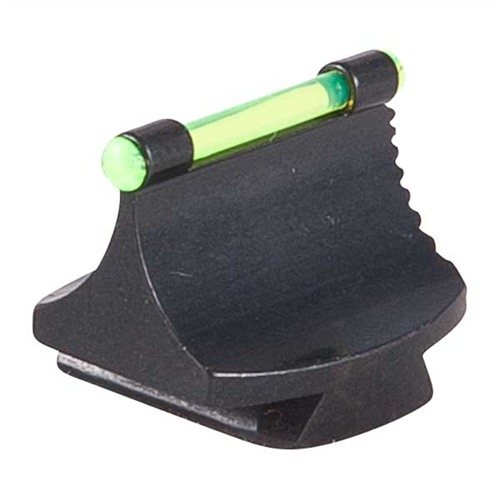

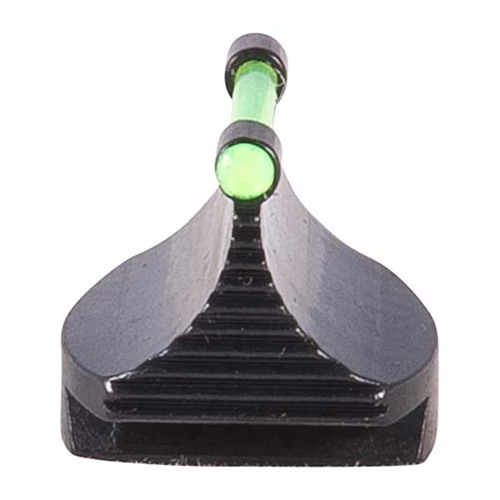

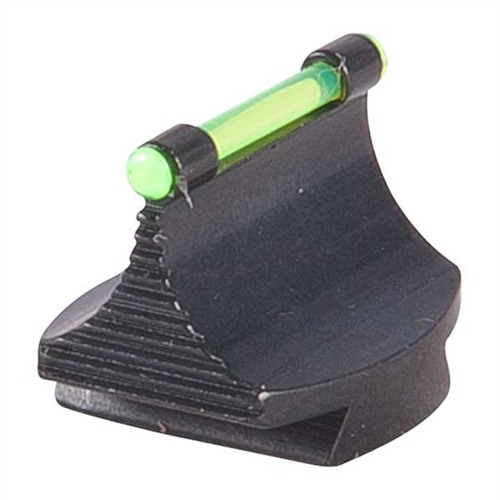

Precision-made sights for rifles, both with and without ramp bases. The blade is gracefully contoured, sloping toward the front. Made of steel and nicely blued to look good on any gun. GLOW SIGHTS: Two colors - Orange or Green .060" dia. optic rod. RAMP MOUNTED - .340 wide base.
SPECS: Steel, blue, polished finish. .620" (15mm) long. ORDERING: Select the sight height required using the Marbles and/or Williams charts and determine which Sight Style, Bead Type and Width is needed from the info above. Using the chart beside this copy, find the correct Marbles Sight and note the 9 digit Ordering No. For example: If you need a Contoured Ramp Front Sight, “MR” width, .290" (7.4mm) high, with a 1/16" (1.6mm) gold bead, follow the Height listing to the .290" figure, read across on the “MR” line to the 1/16" gold bead and note the number: 579-502-911. 1" = (2.54cm)
¡Mejora tu puntería con la mira RIFLE FIBER OPTIC GLOW!
Presentamos la mira RIFLE FIBER OPTIC GLOW 50-W FRONT SIGHT, diseñada con precisión para rifles, tanto con bases rampadas como sin ellas. La hoja tiene un contorno elegante que se inclina hacia el frente, fabricada en acero y con un acabado azul que combina perfectamente con cualquier arma.
Características destacadas:
- GLOW SIGHTS: Disponible en dos colores: Naranja o Verde con un diámetro de .060" (1.5mm) en la varilla óptica.
- RAMP MOUNTED: Base de .340" de ancho.
- Especificaciones: Acero, acabado azul pulido, longitud de .620" (15mm).
Cómo hacer tu pedido:
Selecciona la altura de la mira que necesitas utilizando las tablas de Marbles y/o Williams. Determina el estilo de mira, tipo de bead y ancho que requieres según la información anterior. Usando la tabla junto a este texto, encuentra la mira Marbles correcta y anota el número de pedido de 9 dígitos.
Por ejemplo: Si necesitas una Contoured Ramp Front Sight con un ancho de “MR”, altura de .290" (7.4mm) y un bead dorado de 1/16" (1.6mm), sigue la lista de alturas hasta el valor de .290", lee en la línea “MR” hasta el bead dorado de 1/16" y anota el número: 579-502-911.
Nota: 1" = 2.54cm
