The Patent Pending Arisaka Side Scout Mount MCX is designed specifically for the Surefire Scout Light M600 and M300 series weapon lights, the Modlite PLH and OKW weapon lights, the Arisaka 300, 600 and 18650 Series Lights, the Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), and Olight Odin. It replaces the stock Picatinny rail adapter with a low profile mount that tucks the light underneath either side of NGAL, ATPIAL-C, AN/PEQ15, and LA-5/PEQ laser/illuminators. It will also allow the light to clear the QD lever on the Steiner DBAL I2, A3, and D2. Designed primarily for the SIG MCX and MPX, the Side Scout Mount MCX will also work well on the B&T GHM and APC series, CZ Scorpion and Bren, IWI Tavor, and AR15 M-Lok handguards even without a laser. Compatible with the Modlite PLH, PLHv2 and OKW, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), Olight Odin, CD REIN, and Arisaka 300, 600 and 18650 Series. M620, M951/2 and M961/2 series lights can also be used with the Offset Scout Mount with the addition of the Arisaka Offset M620 Adapter. Length: 1.265" Weight: 0.4 oz The mount is CNC machined from 6061-T651 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach light body to mount. Requires an IP20 TorxPlus driver for installation (not included). A T9 Torx driver is required to remove the stock Picatinny mount from Surefire Scout Lights. Recommended torque: 30 inch lbs for M-Lok screws and 20 inch lbs for light body screws with Loctite 222 or 243. Hardware: Two M-Lok nuts, two 10-24x5/16" Torx button head screws, two 8-32x5/16" Torx flat head screws. Made in the USA.
¡Mejora tu equipo con el soporte lateral Arisaka!
El soporte lateral Arisaka Side Scout Mount MCX está diseñado específicamente para las luces de arma Surefire Scout M600 y M300, así como para las luces Modlite PLH y OKW, y las luces de la serie Arisaka 300, 600 y 18650. Este soporte también es compatible con el Streamlight Protac Rail Mount 1, 2 y HL-X (sin láser) y Olight Odin.
Características destacadas:

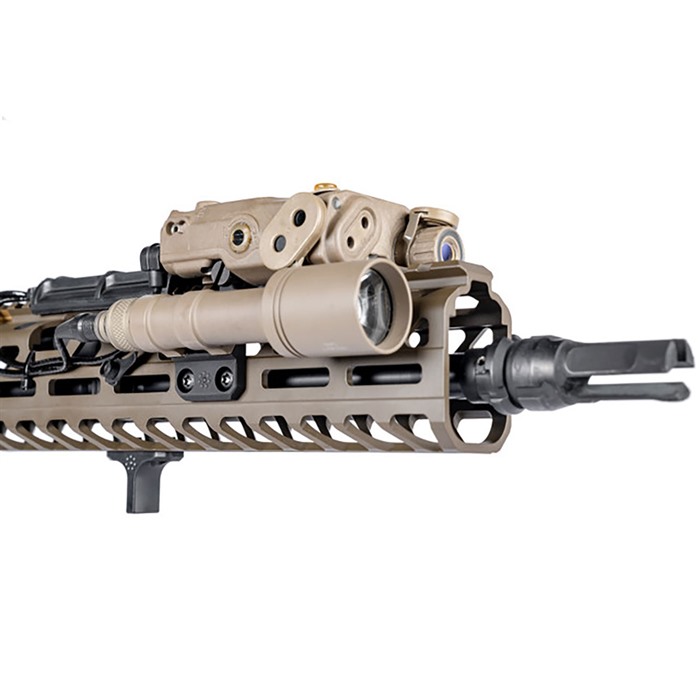

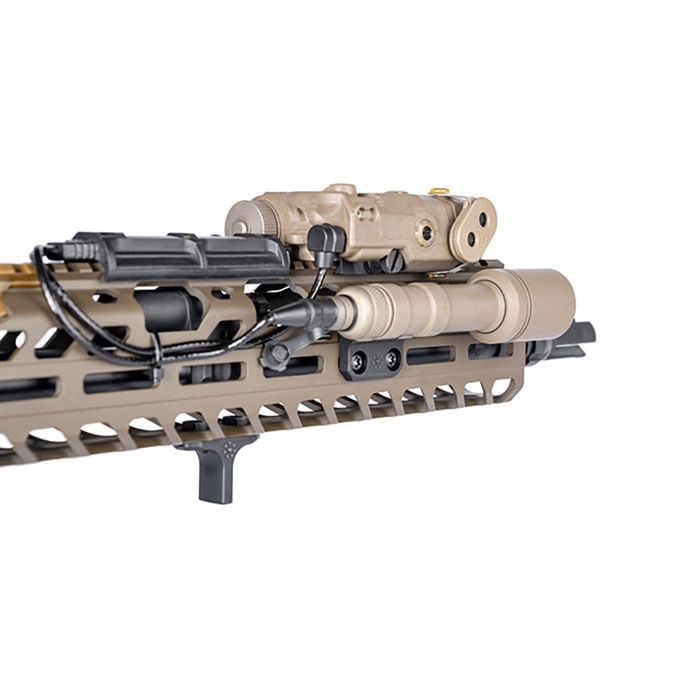

- Reemplaza el adaptador de riel Picatinny estándar con un soporte de perfil bajo que coloca la luz debajo de cualquiera de los láseres NGAL, ATPIAL-C, AN/PEQ15 y LA-5/PEQ.
- Permite que la luz pase el lever QD en el Steiner DBAL I2, A3 y D2.
- Diseñado principalmente para el SIG MCX y MPX, también funciona bien en las series B&T GHM y APC, CZ Scorpion y Bren, IWI Tavor, y guardamanos M-Lok AR15.
- Compatible con las luces Modlite PLH, PLHv2 y OKW, y varias series de Surefire y Streamlight.
- Longitud: 1.265” | Peso: 0.4 oz

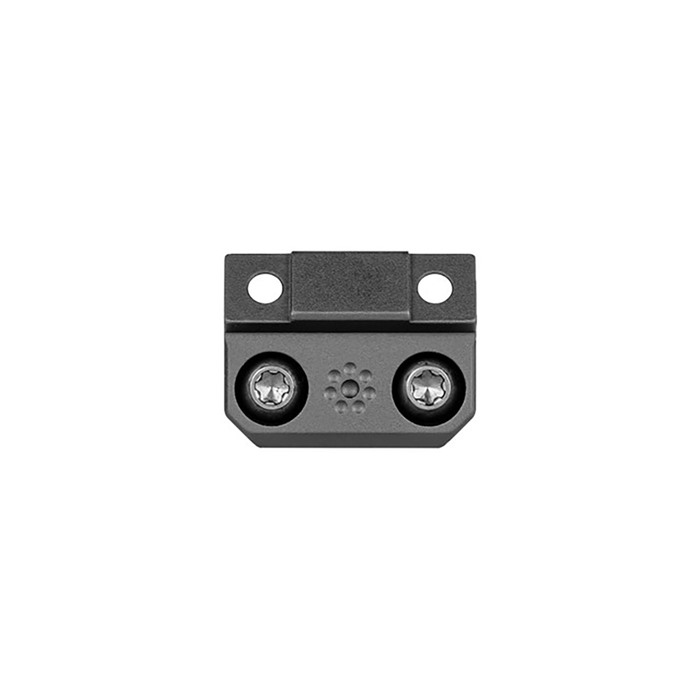

El soporte está fabricado mediante CNC a partir de aluminio 6061-T651 y anodizado con un recubrimiento duro MIL-A-8625 Tipo III. Incluye los tornillos necesarios para fijar el cuerpo de la luz al soporte. Se requiere un destornillador IP20 TorxPlus para la instalación (no incluido). Un destornillador T9 Torx es necesario para quitar el soporte Picatinny de las luces Surefire Scout.
Recomendaciones de instalación:
- Torque recomendado: 30 pulgadas-libras para los tornillos M-Lok y 20 pulgadas-libras para los tornillos del cuerpo de la luz con Loctite 222 o 243.

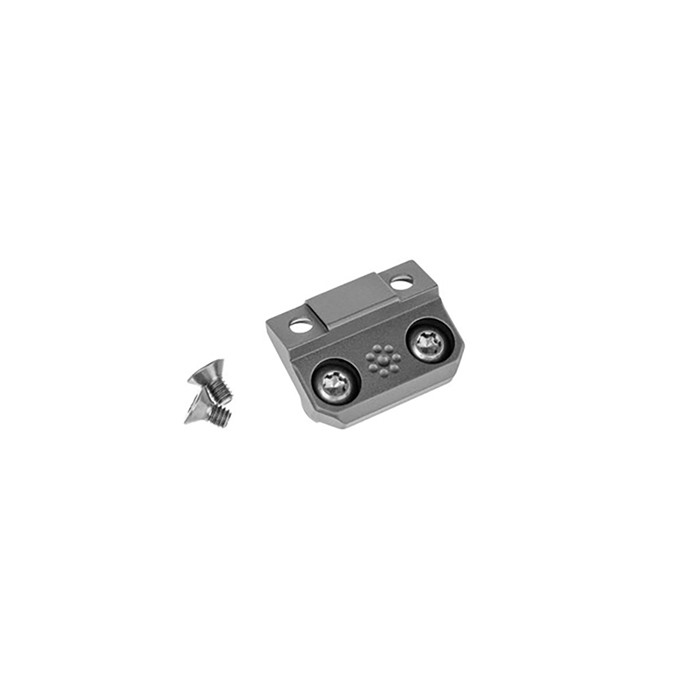

Hardware incluido:
- Dos tuercas M-Lok
- Dos tornillos de cabeza de botón Torx 10-24x5/16"
- Dos tornillos de cabeza plana Torx 8-32x5/16"
Fabricado en EE. UU.
