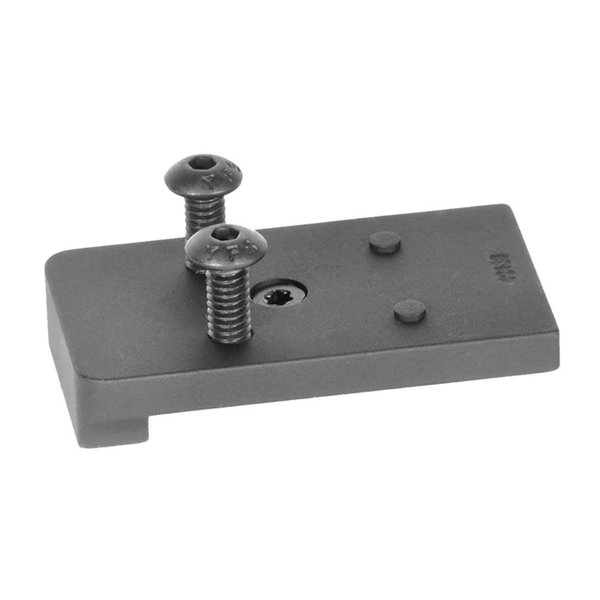

Simply remove the rear sight on your gun and replace it with EGW mount in order to mount your Vortex Razor, C-More RTS or STS red-dot sight. You can take the mount off and replace your rear sight at any time. Mounting hardware included. Installation Instructions Remove the rear sight* Install the EGW Sight Mount in the dovetail Tighten set screw (if applicable) Place the red dot sight on the EGW Sight Mount (placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.) Apply blue Loctite to the provided mounting screws Torque mounting screws to 15in/lbs The screws that are included with this mount require a 5/64'' allen wrench for installation. This mount fits: Smith & Wesson K Frame Revolvers Smith & Wesson L Frame Revolvers Smith & Wesson N Frame Revolvers Smith & Wesson X Frame Revolvers If your revolver is not drilled and tapped this mount will not work. The best way to verify that it is/is not drilled and tapped is to open the cylinder and check the rib underneath. There should be through holes that are drilled and tapped. If there are not (like the above image) this mount will not work without you having the gun drilled and tapped. You can have a competent and qualified gunsmith drill and tap the top strap with the standard S&W hole pattern which will allow you to use our mount.
Mejora tu puntería con el montaje EGW para Vortex Razor
Este montaje es la solución perfecta para tus revólveres S&W K, L, N y X Frame. Simplemente quita la mira trasera de tu arma y reemplázala con el montaje EGW para poder instalar tu Vortex Razor, C-More RTS o STS red-dot sight.
Características del producto:
- Fácil instalación: Retira la mira trasera y coloca el montaje EGW en la ranura.
- Incluye hardware de montaje para una instalación sencilla.
- Permite la remoción del montaje en cualquier momento sin complicaciones.
Instrucciones de instalación:
- Retira la mira trasera*
- Instala el montaje EGW en la ranura del cañón.
- Ajusta el tornillo de fijación (si aplica).
- Coloca la mira red-dot en el montaje EGW (colocar un pequeño trozo de papel entre la mira y el montaje facilitará su remoción y evitará que el Loctite se adhiera a la mira).
- Aplica Loctite azul a los tornillos de montaje proporcionados.
- Ajusta los tornillos de montaje a 15 in/lbs.
Los tornillos incluidos con este montaje requieren una llave allen de 5/64'' para la instalación.
Compatibilidad:
- Revólveres Smith & Wesson K Frame
- Revólveres Smith & Wesson L Frame
- Revólveres Smith & Wesson N Frame
- Revólveres Smith & Wesson X Frame
Si tu revólver no está perforado y roscado, este montaje no funcionará. La mejor manera de verificar si está perforado y roscado es abrir el cilindro y revisar la nervadura debajo. Debería haber agujeros pasantes que estén perforados y roscados. Si no los hay (como en la imagen anterior), este montaje no funcionará sin que tu arma sea perforada y roscada. Puedes llevar a un armero competente y calificado para que realice la perforación y roscado en la parte superior con el patrón de agujeros estándar de S&W, lo que te permitirá usar nuestro montaje.
