Material: 7075 Aluminum Coating: Matte Black Hardcoat Overall Length: 1.780 Overall Width: 1.1" Mounting Hardware: (2) 6-32 Flat Head Screws, (1) 6-32 X 3/16 Set Screw Red Dot Fitment: Trijicon RMR This mount will fit: Smith & Wesson M&P Full Size Smith & Wesson M&P 2.0 Full Size Smith & Wesson M&P 22 Full Size Smith & Wesson M&P Compact* Smith & Wesson M&P 2.0 Compact* Smith & Wesson SD9VE Smith & Wesson SD40VE This mount does not fit: Smith & Wesson M&P Shield (Our mount is too wide to fit the Shield) Smith & Wesson M&P Shield EZ .380 Smith & Wesson SW9VE Smith & Wesson SW40VE Smith & Wesson M&P C.O.R.E Series *Will not fit the M&P .22 Compact. Smith and Wesson's rear sight dovetails are known to vary in dimensions. Our sights are made to the same tolerances. Some users may have trouble installing our plate on their slide due to the varying tolerances in your slides. Please keep this in mind when ordering.These mounts should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product. Simply remove the rear sight on your gun and replace it with our mount in order to mount your Trijicon RMR red dot sight. No alterations are required. You can take our mount off and replace your rear sight at any time. Mounting hardware included. Installation Instructions Remove the rear sight* Install the EGW Sight Mount in the dovetail Tighten set screw (if applicable) Place the red dot sight on the EGW Sight Mount (placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.) Apply blue Loctite to the provided mounting screws Torque mounting screws to 15in/lbs *Rear sight pusher tool highly recommended*

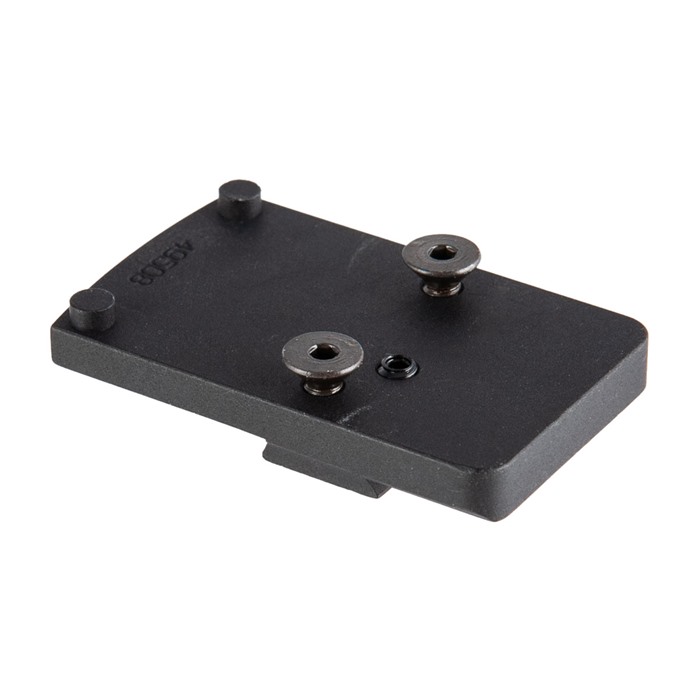

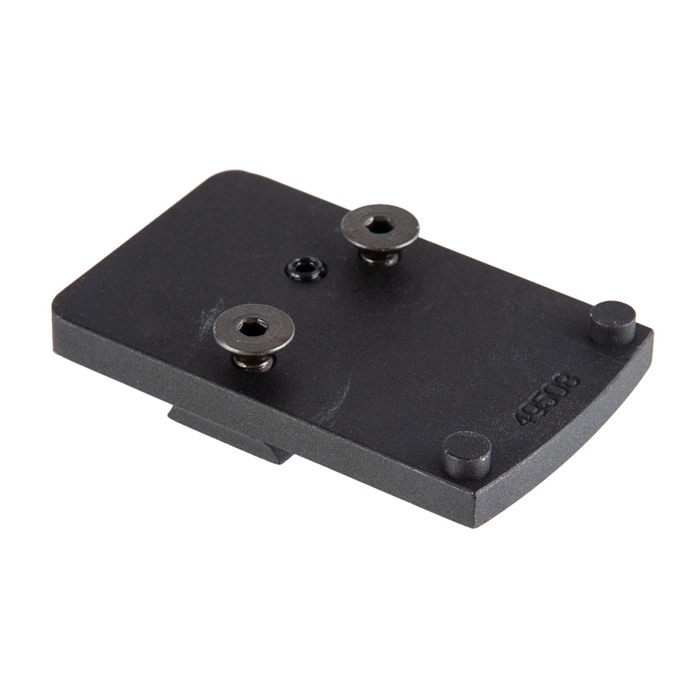

Montura para visor Trijicon RMR de S&W M&P, ¡la solución perfecta para tu pistola!
La montura S&W M&P TRIJICON RMR SIGHT MOUNT de EGW está diseñada para ofrecerte una instalación sencilla y segura de tu visor red dot Trijicon RMR en tu pistola Smith & Wesson M&P.
Características del producto:
- Material: Aluminio 7075
- Acabado: Matte Black Hardcoat
- Longitud total: 1.780"
- Anchura total: 1.1"
- Hardware de montaje: (2) tornillos de cabeza plana 6-32, (1) tornillo de fijación 6-32 X 3/16
- Ajuste para punto rojo: Trijicon RMR
Compatibilidad:
Esta montura es compatible con:
- Smith & Wesson M&P Full Size
- Smith & Wesson M&P 2.0 Full Size
- Smith & Wesson M&P 22 Full Size
- Smith & Wesson M&P Compact*
- Smith & Wesson M&P 2.0 Compact*
- Smith & Wesson SD9VE
- Smith & Wesson SD40VE
No es compatible con:
- Smith & Wesson M&P Shield (nuestra montura es demasiado ancha para el Shield)
- Smith & Wesson M&P Shield EZ .380
- Smith & Wesson SW9VE
- Smith & Wesson SW40VE
- Smith & Wesson M&P C.O.R.E Series
*No se ajustará a la M&P .22 Compact. Ten en cuenta que las dovetail de los miras traseros de Smith & Wesson pueden variar en dimensiones. Nuestras miras están fabricadas con las mismas tolerancias, por lo que algunos usuarios pueden tener problemas al instalar nuestra placa en su corredera debido a las tolerancias variables. Por favor, ten esto en cuenta al realizar tu pedido.
Instrucciones de instalación:
- Retira la mira trasera*
- Instala la montura EGW en la dovetail
- Ajusta el tornillo de fijación (si es aplicable)
- Coloca el visor red dot sobre la montura EGW (colocar un pequeño trozo de papel entre el visor red dot y la montura facilitará la remoción y evitará que el Loctite se adhiera al visor red dot).
- Aplica Loctite azul a los tornillos de montaje proporcionados
- Ajusta los tornillos de montaje a 15 in/lbs
*Se recomienda encarecidamente el uso de una herramienta para empujar la mira trasera.
Recuerda que estas monturas deben ser instaladas y verificadas por un armero calificado. No se expresa ni implica responsabilidad por daños o lesiones que puedan resultar de una instalación o uso incorrecto de este producto.
