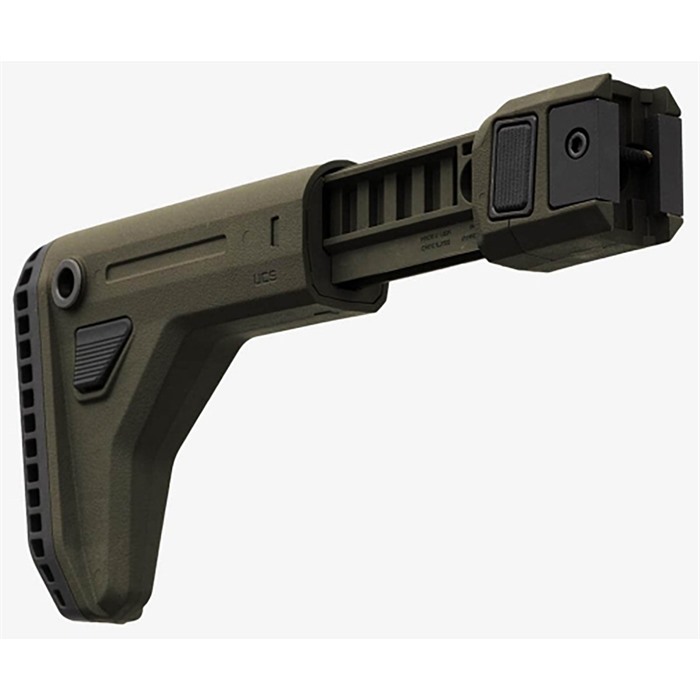

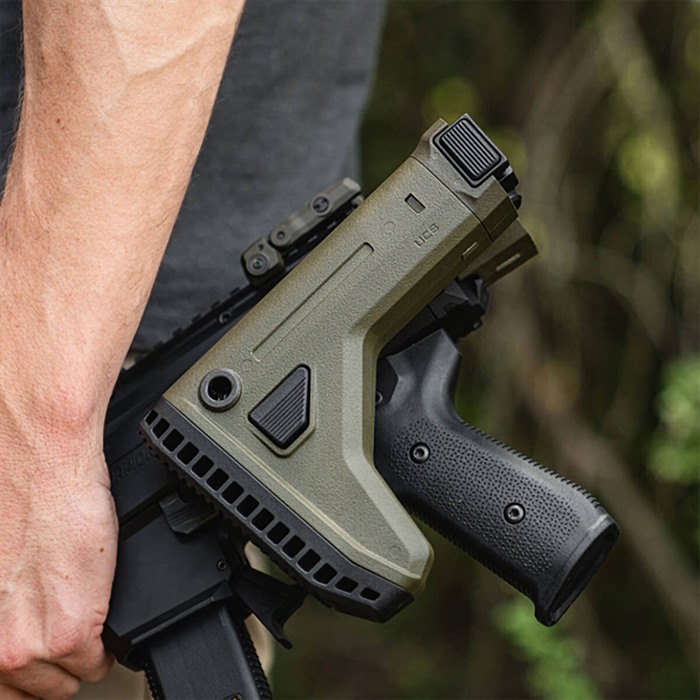

MAGPUL® UCS™ ADJUSTABLE CARBINE STOCK FOR AR-15 The Magpul UCS (Universal Carbine Stock) is designed to be the ideal supplement to the vast array of firearms utilizing a vertical M1913 Picatinny rail on the rear of the receiver for stock fitment. To accommodate the wide variety of charging handles styles, ejection port locations, and control locations, the UCS features a reversible hinge for left and right folding configurations, and five degrees of drop for clearance. The UCS ships with two reversible Cheek Risers (0.50", and 0.75"), and when combined with the reversible M1913 clamp (allowing for a 1/2-slot height adjustment), the shooter can dial in head placement for an optimal sight picture using iron sights or optics. Offering three (3) inches of length of pull (LOP) adjustment spanning six (6) positions – which can be adjusted via the LOP buttons – the stock fits any shooter, with and without armor or other bulky equipment. The UCS also includes a reversible, anti-rotation QD socket for sling attachments, and is compatible with MOE SL® and DT Butt-Pads. Made in the USA. FEATURES PROVIDES EXTREME ADJUSTABILITY Six (6) position, push-button LOP adjustment allows three (3) inches of total adjustment Toolless, removeable and reversible Cheek Risers for comb height adjustment (0.50" and 0.75") Reversible M1913 clamp allowing for a ½-slot height adjustment for further stock height adjustment ADAPTABLE TO MULTIPLE PLATFORMS Compatible with all firearms with an M1913 rail on the rear of the firearm’s receiver 5° drop angle for charging handle and ejection port clearance Reversible folding mechanism to modify folding direction SHOOTER CONFIGURABLE Reversible, anti-rotational QD socket for sling attachment Compatible with MOE SL and DT Butt-Pads Designed to fit shooters with or without bulky gear SPECS LOP Adjustment Range: 3 in. Length: 7.6 - 10.6 in. Length of Pull:Exact LOP range varies depending on platform* Height at Butt Plate: 5.3 in. Weight: 1.1 lbs Width, max:1.9 in. (at hinge) COMPATIBILITY Receivers equipped with an M1913 rail instead of a buffer tube from the factory, or receivers with an M1913 aftermarket adapter, including but not limited to the SIG MPX/MCX, FN SCAR, IWI Galil, CZ Scorpion, Ruger LC carbine, Brownell's BRN-180, and certain AK variants such as the PSA AK/AK-V. Exact LOP range varies, known Max/Min LOP follows: Sig MCX: 11.3 - 14.3 in. Sig MPX: 11.6 - 14.6 in. FN SCAR: 11.8 - 14.8 in. IWI Galil: 11.3 - 14.3 in. CZ Scorpion: 11.6 - 14.6 in. Ruger LC Carbine: 13.3 - 16.3 in. PSA AK: 11.7 - 14.7 in.
¡Mejora tu experiencia de tiro con la culata ajustable UCS de MAGPUL!
La culata ajustable UCS™ de MAGPUL está diseñada para ser el complemento ideal de una amplia variedad de armas de fuego que utilizan un riel M1913 Picatinny vertical en la parte trasera del receptor para la instalación de la culata. Para adaptarse a la gran variedad de estilos de manijas de carga, ubicaciones de puertos de eyección y ubicaciones de controles, la UCS cuenta con una bisagra reversible para configuraciones de plegado a la izquierda y a la derecha, y cinco grados de caída para mayor claridad.

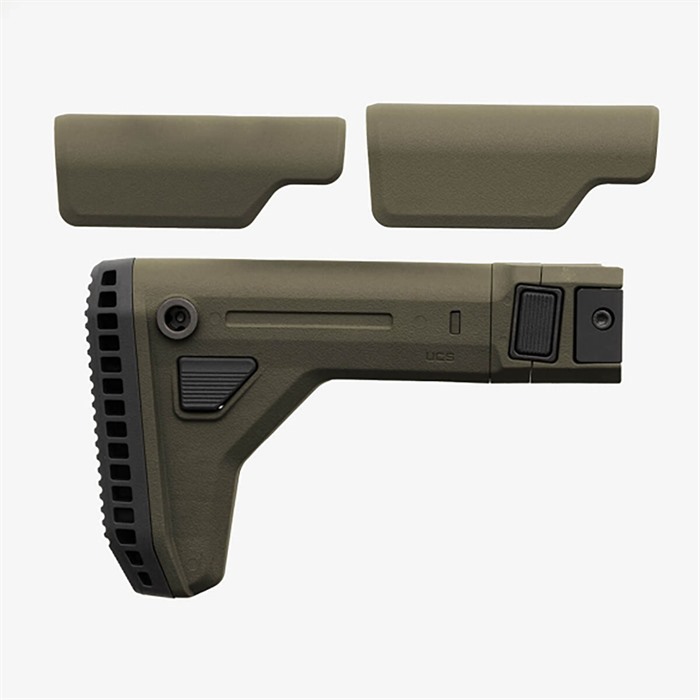

La UCS se envía con dos Cheek Risers reversibles (0.50" y 0.75"), y cuando se combinan con la abrazadera M1913 reversible (que permite un ajuste de altura de 1/2 ranura), el tirador puede ajustar la colocación de la cabeza para una imagen óptima utilizando miras de hierro u ópticas.
Características
- EXTREMA AJUSTABILIDAD: Ajuste de longitud de tiro (LOP) en seis posiciones, permitiendo un ajuste total de tres pulgadas.
- Cheek Risers removibles y reversibles sin herramientas para ajuste de altura de la culata (0.50" y 0.75").
- Abrazadera M1913 reversible que permite un ajuste de altura de ½ ranura para un ajuste adicional de la altura de la culata.
Adaptabilidad a múltiples plataformas
- Compatible con todas las armas de fuego que tengan un riel M1913 en la parte trasera del receptor.
- Ángulo de caída de 5° para mayor claridad de la manija de carga y el puerto de eyección.
- Mecanismo de plegado reversible para modificar la dirección de plegado.
Configuración para el tirador
- Socket QD anti-rotacional reversible para la fijación de correas.
- Compatible con los Butt-Pads MOE SL y DT.
- Diseñada para adaptarse a tiradores con o sin equipo voluminoso.
Especificaciones
- Ajuste de LOP: 3 in.
- Longitud: 7.6 - 10.6 in.
- Longitud de tiro: el rango exacto de LOP varía según la plataforma.
- Altura en la placa de la culata: 5.3 in.
- Peso: 1.1 lbs
- Ancho máximo: 1.9 in. (en la bisagra).
Compatibilidad

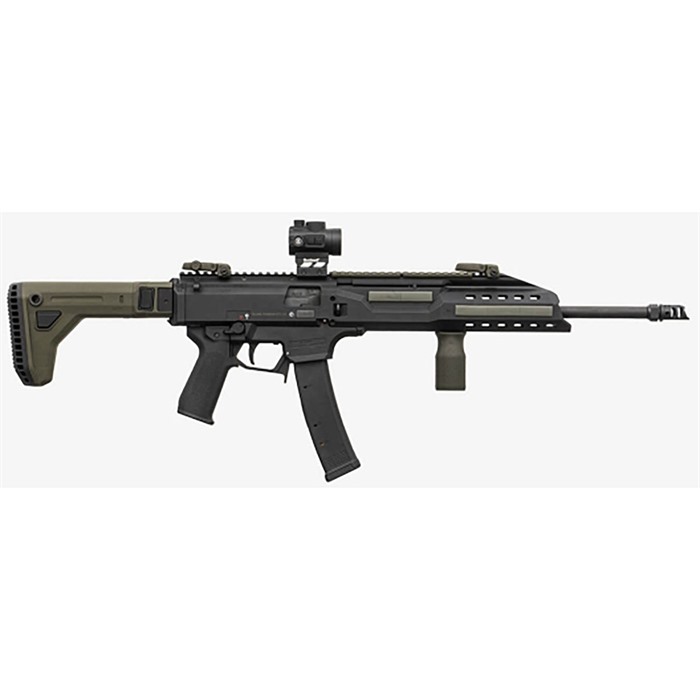

Compatible con receptores equipados con un riel M1913 en lugar de un tubo de amortiguación de fábrica, o receptores con un adaptador aftermarket M1913, incluyendo pero no limitado a los modelos SIG MPX/MCX, FN SCAR, IWI Galil, CZ Scorpion, Ruger LC carbine, Brownell's BRN-180, y ciertas variantes de AK como el PSA AK/AK-V.
El rango exacto de LOP varía, los siguientes son los rangos máximos/mínimos conocidos:
- Sig MCX: 11.3 - 14.3 in.
- Sig MPX: 11.6 - 14.6 in.
- FN SCAR: 11.8 - 14.8 in.
- IWI Galil: 11.3 - 14.3 in.
- CZ Scorpion: 11.6 - 14.6 in.
- Ruger LC Carbine: 13.3 - 16.3 in.
- PSA AK: 11.7 - 14.7 in.
