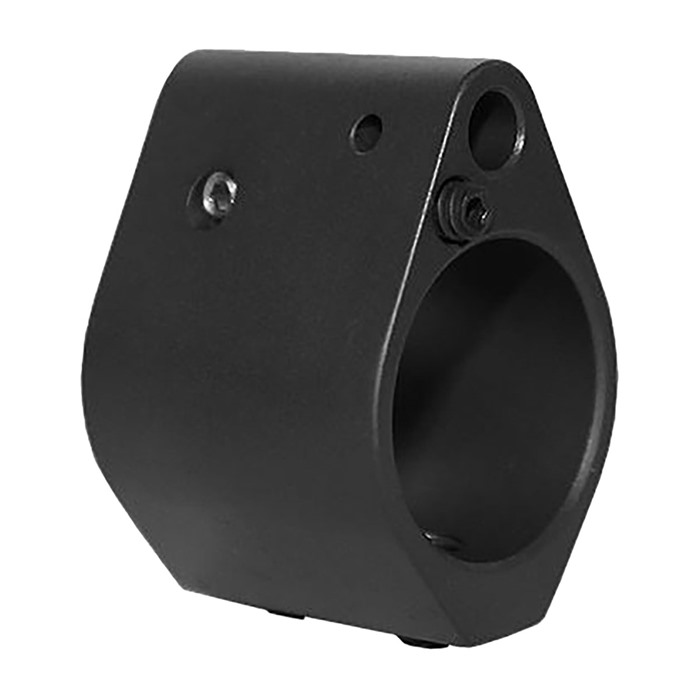

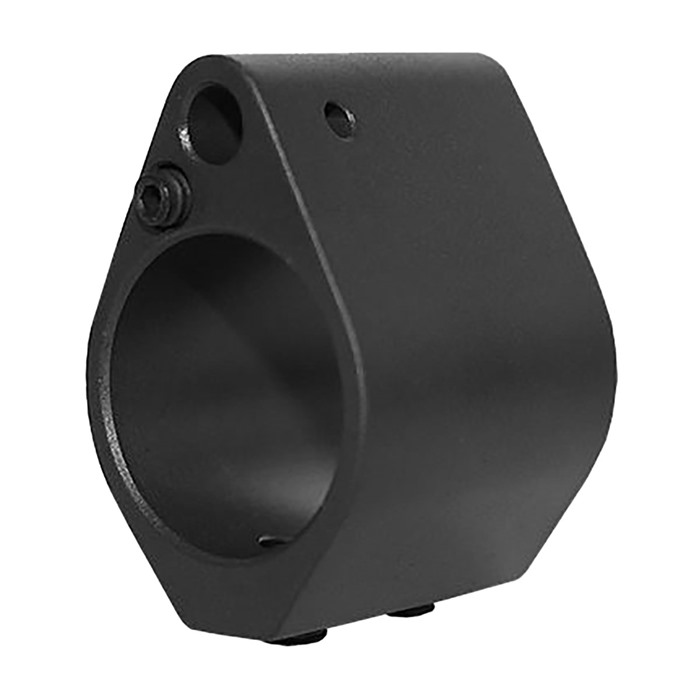

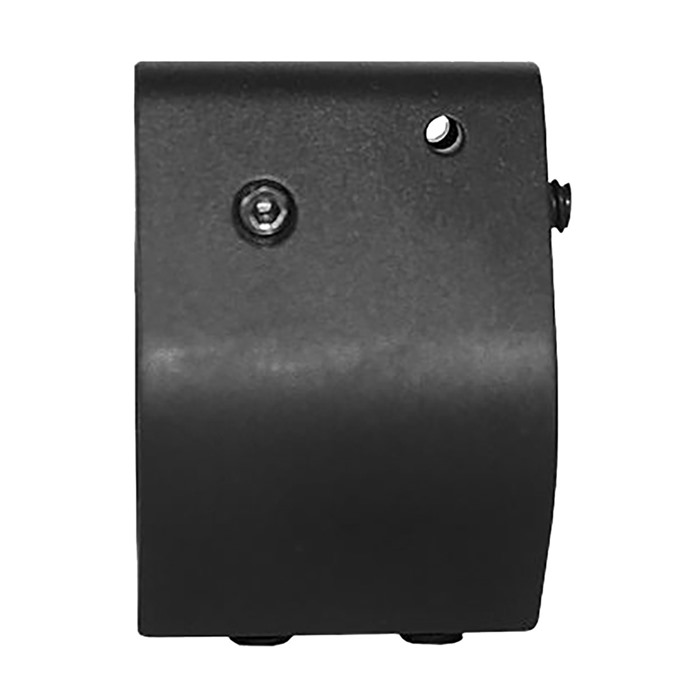

All of SADLAK’s Gas Blocks are made in the USA by craftsmen with years of experience delivering consistent quality. All the bores are precision honed and all critical measurements are 100% inspected to insure consistency and quality. Available in a multitude of sizes and styles, Sadlak’s Gas Blocks are a great option if you are building an AR or if you are just looking to upgrade. The Gas Blocks are available in .625”, .750”, .875”, or .936”. They also feature option such as Clamp-Style, Slip-On, Skeletonized, or Adjustable, and all attaching hardware is included. All Gas Blocks except for the Picatinny Rail Gas Block are Low-Profile. Finishes include Black Nitride or Manganese Phosphate. The Sadlak Gas Blocks Mounts securely to barrel with included setscrews. Clamp-on models squeeze around the barrel as you tighten the side-mounted setscrews. Slip-on models are anchored by setscrews on the underside. Low Profile fits under a free-float handguard and lets you use a longer on carbine-length barrels for a clean, streamlined look with more gripping surface. Extended Nose is like Low-Profile, but with an extended sleeve that covers taper pin holes left by the issue A2-style sight tower.
SPECS: 6061 T6 aluminum, hardcoat anodized, black, or 1018 alloy steel, Parkerized, black. Barrel O.D. measured at gas port.
| SKU | BBL. DIA. | LENGTH | WIDTH | HEIGHT | WEIGHT |
| 100-006-899 | .625" | .95" (24mm) | .775" (20mm) | 1.3" (33mm) | 1.4oz (40g) |
| 100-005-337 | .750" | .95" (24mm) | .90" (23mm) | 1.4" (36mm) | 1.4oz (40g) |
100-005-339 | .750" | .95" (24mm) | .90" (23mm) | 1.5" (38mm) | 1.8oz (51g) |
| 100-008-732 | .750" | 1.85" (47mm) | .90" (23mm) | 1.4" (36mm) | 1.9oz (54g) |
| 100-006-900 | .875" | .95" (24mm) | 1.0" (26mm) | 1.4" (36mm) | 1.6oz (45g) |
| 100-005-340 | .936" | 1.4" (36mm) | 1.2" (30mm) | 1.7" (43mm) | 1.4oz (40g) |
| | | | | | |
| 100-005-342 | .936" | 1.7" (43mm) | 1.2" (30mm) | 1.7" (43mm) | 2.6oz (74g) |
Bloques de gas AR-15/M16 de bajo perfil para un ajuste perfecto.
Todos los bloques de gas de SADLAK están fabricados en EE. UU. por artesanos con años de experiencia que garantizan una calidad constante. Todos los orificios son rectificados con precisión y todas las medidas críticas son inspeccionadas al 100% para asegurar consistencia y calidad.
Características del producto:
- Disponibles en múltiples tamaños y estilos, ideales para construir un AR o para actualizar tu equipo.
- Tamaños disponibles: .625”, .750”, .875” o .936”.
- Opciones como Clamp-Style, Slip-On, Skeletonized o Adjustable, con todo el hardware de sujeción incluido.
- Todos los bloques de gas, excepto el Picatinny Rail Gas Block, son de bajo perfil.
- Acabados disponibles: Black Nitride o Manganese Phosphate.
- Montaje seguro en el cañón con los setscrews incluidos.
- Modelos Clamp-on se ajustan alrededor del cañón al apretar los setscrews laterales.
- Modelos Slip-on están anclados por setscrews en la parte inferior.
- El diseño Low Profile se ajusta debajo de un handguard de flotación libre, permitiendo el uso de cañones más largos para un aspecto limpio y aerodinámico.
- El Extended Nose es similar al Low-Profile, pero con una manga extendida que cubre los agujeros de los pasadores de conicidad dejados por la torre de mira A2 estándar.
Especificaciones:
6061 T6 aluminio, anodizado duro, negro, o acero de aleación 1018, Parkerized, negro. O.D. del cañón medido en el puerto de gas.
| SKU |
DIA. |
LARGO |
ANCHO |
ALTURA |
PESO |
| 100-006-899 |
.625" |
.95" (24mm) |
.775" (20mm) |
1.3" (33mm) |
1.4oz (40g) |
| 100-005-337 |
.750" |
.95" (24mm) |
.90" (23mm) |
1.4" (36mm) |
1.4oz (40g) |
| 100-005-339 |
.750" |
.95" (24mm) |
.90" (23mm) |
1.5" (38mm) |
1.8oz (51g) |
| 100-008-732 |
.750" |
1.85" (47mm) |
.90" (23mm) |
1.4" (36mm) |
1.9oz (54g) |
| 100-006-900 |
.875" |
.95" (24mm) |
1.0" (26mm) |
1.4" (36mm) |
1.6oz (45g) |
| 100-005-340 |
.936" |
1.4" (36mm) |
1.2" (30mm) |
1.7" (43mm) |
1.4oz (40g) |
| 100-005-342 |
.936" |
1.7" (43mm) |
1.2" (30mm) |
1.7" (43mm) |
2.6oz (74g) |
