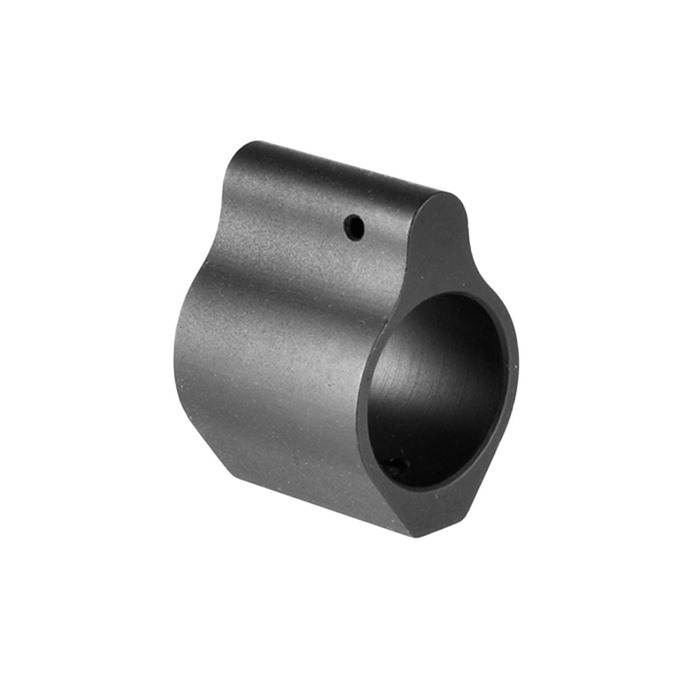

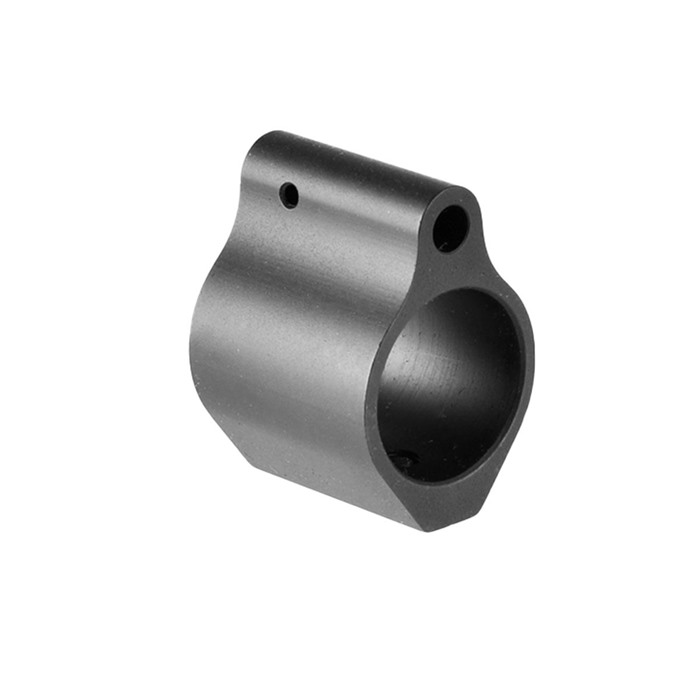

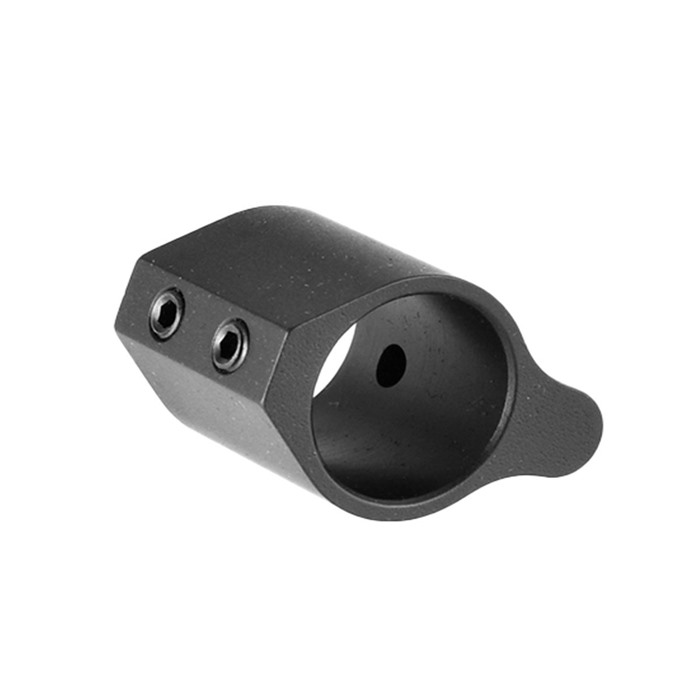

All of SADLAK’s Gas Blocks are made in the USA by craftsmen with years of experience delivering consistent quality. All the bores are precision honed and all critical measurements are 100% inspected to insure consistency and quality. Available in a multitude of sizes and styles, Sadlak’s Gas Blocks are a great option if you are building an AR or if you are just looking to upgrade. The Gas Blocks are available in .625”, .750”, .875”, or .936”. They also feature option such as Clamp-Style, Slip-On, Skeletonized, or Adjustable, and all attaching hardware is included. All Gas Blocks except for the Picatinny Rail Gas Block are Low-Profile. Finishes include Black Nitride or Manganese Phosphate. The Sadlak Gas Blocks Mounts securely to barrel with included setscrews. Clamp-on models squeeze around the barrel as you tighten the side-mounted setscrews. Slip-on models are anchored by setscrews on the underside. Low Profile fits under a free-float handguard and lets you use a longer on carbine-length barrels for a clean, streamlined look with more gripping surface. Extended Nose is like Low-Profile, but with an extended sleeve that covers taper pin holes left by the issue A2-style sight tower.
SPECS: 6061 T6 aluminum, hardcoat anodized, black, or 1018 alloy steel, Parkerized, black. Barrel O.D. measured at gas port.
| SKU | BBL. DIA. | LENGTH | WIDTH | HEIGHT | WEIGHT |
| 100-006-899 | .625" | .95" (24mm) | .775" (20mm) | 1.3" (33mm) | 1.4oz (40g) |
| 100-005-337 | .750" | .95" (24mm) | .90" (23mm) | 1.4" (36mm) | 1.4oz (40g) |
100-005-339 | .750" | .95" (24mm) | .90" (23mm) | 1.5" (38mm) | 1.8oz (51g) |
| 100-008-732 | .750" | 1.85" (47mm) | .90" (23mm) | 1.4" (36mm) | 1.9oz (54g) |
| 100-006-900 | .875" | .95" (24mm) | 1.0" (26mm) | 1.4" (36mm) | 1.6oz (45g) |
| 100-005-340 | .936" | 1.4" (36mm) | 1.2" (30mm) | 1.7" (43mm) | 1.4oz (40g) |
| | | | | | |
| 100-005-342 | .936" | 1.7" (43mm) | 1.2" (30mm) | 1.7" (43mm) | 2.6oz (74g) |
Bloques de gas AR-15/M16 de alta calidad para tus proyectos de armas.
Todos los bloques de gas de SADLAK están fabricados en los EE. UU. por artesanos con años de experiencia, asegurando una calidad constante. Todos los orificios son refinados con precisión y todas las medidas críticas son inspeccionadas al 100% para garantizar consistencia y calidad.
Características del producto:
- Disponible en múltiples tamaños y estilos: .625”, .750”, .875”, o .936”.
- Opciones como Clamp-Style, Slip-On, Skeletonized o Adjustable, con todo el hardware de sujeción incluido.
- Todos los bloques de gas, excepto el bloque de gas con riel Picatinny, son de perfil bajo.
- Acabados disponibles en Black Nitride o Manganese Phosphate.
- Montaje seguro en el cañón con los setscrews incluidos.
Los modelos Clamp-on se ajustan alrededor del cañón al apretar los setscrews montados en el lateral. Los modelos Slip-on están anclados por setscrews en la parte inferior. El diseño de bajo perfil se adapta debajo de un guardamanos de flotación libre y permite el uso de un cañón más largo para un aspecto limpio y aerodinámico con más superficie de agarre. La nariz extendida es similar al perfil bajo, pero con una funda extendida que cubre los agujeros de los pasadores de taper dejados por la torre de visión estilo A2 de serie.
Especificaciones:
| SKU |
DIA. |
LENGTH |
WIDTH |
HEIGHT |
WEIGHT |
| 100-006-899 |
.625" |
.95" (24mm) |
.775" (20mm) |
1.3" (33mm) |
1.4oz (40g) |
| 100-005-337 |
.750" |
.95" (24mm) |
.90" (23mm) |
1.4" (36mm) |
1.4oz (40g) |
| 100-005-339 |
.750" |
.95" (24mm) |
.90" (23mm) |
1.5" (38mm) |
1.8oz (51g) |
| 100-008-732 |
.750" |
1.85" (47mm) |
.90" (23mm) |
1.4" (36mm) |
1.9oz (54g) |
| 100-006-900 |
.875" |
.95" (24mm) |
1.0" (26mm) |
1.4" (36mm) |
1.6oz (45g) |
| 100-005-340 |
.936" |
1.4" (36mm) |
1.2" (30mm) |
1.7" (43mm) |
1.4oz (40g) |
| 100-005-342 |
.936" |
1.7" (43mm) |
1.2" (30mm) |
1.7" (43mm) |
2.6oz (74g) |
