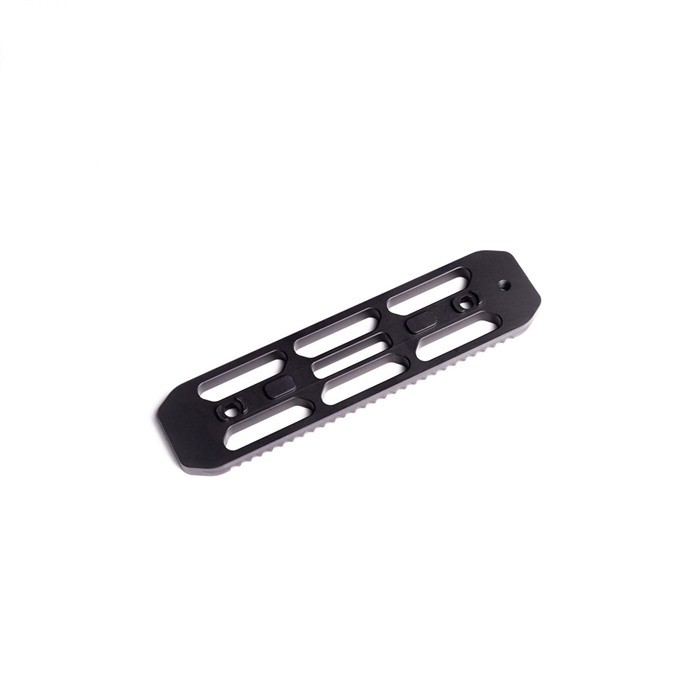

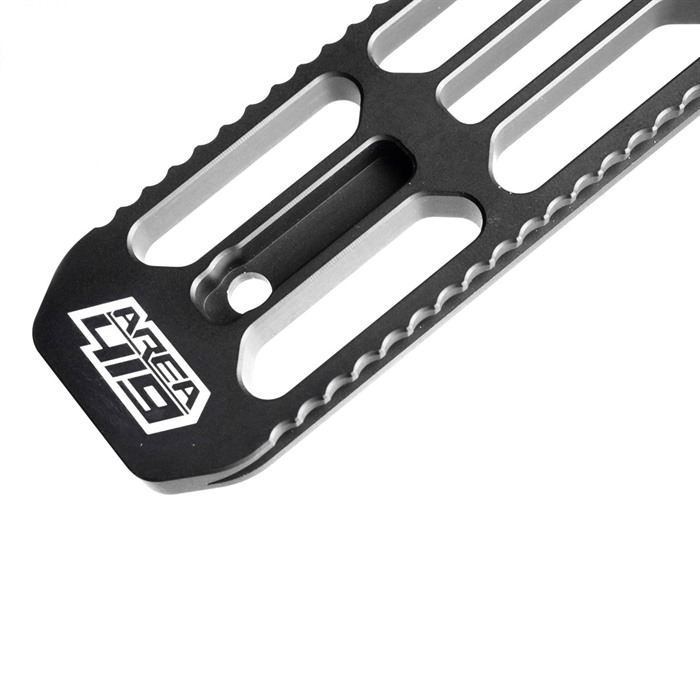

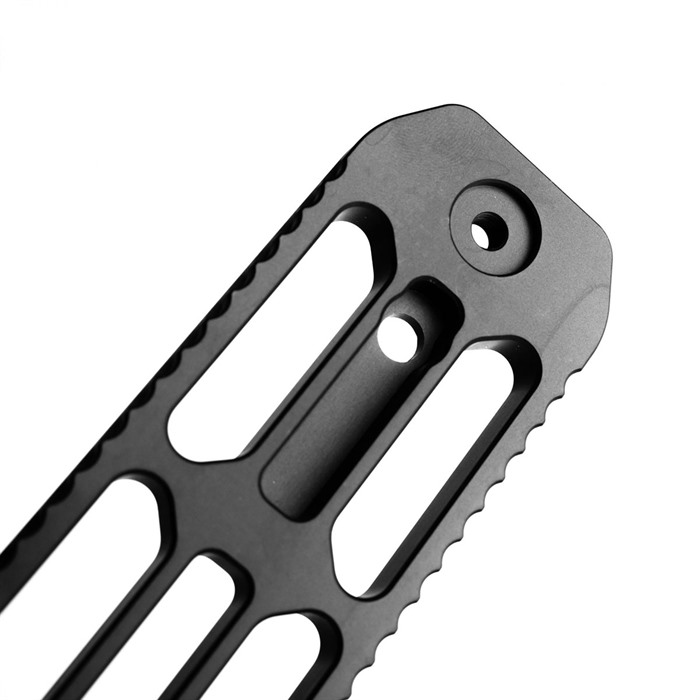

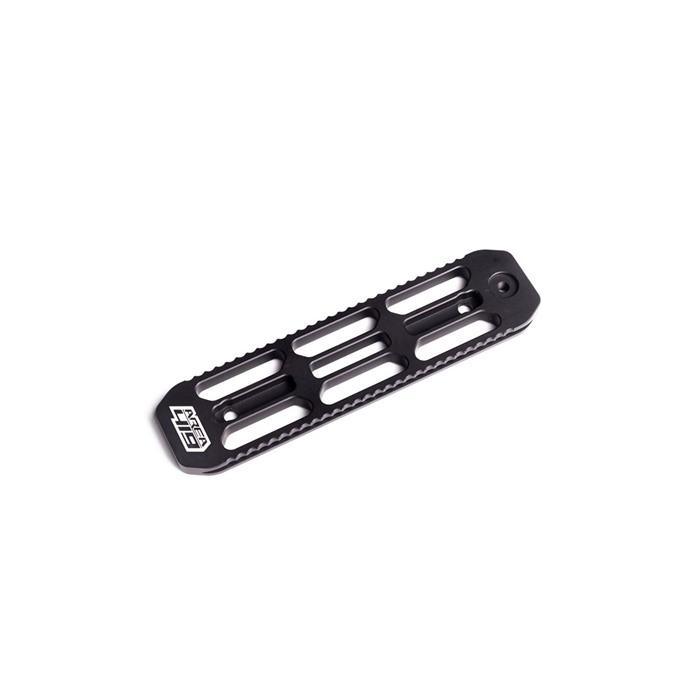

ARCALOCK MLOK ATTACHMENT Area 419 is always looking for ways to improve existing products when Area 419 are not developing new technologies. With the rapid growth in popularity of ARCA rails in precision rifle, they saw a need to improve this great dovetail technology to something that could be mechanically locked in place instead of just friction. If you have ever tried using a Barricade stop on an existing ARCA rail, you’ve probably also seen it slide under much pressure. Introducing the ARCALOCK Dovetail Rail System *Rail is only locking with an Area 419 clamp* Rail Features: Serrated rail sides interface with Area 419’s proprietary clamp design to mechanically lock it in place so no movement is possible. Serrations are not sharp, will not damage bags or your hands. Rail is backwards compatible with standard Arca accessories, but will not be locking without Area 419’s clamp. Arcalock Dovetail Rail 6" M-LOK is 6″ long and weighs in at a paltry 2.2oz. NOTE: THIS RAIL REQUIRES 3 CONSECUTIVE MLOK SLOTS TO ATTACH. Arcalock Dovetail Rail 12” M-LOK is 12″ long giving you the entire length of the stock forend for attachments. The best part is, it still only weighs in at a paltry 4.1oz. NOTE: THIS RAIL REQUIRES 6 CONSECUTIVE MLOK SLOTS TO ATTACH. FOR STOCKS WITH FEWER MLOK SLOTS, YOU’LL WANT A 12″ UNIVERSAL RAIL WITH MLOK ATTACHMENT NUTS SPECS Made to the RRS 1.5″ Dovetail Standard, so you can be sure lever clamps will work. No sharp edges. Every corner is radiused, and every edge is chamfered on the machine. This takes longer to make, but it is the only right way. Type 3 Hard Coat anodized for additional durability. Made from 6061-T6 Aluminum. Made in-house in the USA from USA sourced Aluminum on USA made CNCs. Rail comes with all M-LOK mounting hardware.
Mejora la tecnología de tu rifle de precisión
El ARCALOCK MLOK ATTACHMENT de AREA 419 está diseñado para ofrecerte una solución innovadora en el uso de rieles ARCA. Siempre estamos buscando formas de mejorar los productos existentes y, con el auge de los rieles ARCA en los rifles de precisión, identificamos la necesidad de perfeccionar esta gran tecnología de dovetail para que se pueda bloquear mecánicamente en su lugar en lugar de depender solo de la fricción.
¿Por qué elegir el sistema de rieles ARCALOCK?
Si alguna vez has intentado usar un Barricade stop en un riel ARCA existente, probablemente hayas notado que se desliza bajo mucha presión. Con el Sistema de Riel Dovetail ARCALOCK, esto ya no será un problema.
- Características del riel:
- Los lados del riel tienen un diseño serrado que se interfacea con el diseño de la pinza patentada de AREA 419, bloqueando mecánicamente el riel en su lugar, eliminando cualquier movimiento.
- Las serraciones no son afiladas, por lo que no dañarán tus bolsas ni tus manos.
- El riel es compatible hacia atrás con accesorios ARCA estándar, pero no se bloqueará sin la pinza de AREA 419.
El Riel Dovetail ARCALOCK de 6" M-LOK tiene una longitud de 6″ y pesa apenas 2.2oz. NOTA: ESTE RIEL REQUIERE 3 SLOTS MLOK CONSECUTIVOS PARA SU MONTAJE.
El Riel Dovetail ARCALOCK de 12” M-LOK mide 12″ de largo, aprovechando toda la longitud del forend del stock para tus accesorios. Lo mejor es que también pesa solo 4.1oz. NOTA: ESTE RIEL REQUIERE 6 SLOTS MLOK CONSECUTIVOS PARA SU MONTAJE. PARA LOS STOCKS CON MENOS SLOTS MLOK, NECESITARÁS UN RIEL UNIVERSAL DE 12″ CON TUERCAS DE MONTAJE MLOK.
Especificaciones
- Fabricado según el estándar de dovetail RRS de 1.5″, asegurando que las pinzas de palanca funcionen correctamente.
- No tiene bordes afilados. Cada esquina está redondeada y cada borde está biselado en la máquina, lo que toma más tiempo, pero es la única forma correcta.
- Anodizado con un recubrimiento duro tipo 3 para mayor durabilidad.
- Fabricado en aluminio 6061-T6.
- Hecho en casa en los EE. UU. con aluminio de origen estadounidense en CNCs fabricados en EE. UU.
- El riel incluye todo el hardware de montaje M-LOK.
