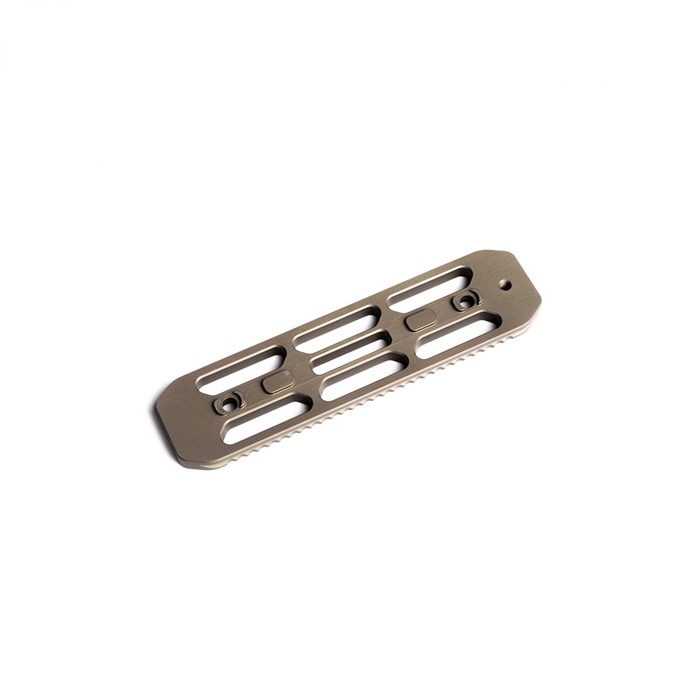

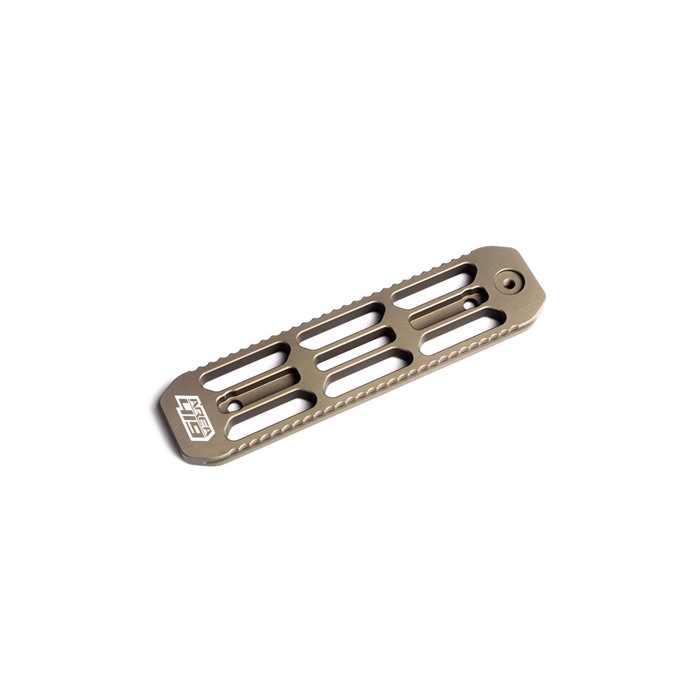

ARCALOCK MLOK ATTACHMENT Area 419 is always looking for ways to improve existing products when Area 419 are not developing new technologies. With the rapid growth in popularity of ARCA rails in precision rifle, they saw a need to improve this great dovetail technology to something that could be mechanically locked in place instead of just friction. If you have ever tried using a Barricade stop on an existing ARCA rail, you’ve probably also seen it slide under much pressure. Introducing the ARCALOCK Dovetail Rail System *Rail is only locking with an Area 419 clamp* Rail Features: Serrated rail sides interface with Area 419’s proprietary clamp design to mechanically lock it in place so no movement is possible. Serrations are not sharp, will not damage bags or your hands. Rail is backwards compatible with standard Arca accessories, but will not be locking without Area 419’s clamp. Arcalock Dovetail Rail 6" M-LOK is 6″ long and weighs in at a paltry 2.2oz. NOTE: THIS RAIL REQUIRES 3 CONSECUTIVE MLOK SLOTS TO ATTACH. Arcalock Dovetail Rail 12” M-LOK is 12″ long giving you the entire length of the stock forend for attachments. The best part is, it still only weighs in at a paltry 4.1oz. NOTE: THIS RAIL REQUIRES 6 CONSECUTIVE MLOK SLOTS TO ATTACH. FOR STOCKS WITH FEWER MLOK SLOTS, YOU’LL WANT A 12″ UNIVERSAL RAIL WITH MLOK ATTACHMENT NUTS SPECS Made to the RRS 1.5″ Dovetail Standard, so you can be sure lever clamps will work. No sharp edges. Every corner is radiused, and every edge is chamfered on the machine. This takes longer to make, but it is the only right way. Type 3 Hard Coat anodized for additional durability. Made from 6061-T6 Aluminum. Made in-house in the USA from USA sourced Aluminum on USA made CNCs. Rail comes with all M-LOK mounting hardware.
¡Mejora tu rifle de precisión con la tecnología Dovetail mejorada!
ARCALOCK MLOK ATTACHMENT de AREA 419 siempre está buscando formas de mejorar los productos existentes. Cuando no están desarrollando nuevas tecnologías, se enfocan en optimizar lo que ya tienen. Con el rápido crecimiento de la popularidad de los rieles ARCA en rifles de precisión, vieron la necesidad de mejorar esta gran tecnología de dovetail a algo que pudiera ser bloqueado mecánicamente en su lugar, en lugar de depender solo de la fricción. Si alguna vez has intentado usar un Barricade stop en un riel ARCA existente, probablemente también hayas visto cómo se desliza bajo mucha presión.
Presentamos el Sistema de Riel Dovetail ARCALOCK *El riel solo se bloquea con una abrazadera de Area 419*
Características del Riel:

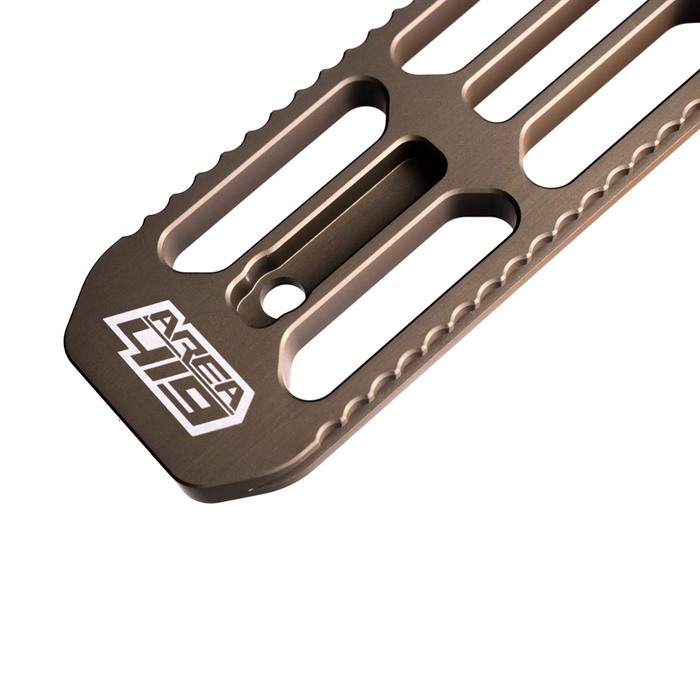

- Los lados del riel serrados se interfazan con el diseño de abrazadera patentado de Area 419 para bloquearlo mecánicamente en su lugar, evitando cualquier movimiento.
- Las serraciones no son afiladas y no dañarán tus bolsas ni tus manos.
- El riel es compatible hacia atrás con accesorios estándar Arca, pero no se bloqueará sin la abrazadera de Area 419.
El Arcalock Dovetail Rail 6" M-LOK mide 6″ de largo y pesa solo 2.2 oz. NOTA: ESTE RIEL REQUIERE 3 SLOTS MLOK CONSECUTIVOS PARA SU MONTAJE.
El Arcalock Dovetail Rail 12” M-LOK mide 12″ de largo, aprovechando toda la longitud del forend del stock para los accesorios. La mejor parte es que, aún así, solo pesa 4.1 oz. NOTA: ESTE RIEL REQUIERE 6 SLOTS MLOK CONSECUTIVOS PARA SU MONTAJE. PARA LOS STOCKS CON MENOS SLOTS MLOK, QUERRÁS UN RIEL UNIVERSAL DE 12″ CON TUERCAS DE MONTAJE MLOK.
Especificaciones:
- Fabricado según el estándar de Dovetail RRS de 1.5″, así que puedes estar seguro de que las abrazaderas de palanca funcionarán.
- No hay bordes afilados. Cada esquina está redondeada y cada borde está biselado en la máquina. Esto lleva más tiempo de fabricación, pero es la única manera correcta.
- Anodizado con recubrimiento duro tipo 3 para mayor durabilidad.
- Fabricado en aluminio 6061-T6.
- Fabricado internamente en los EE. UU. con aluminio de origen estadounidense en CNCs fabricados en EE. UU.
- El riel viene con todo el hardware de montaje M-LOK.
