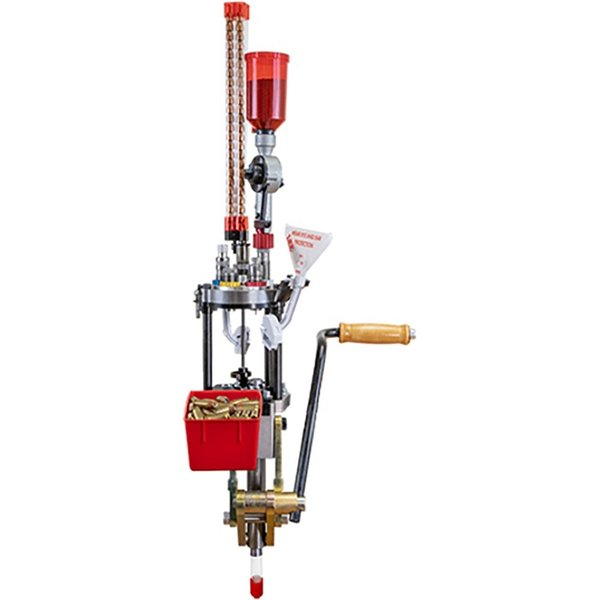

ULTIMATE TURRET PRESS KIT The Ultimate Turret press retains the powerful Big Press linkage and circumferential tool head support. Perimeter support sets all Lee turret press apart from others. Through ram primer disposal keeps grit and grime away from the massive steel base and ram. The Ultimate replaces features changeable tool carrier available in three, four, five and six die positions. The tool carrier is precision machined on all surfaces and closely fitted to the steel support ring that surrounds the indexable tool head, having just enough clearance to allow free indexing and enough radial clearance to allow perfect die alignment. Perimeter support eliminates any die tipping and provides the best possible accuracy. Each die position is a quick change, provided by the Lee Breech lock system. Now you can remove your dies and store them in your fitted die box without disturbing the settings. Tool carrier can be quickly changed by removing three alloy steel socket head bolts, wrench included. Every downstroke of the press automatically advances the carrier to the next tool position. The new index mechanism has only one moving part and is overload protected making it nearly indestructible. Should it become damaged the drive clutch can be replaced in seconds without tools. The final and exact positioning of the tool head is provided by a shot pin attached to the ram. The Ultimate now includes a case ejector to whisk away your finished round to the included bin. No adjustments are required, and the ejector is unbreakable. The Big Press all-steel compound toggle linkage found on our 50 BMG reloading press sizes the most difficult cases with ease, with sufficient stroke to load the longest magnum cartridges. Ergonomics are excellent with the formed lever and roller handle. The balanced lever design is easy to operate and will not drop and pinch a finger. The finishing touch, a tool rack surrounding the steel tool carrier holds die wrench, ¼ hex wrench, alternate primer arm and Safety Prime. FEATURES: Five stations allow any brand of die be used -- inline bullet feed dies, powder check dies and such. Simple and reliable automatic indexing -- no tools required and never requires adjustment. Stroke and clearance sufficient for largest magnum rifle cases. Uses the same all steel linkage found on our Classic Cast 50 BMG press. Spent primer tube collects dirty, gritty spent primers. All dies securely fastened in the 5-hole turret with Lee Smart Lock bushings. Safety Prime system - simple, reliable and safe with any brand or size of primer. Cartridge changeover in seconds, including primer size with no adjustments. Automatic case ejector reliably whisks away your completed round to the included ammo bin. Press includes combination tool rack, bin bracket, along with free ammo bin. SECIFICATIONS: Maximum cartridge overall length: 3" automatic index | 4" manual index Base material: Steel Columns material: Steel Ram: Steel Ram diameter: Over 1" Linkage: Steel Tool head material: Steel Die size accepted: 7/8" x 14 Number of die mounting holes : 5 Breech Lock Quick Change bushings: Yes, 5 included Priming feature: Yes, no primer brand restrictions Spent primer collection tube: Yes Country of origin: Proudly made in USA
¡Descubre la ULTIMATE TURRET PRESS KIT de LEE PRECISION!
La ULTIMATE TURRET PRESS KIT es la prensa de recarga definitiva que combina potencia y precisión en cada uso. Con un diseño robusto y características innovadoras, esta prensa se destaca en el mercado.
Descripción del Producto
La ULTIMATE TURRET PRESS KIT retiene el potente sistema de enlace Big Press y el soporte circunferencial de la cabeza de herramienta. El soporte perimetral distingue a todas las prensas turrets de Lee de las demás. Además, el sistema de eliminación de cebos a través del vástago mantiene la suciedad y el polvo alejados de la base de acero masivo y del vástago.
La Ultimate reemplaza las características del portaherramientas intercambiable, disponible en posiciones para tres, cuatro, cinco y seis dados. Este portaherramientas está mecanizado con precisión en todas sus superficies y ajustado estrechamente al anillo de soporte de acero que rodea la cabeza de herramienta indexable, con suficiente espacio para permitir un indexado libre y un alineamiento perfecto de los dados.
- Soporte perimetral: Elimina cualquier inclinación del dado y proporciona la mejor precisión posible.
- Cambio rápido de posición: Cada posición de dado es un cambio rápido, gracias al sistema Breech Lock de Lee.
- Facilidad de uso: Cada bajada de la prensa avanza automáticamente el portaherramientas a la siguiente posición.
- Mecanismo de indexación: Tiene solo una parte móvil y está protegido contra sobrecargas, haciéndolo casi indestructible.
- Extractor de cartuchos: Incluye un extractor de cartuchos para deshacerse de tus rondas terminadas, sin necesidad de ajustes.
La Big Press de acero compuesto con enlace de palanca que se encuentra en nuestra prensa de recarga 50 BMG puede manejar los casos más difíciles con facilidad, y tiene suficiente recorrido para cargar los cartuchos magnum más largos. La ergonomía es excelente con la palanca formada y el mango rodante, lo que facilita su operación sin riesgo de pellizcarse los dedos.
Características
- Cinco estaciones permiten usar cualquier marca de dado, incluyendo dados de alimentación de balas en línea y de verificación de pólvora.
- Indexación automática simple y confiable, sin necesidad de herramientas ni ajustes.
- Recorrido y espacio suficiente para los casos de rifle magnum más grandes.
- Tubo de cebos gastados que recoge cebos sucios y arenosos.
- Todos los dados están fijados de forma segura en el turret de 5 agujeros con bujes Lee Smart Lock.
- Sistema Safety Prime: simple, confiable y seguro con cualquier marca o tamaño de cebos.
- Cambio de cartucho en segundos, incluyendo el tamaño del cebos sin ajustes.
- Extractor automático de cartuchos que transporta de manera confiable tu ronda completada al contenedor de municiones incluido.
Especificaciones
- Longitud total máxima del cartucho: 3" indexación automática | 4" indexación manual
- Material de la base: Acero
- Material de las columnas: Acero
- Vástago: Acero
- Diámetro del vástago: Más de 1"
- Enlace: Acero
- Material de la cabeza de herramienta: Acero
- Tamaño de dado aceptado: 7/8" x 14
- Número de agujeros para montaje de dados: 5
- Bucles de cambio rápido Breech Lock: Sí, 5 incluidos
- Característica de cebado: Sí, sin restricciones de marca de cebos
- Tubo de recolección de cebos gastados: Sí
- País de origen: Orgullosamente fabricado en EE. UU.
