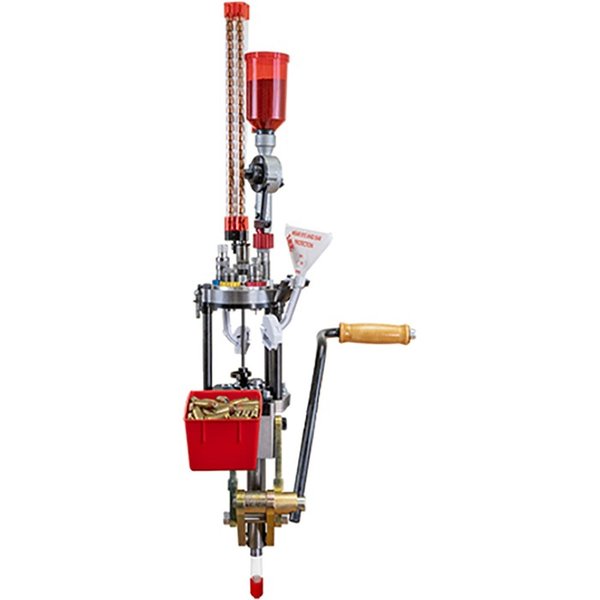

ULTIMATE TURRET PRESS KIT The Ultimate Turret press retains the powerful Big Press linkage and circumferential tool head support. Perimeter support sets all Lee turret press apart from others. Through ram primer disposal keeps grit and grime away from the massive steel base and ram. The Ultimate replaces features changeable tool carrier available in three, four, five and six die positions. The tool carrier is precision machined on all surfaces and closely fitted to the steel support ring that surrounds the indexable tool head, having just enough clearance to allow free indexing and enough radial clearance to allow perfect die alignment. Perimeter support eliminates any die tipping and provides the best possible accuracy. Each die position is a quick change, provided by the Lee Breech lock system. Now you can remove your dies and store them in your fitted die box without disturbing the settings. Tool carrier can be quickly changed by removing three alloy steel socket head bolts, wrench included. Every downstroke of the press automatically advances the carrier to the next tool position. The new index mechanism has only one moving part and is overload protected making it nearly indestructible. Should it become damaged the drive clutch can be replaced in seconds without tools. The final and exact positioning of the tool head is provided by a shot pin attached to the ram. The Ultimate now includes a case ejector to whisk away your finished round to the included bin. No adjustments are required, and the ejector is unbreakable. The Big Press all-steel compound toggle linkage found on our 50 BMG reloading press sizes the most difficult cases with ease, with sufficient stroke to load the longest magnum cartridges. Ergonomics are excellent with the formed lever and roller handle. The balanced lever design is easy to operate and will not drop and pinch a finger. The finishing touch, a tool rack surrounding the steel tool carrier holds die wrench, ¼ hex wrench, alternate primer arm and Safety Prime. FEATURES: Five stations allow any brand of die be used -- inline bullet feed dies, powder check dies and such. Simple and reliable automatic indexing -- no tools required and never requires adjustment. Stroke and clearance sufficient for largest magnum rifle cases. Uses the same all steel linkage found on our Classic Cast 50 BMG press. Spent primer tube collects dirty, gritty spent primers. All dies securely fastened in the 5-hole turret with Lee Smart Lock bushings. Safety Prime system - simple, reliable and safe with any brand or size of primer. Cartridge changeover in seconds, including primer size with no adjustments. Automatic case ejector reliably whisks away your completed round to the included ammo bin. Press includes combination tool rack, bin bracket, along with free ammo bin. SECIFICATIONS: Maximum cartridge overall length: 3" automatic index | 4" manual index Base material: Steel Columns material: Steel Ram: Steel Ram diameter: Over 1" Linkage: Steel Tool head material: Steel Die size accepted: 7/8" x 14 Number of die mounting holes : 5 Breech Lock Quick Change bushings: Yes, 5 included Priming feature: Yes, no primer brand restrictions Spent primer collection tube: Yes Country of origin: Proudly made in USA
¡Descubre la potencia y precisión del Ultimate Turret Press Kit!
El ULTIMATE TURRET PRESS KIT de LEE PRECISION es la herramienta definitiva para recargar tus municiones con facilidad y exactitud. Este kit incluye características innovadoras que lo diferencian de otros prensas en el mercado.
Descripción del Producto
El Ultimate Turret Press retiene el poderoso enlace Big Press y el soporte circumferencial de la cabeza de herramienta. El soporte perimetral es lo que distingue a todas las prensas turret de Lee de las demás. El sistema de eliminación de cebos a través del cilindro mantiene la suciedad y la mugre alejadas de la masiva base de acero y el cilindro.
El Ultimate reemplaza las características del portaherramientas intercambiable, disponible en posiciones de tres, cuatro, cinco y seis dies. El portaherramientas está mecanizado con precisión en todas sus superficies y ajustado estrechamente al anillo de soporte de acero que rodea la cabeza de herramienta indexable, teniendo suficiente espacio para permitir un indexado libre y un alineamiento perfecto de los dies.
El soporte perimetral elimina cualquier inclinación del die y proporciona la mejor precisión posible. Cada posición de die es de cambio rápido, gracias al sistema Breech Lock de Lee. Ahora puedes quitar tus dies y guardarlos en tu caja de dies sin alterar los ajustes. El portaherramientas se puede cambiar rápidamente al quitar tres tornillos de cabeza hexagonal de acero aleado, ¡la llave está incluida!
Cada bajada del prensa avanza automáticamente el portaherramientas a la siguiente posición. El nuevo mecanismo de indexación tiene solo una parte móvil y está protegido contra sobrecargas, lo que lo hace casi indestructible. Si se daña, el embrague de transmisión se puede reemplazar en segundos sin herramientas. La posición final y exacta de la cabeza de herramienta es proporcionada por un pasador de disparo adjunto al cilindro. El Ultimate ahora incluye un expulsor de cartuchos que lleva tu ronda terminada al contenedor incluido. No se requieren ajustes, y el expulsor es irrompible.
El enlace de palanca compuesta de acero todo encontrado en nuestra prensa de recarga 50 BMG maneja los casos más difíciles con facilidad, con suficiente recorrido para cargar los cartuchos magnum más largos. La ergonomía es excelente con la palanca formada y el mango rodante. El diseño equilibrado de la palanca es fácil de operar y no caerá ni pellizcará un dedo.
Características
- Cinco estaciones que permiten usar cualquier marca de die: dies de alimentación de balas en línea, dies de verificación de pólvora, entre otros.
- Indexación automática simple y confiable: no se requieren herramientas y nunca necesita ajustes.
- Recorrido y espacio suficiente para los casos de rifle magnum más grandes.
- Utiliza el mismo enlace de acero que se encuentra en nuestra prensa Classic Cast 50 BMG.
- Tubo de cebos gastados que recoge cebos sucios y arenosos.
- Todos los dies están asegurados en el turret de 5 agujeros con bujes Lee Smart Lock.
- Sistema Safety Prime: simple, confiable y seguro con cualquier marca o tamaño de cebos.
- Cambio de cartuchos en segundos, incluyendo el tamaño del cebos sin ajustes.
- El expulsor automático de cartuchos lleva tu ronda completada al contenedor de municiones incluido.
Especificaciones
- Longitud máxima total del cartucho: 3" index automático | 4" index manual
- Material de la base: Acero
- Material de las columnas: Acero
- Cilindro: Acero
- Diámetro del cilindro: Más de 1"
- Enlace: Acero
- Material de la cabeza de herramienta: Acero
- Tamaño de die aceptado: 7/8" x 14
- Número de agujeros de montaje de die: 5
- Bujes de cambio rápido Breech Lock: Sí, 5 incluidos
- Función de cebado: Sí, sin restricciones de marca de cebos
- Tubo de recolección de cebos gastados: Sí
- País de origen: Orgullosamente hecho en EE. UU.
